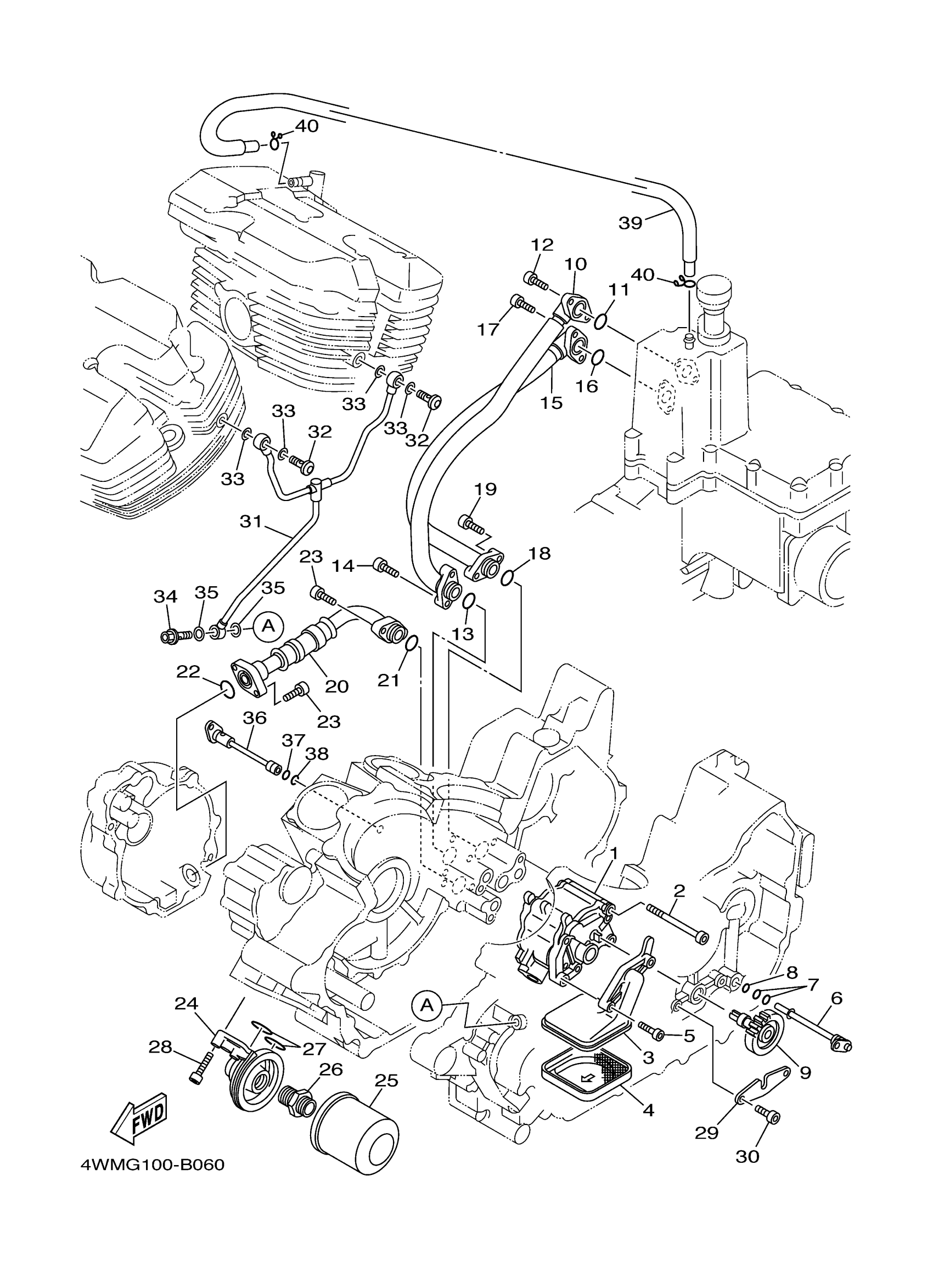

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5PX-13300-03-00

Unavailable

2

BOLT,SOCKET

91317-06080-00

Unavailable

3

HOUSING, STRAINER

4WM-13412-00-00

Unavailable

4

STRAINER, OIL

4WM-13411-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

6

PIPE, DELIVERY 2

4WM-13171-00-00

Unavailable

7

O-RING (1J7)

93210-09350-00

$7.49

8

O-RING(26H)

93210-06667-00

$7.49

9

DRIVEN GEAR ASSY

5YU-13360-00-00

$125.99

10

PIPE, OIL 1

4WM-13416-01-00

Unavailable

11

O-RING (26H)

93210-16629-00

$7.49

12

BOLT,SOCKET

91317-06020-00

Unavailable

13

O-RING (341)

93210-15171-00

$7.49

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

PIPE, OIL 2

4WM-13418-00-00

Unavailable

16

O-RING (26H)

93210-16629-00

$7.49

17

BOLT,SOCKET

91317-06020-00

Unavailable

18

O-RING (341)

93210-15171-00

$7.49

19

BOLT,SOCKET HEAD

91314-06020-00

$1.49

20

PIPE, DELIVERY 1

5PX-13161-00-00

Unavailable

21

O-RING(36Y)

93210-13657-00

Unavailable

22

O-RING (26H)

93210-16629-00

$7.49

23

BOLT,SOCKET HEAD

91314-06020-00

$1.49

24

PLATE, ADAPTOR

5MB-13461-00-00

Unavailable

25

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

Unavailable

26

BOLT, UNION

90401-20007-00

Unavailable

27

O-RING (4V2)

93210-23326-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

29

PLATE, STOPPER 1

4WM-1357N-01-00

Unavailable

30

BOLT,SOCKET

91317-06016-00

Unavailable

31

OIL PIPE COMP. 1

4WM-13405-00-00

Unavailable

32

BOLT, UNION

90401-10175-00

Unavailable

33

GASKET (5R6)

90430-10171-00

Unavailable

34

BOLT, UNION

90401-08176-00

Unavailable

35

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

36

PIPE, DELIVERY 3

4WM-13181-00-00

Unavailable

37

O-RING

93210-08003-00

Unavailable

38

O-RING (11M)

93210-07540-00

Unavailable

39

HOSE, OIL 1

4WM-13464-00-00

Unavailable

40

CLIP

90467-100A1-00

Unavailable
