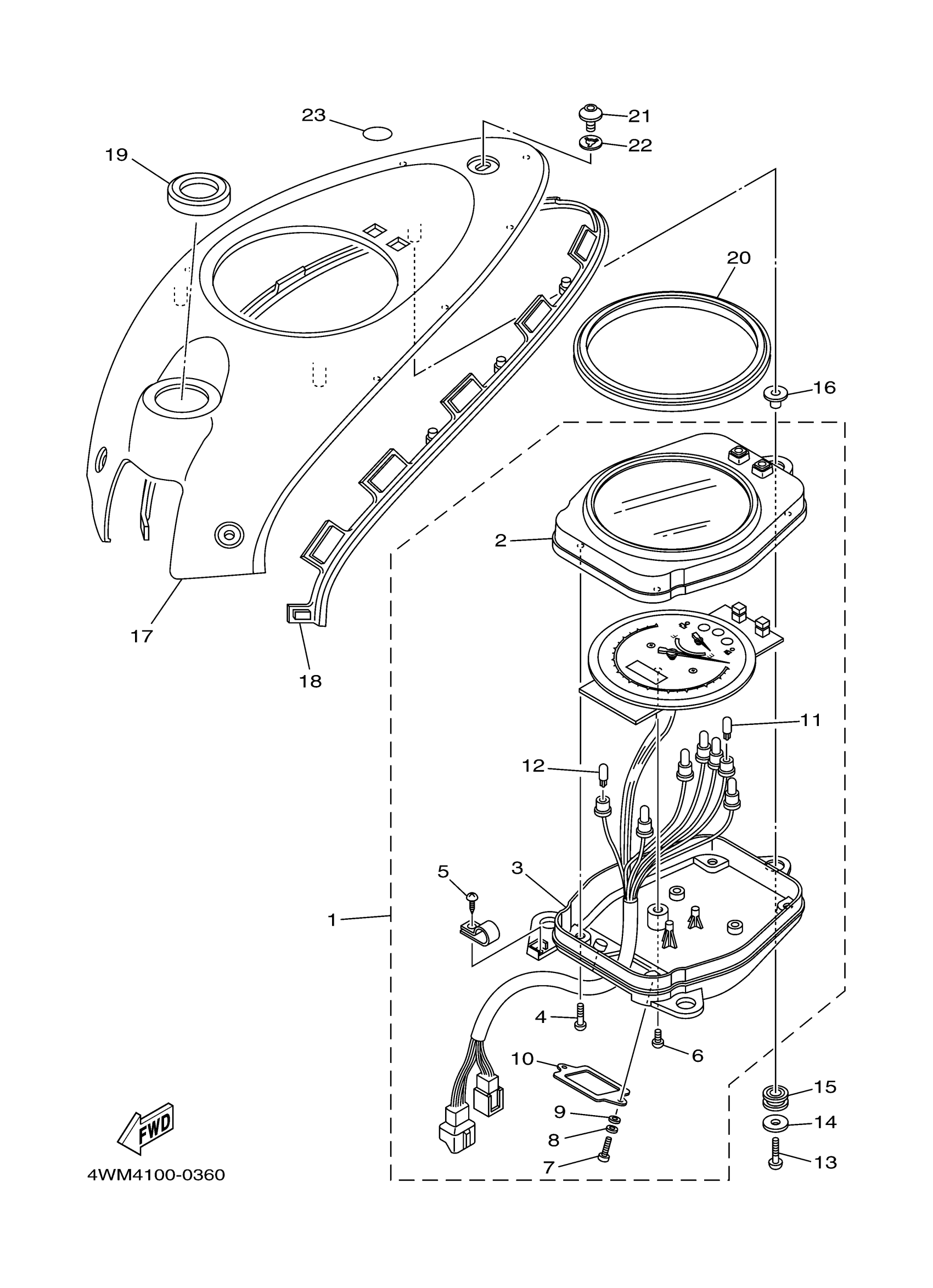

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

5MB-83500-50-00

Unavailable

2

CASE, METER UPPER

4WM-8353E-01-00

Unavailable

3

CASE, METER LOWER

4WM-8353F-02-00

Unavailable

4

SCREW, TRUSS TAP.

97707-40016-00

$8.49

5

SCREW, TAPPING(71E)

90164-04023-00

Unavailable

6

SCREW, TRUSS TAP.

97707-40010-00

$0.27

7

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

8

WASHER, SPRING

92990-03100-00

$8.49

9

WASHER(3SX)

92907-03600-00

$8.49

10

BRACKET, METER

4WM-83519-00-00

$7.99

11

BULB (T3.4 12V-80MA)

4WM-83517-10-00

$13.49

12

BULB

5JA-83517-00-00

$15.49

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

15

DAMPER

4WM-83513-00-00

$7.99

16

COLLAR(82M)

90387-050T5-00

Unavailable

17

COVER, METER

4WM-83559-00-00

Unavailable

18

MOLE 1

4WM-28345-01-00

Unavailable

19

MOLE 2

4WM-28346-00-00

Unavailable

20

MOLE 3

4WM-28347-00-00

Unavailable

21

SCREW(3XV)

90149-06298-00

Unavailable

22

PLATE

4U5-2176E-00-00

Unavailable

23

EMBLEM

4TR-2413B-00-00

Unavailable
