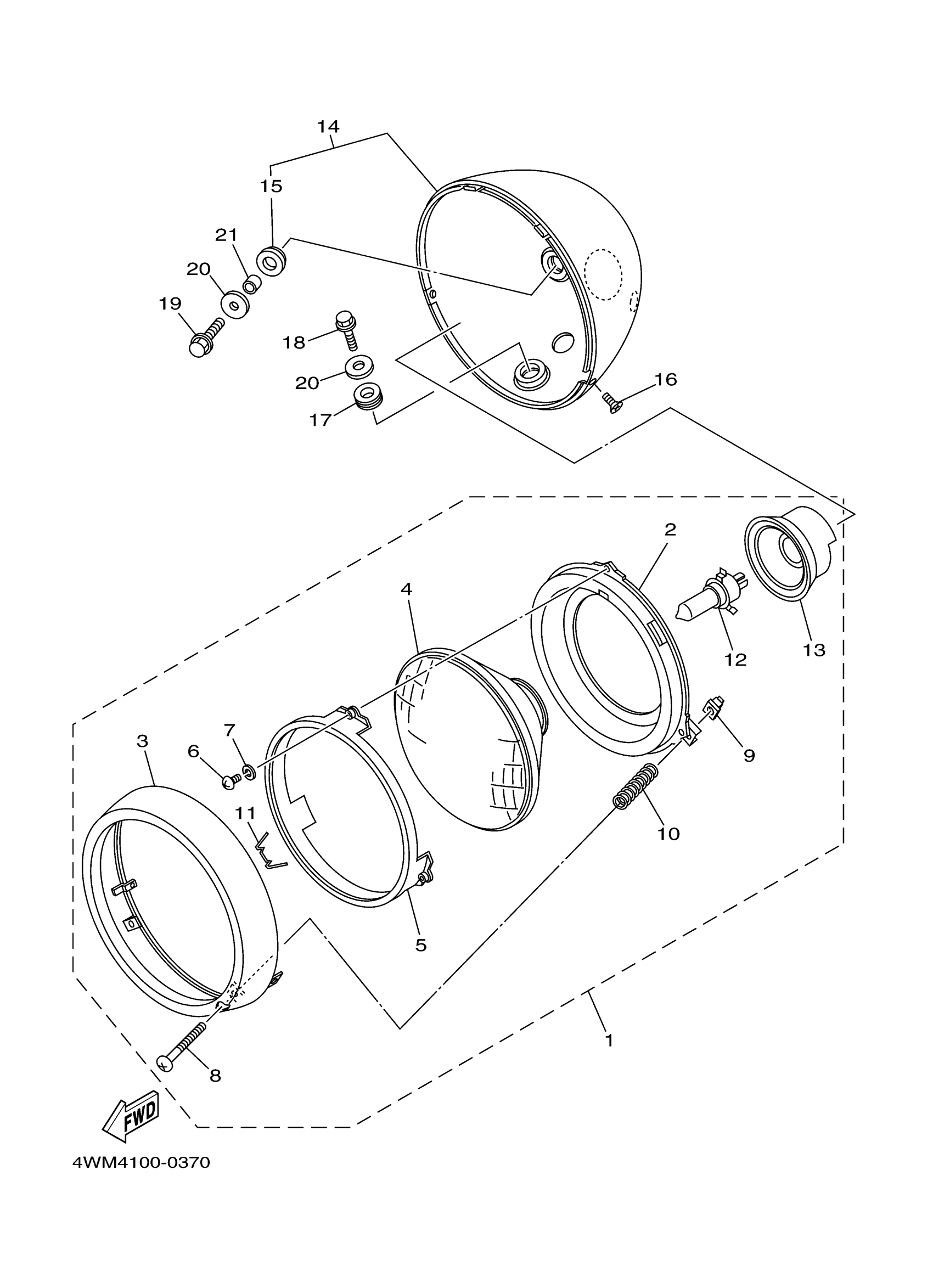

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

4WM-84310-00-00

Unavailable

2

. RING, MOUNTING

4WM-84394-00-00

Unavailable

3

RIM, HEADLIGHT

5VN-84315-00-00

$245.99

4

LENS ASSY

4NK-84320-00-00

$216.99

5

RING, RETAINING

2F9-84395-00-00

$58.99

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

SCREW 214841316100

90157-04001-00

$8.49

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SPRING, ADJUST

341-84332-60-00

$9.99

11

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

$7.99

12

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

13

COVER, SOCKET

3SX-84397-00-00

Unavailable

14

BODY ASSY

4WM-84330-00-00

$349.99

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

17

GROMMET (2N3)

90480-16233-00

Unavailable

18

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

20

WASHER, PLATE

90201-06086-00

Unavailable

21

COLLAR(4NK)

90387-0610J-00

Unavailable
