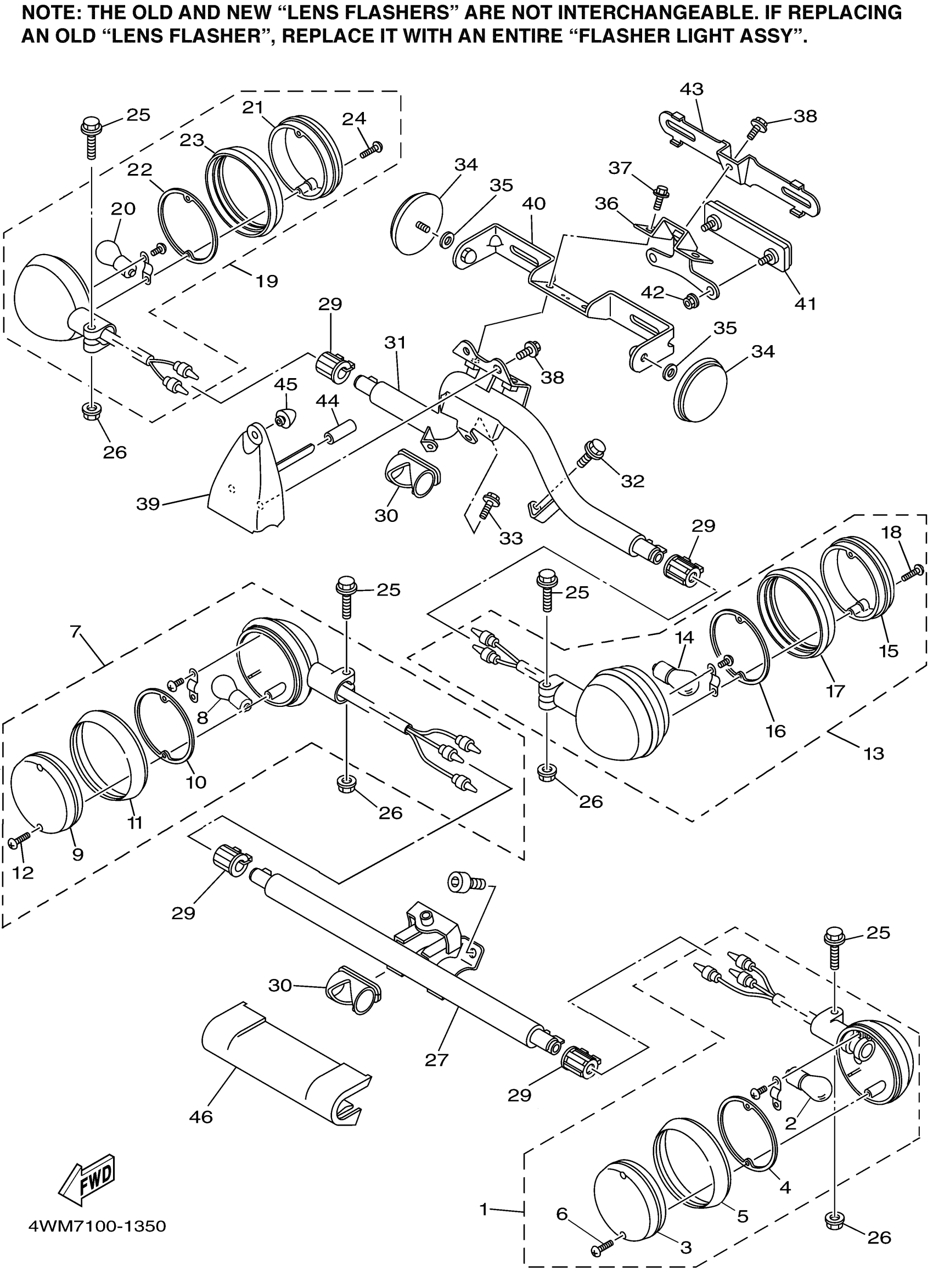

Yamaha XV1600ALERC (ROAD STAR LIMITED EDITION CA) 4WML 2003 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4WM-83310-01-00

$118.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-10-00

$15.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

LENS, RIM

1D6-83363-00-00

$28.99

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

4WM-83320-01-00

$118.99

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

9

LENS, FLASHER

42X-83312-20-00

$15.49

10

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

11

LENS, RIM

1D6-83363-10-00

$28.99

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

$131.99

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

42X-83312-20-00

$15.49

16

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

17

LENS, RIM

1D6-83363-10-00

$28.99

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

FLASHER LIGHT ASSY 2

42X-83340-K1-00

Unavailable

20

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

21

LENS, FLASHER

42X-83312-10-00

$15.49

22

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

23

LENS, RIM

1D6-83363-00-00

$28.99

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

26

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

27

STAY, 8

4WM-2317V-00-00

Unavailable

28

BOLT,SOCKET

91314-08016-00

Unavailable

29

DAMPER, FLASHER 1

4NK-83321-00-00

Unavailable

30

PLUG, BLIND

4NK-83345-00-00

Unavailable

31

STAY, 9

4WM-2317W-10-00

Unavailable

32

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

33

BOLT, WITH WASHER(4ES)

90119-06217-00

Unavailable

34

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

35

WASHER PLATE 829771780000

90201-05033-00

Unavailable

36

BRACKET, REFLECTOR 1

4WM-2113J-00-00

Unavailable

37

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

38

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

39

BRACKET

5KS-84703-00-00

Unavailable

40

BRACKET, LICENSE

4WM-84751-00-00

Unavailable

41

REAR REFLECTOR ASSY

8Y7-85130-00-00

Unavailable

42

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

43

BRACKET, LICENSE

4WM-21685-10-00

Unavailable

44

HOSE (583)

90446-07114-00

Unavailable

45

DAMPER 2

42U-21639-00-00

Unavailable

46

COVER, OUTER 1

4NK-23122-01-00

Unavailable
