Description

Price

1

SPEEDOMETER ASSY

4WM-83500-01-00

Unavailable

2

SPEEDOMETER LENS KIT

99999-03215-00

Unavailable

3

. CASE, METER LOWER

4WM-8353F-00-00

Unavailable

4

SCREW, TRUSS TAP.

97707-40016-00

$8.49

5

SCREW, TAPPING(71E)

90164-04023-00

Unavailable

6

SCREW, TRUSS TAP.

97707-40010-00

$0.27

7

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

8

WASHER, SPRING

92990-03100-00

$8.49

9

WASHER(3SX)

92907-03600-00

$8.49

10

BRACKET, METER

4WM-83519-00-00

$7.99

11

SCREW, PAN HEAD

98517-05020-00

$4.25

12

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

13

DAMPER

4WM-83513-00-00

$7.99

14

COLLAR(82M)

90387-050T5-00

$7.49

15

COVER, METER

4WM-83559-00-00

Unavailable

16

MOLE 1

4WM-28345-01-00

Unavailable

17

MOLE 2

4WM-28346-00-00

Unavailable

18

MOLE 3

4WM-28347-00-00

Unavailable

19

SCREW(1XL)

90149-06264-00

Unavailable

20

PLATE

4U5-2176E-00-00

Unavailable

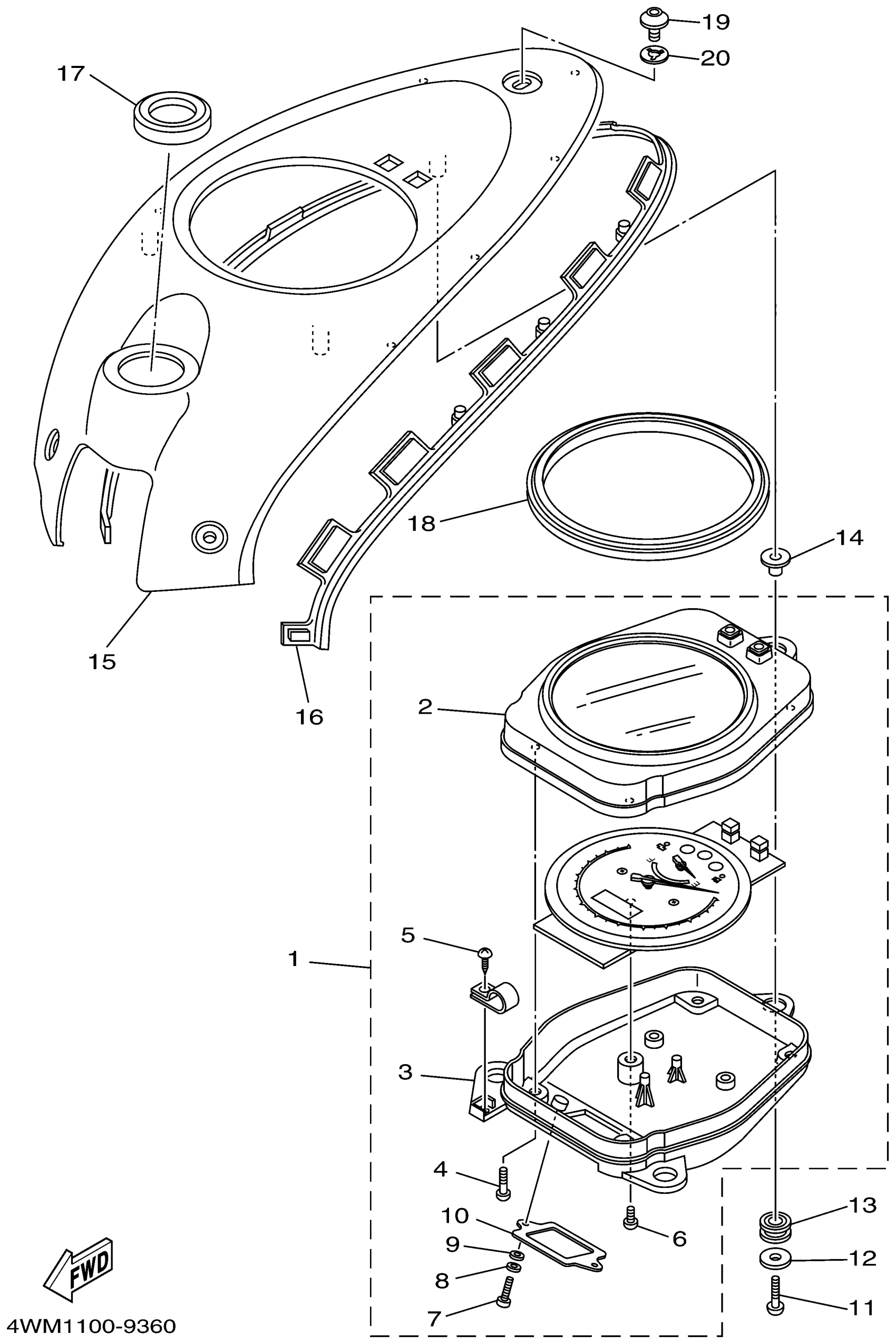

Yamaha XV1600ALC (ROAD STAR CA) 4WM2 1999 METER Diagram

SPEEDOMETER ASSY

SPEEDOMETER LENS KIT

. CASE, METER LOWER

SCREW, TRUSS TAP.

SCREW, TAPPING(71E)

SCREW, TRUSS TAP.

SCREW, PAN HEAD(3AC)

WASHER, SPRING

WASHER(3SX)

BRACKET, METER

SCREW, PAN HEAD

WASHER, PLATE (4H7)

DAMPER

COLLAR(82M)

COVER, METER

MOLE 1

MOLE 2

MOLE 3

SCREW(1XL)

PLATE
