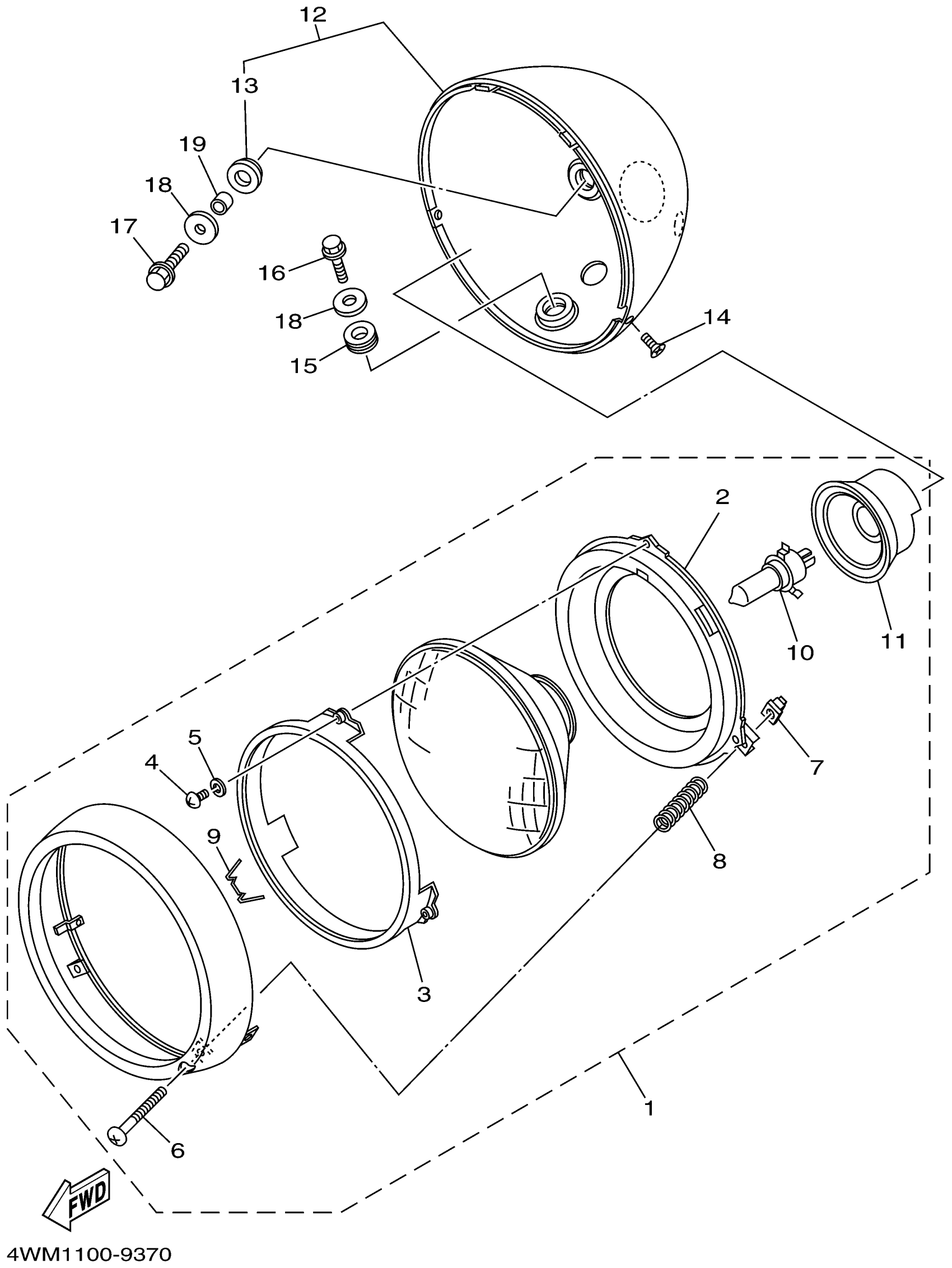

Yamaha XV1600ALC (ROAD STAR CA) 4WM2 1999 HEADLIGHT Diagram

HEADLIGHT UNIT ASSY

4WM-84310-00-00

Unavailable

RING, MOUNTING

4NK-84394-00-00

$87.99

RING, RETAINING

2F9-84395-00-00

$58.99

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

SCREW 214841316100

90157-04001-00

$8.49

NUT, ADJUST

198-84334-60-00

$7.99

SPRING, ADJUST

341-84332-60-00

$9.99

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

$7.99

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

COVER, SOCKET

3SX-84397-00-00

Unavailable

BODY ASSY

4WM-84330-00-00

$349.99

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

GROMMET (2N3)

90480-16233-00

$8.49

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

WASHER, PLATE

90201-06086-00

Unavailable

COLLAR(4NK)

90387-0610J-00

Unavailable
