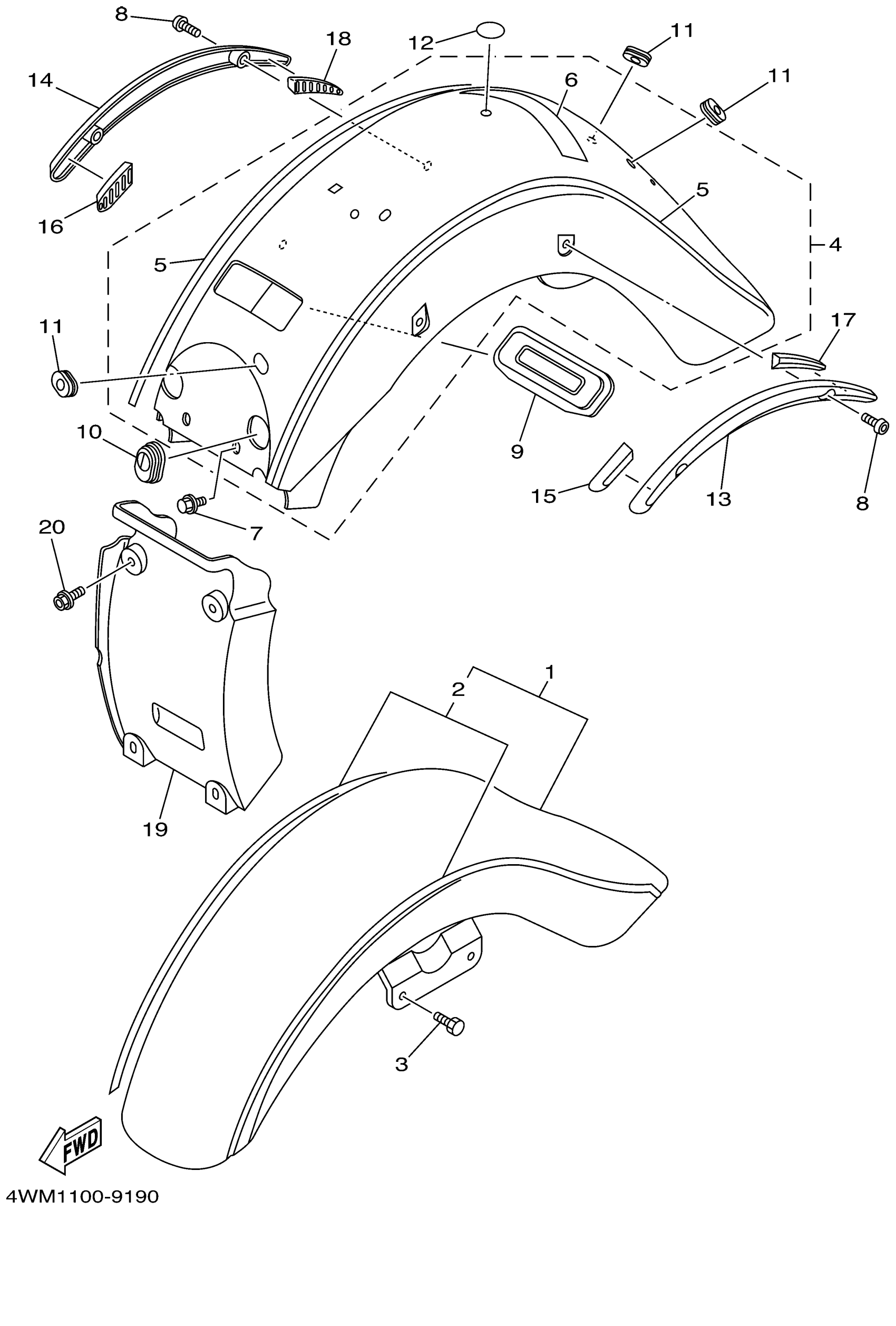

Yamaha XV1600ALC (ROAD STAR CA) 4WM2 1999 FENDER Diagram
#
1
FRONT FENDER ASSY
4WM-Y2150-00-33
Unavailable
1
FRONT FENDER ASSEMBLY (BRIGHT CHERRY RED) (CERAMIC IVORY)
4WM-Y2150-10-0X
Unavailable
1
FRONT FENDER ASSEMBLY (NEW PEARL WHITE) (VERY DARK BLUE METALLIC 9)
4WM-Y2150-20-1X
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
4WM-21570-00-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (BRIGHT CHERRY RED)
4WM-21570-10-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (VERY DARK BLUE METALLIC 9)
4WM-21570-20-00
Unavailable
4
REAR FENDER C0MP.
99999-03398-00
Unavailable
4
REAR FENDER COMP.
99999-03412-00
Unavailable
4
REAR FENDER COMP.
99999-03413-00
Unavailable
5
. GRAPHIC SET, REAR FENDER (YAMAHA BLACK)
4WM-2165A-00-00
Unavailable
5
. GRAPHIC SET, REAR FENDER (BRIGHT CHERRY RED)
4WM-2165A-10-00
Unavailable
5
. GRAPHIC SET, REAR FENDER (VERY DARK BLUE METALLIC 9)
4WM-2165A-20-00
Unavailable
7
BOLT, WITH WASHER
90119-06152-00
Unavailable
8
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
9
DAMPER
4WM-21649-00-00
Unavailable
10
DAMPER 1
4WM-21638-00-00
Unavailable
11
GROMMET (438)
90480-15061-00
Unavailable
12
SEAL 2
4NK-21735-00-00
Unavailable
13
STAY 1
4WM-2164F-00-00
Unavailable
14
STAY 2
4WM-2164G-00-00
Unavailable
15
DAMPER 1
4WM-21541-00-00
Unavailable
16
DAMPER 2
4WM-21542-00-00
Unavailable
17
DAMPER
4WM-2174X-00-00
Unavailable
18
DAMPER
4WM-2174Y-00-00
Unavailable
19
GUARD, MUD (YAMAHA BLACK)
4WM-21629-00-33
Unavailable
19
GUARD, MUD (BRIGHT CHERRY RED)
4WM-21629-00-FW
Unavailable
19
GUARD, MUD
4WM-21629-00-Y9
Unavailable
20
BOLT, WITH WASHER
90119-06226-00
Unavailable
