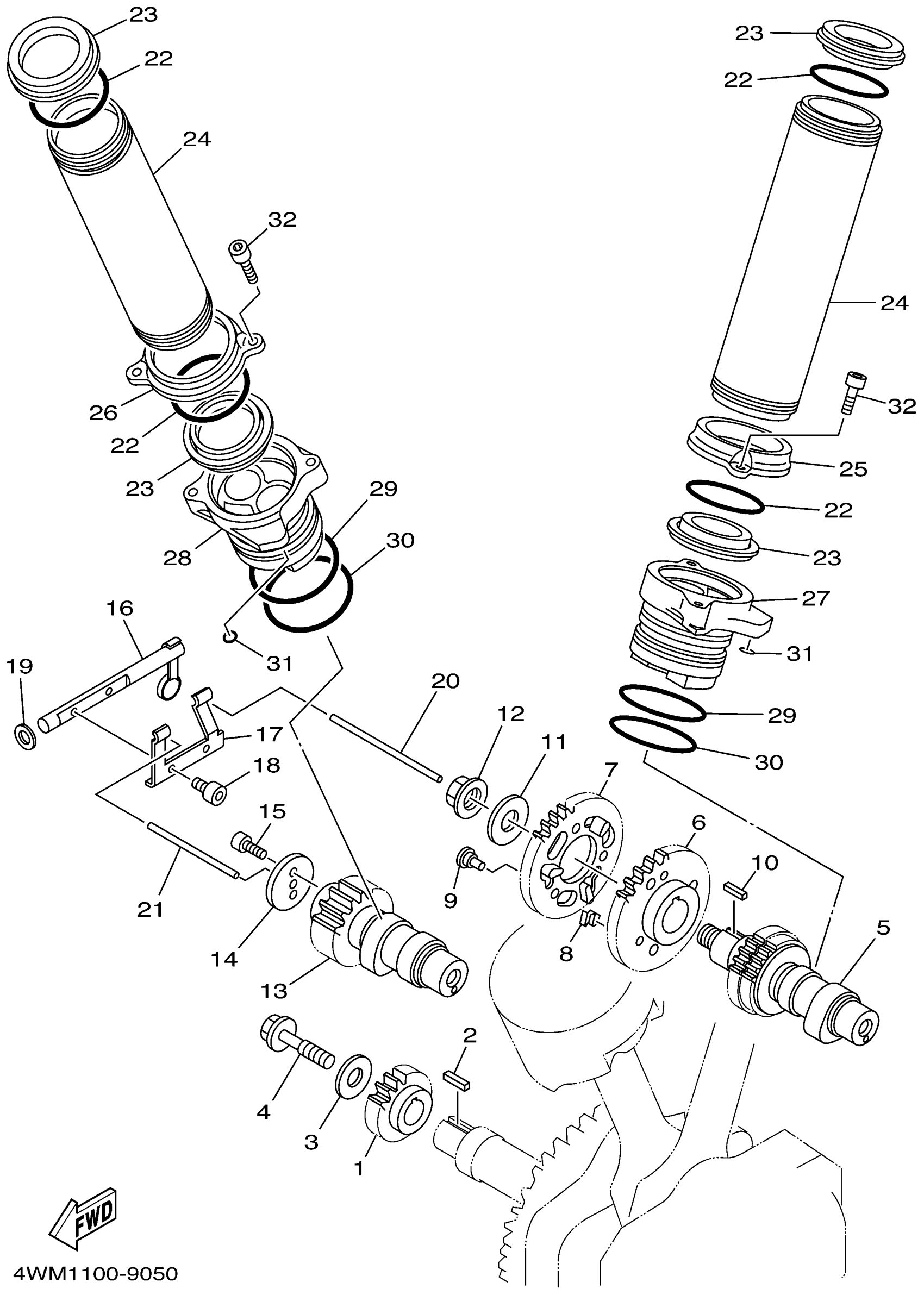

Yamaha XV1600ALC (ROAD STAR CA) 4WM2 1999 CAMSHAFT CHAIN Diagram

#

Description
Price

1

GEAR, BREAKER DRIVE

4WM-11534-00-00

Unavailable

2

KEY, STRAIGHT (4A0)

90282-03039-00

$11.49

3

WASHER, PLATE (17K)

90201-106F2-00

$10.49

4

BOLT (30X)

90105-10290-00

Unavailable

5

CAM SHAFT ASSY

4WM-W1211-03-00

$539.99

6

DRIVEN GEAR ASSY

5YU-115A0-00-00

Unavailable

7

DRIVEN GEAR ASSY

5YU-115A0-00-00

Unavailable

8

ABSORBER

4WM-11532-00-00

Unavailable

9

PLUG

4WM-11469-01-00

Unavailable

10

KEY STRAIGHT 383124680000

90282-03012-00

$13.49

11

WASHER, PLATE (25G)

90201-140H8-00

Unavailable

12

NUT(22F)

90179-14469-00

Unavailable

13

CAM SHAFT ASSY

4WM-W1211-03-00

$539.99

14

PLATE

4WM-11951-00-00

$7.99

15

BOLT

91312-05010-00

$5.60

16

CONNECTOR, DECOMPRESSION

4WM-12293-00-00

Unavailable

17

LEVER, DECOMPRESSION

4WM-12282-00-00

Unavailable

18

BOLT,SOCKET

91317-04008-00

Unavailable

19

WASHER (1T1)

90201-08649-00

Unavailable

20

ROD, DECOMPRESSION

4WM-12298-00-00

Unavailable

21

PIPE, DECOMPRESSION

4WM-12294-00-00

Unavailable

22

O-RING(4MX)

93210-472A9-00

Unavailable

23

SUPPORT,ROCKER ARM

4WM-12152-00-00

Unavailable

24

GUIDE, PUSH ROD

4WM-12155-01-00

Unavailable

25

CAP, TENSIONER CASE

4WM-12215-00-00

Unavailable

26

CAP, CAMSHAFT 1

4WM-12173-00-00

Unavailable

27

HOUSING

4WM-12271-00-00

Unavailable

28

HOUSING

4WM-12272-00-00

Unavailable

29

O-RING (341)

93210-54175-00

Unavailable

30

O-RING (4X7)

93210-54452-00

Unavailable

31

O-RING (2H7)

93210-48364-00

Unavailable

32

BOLT, SOCKET

91314-06035-00

Unavailable
