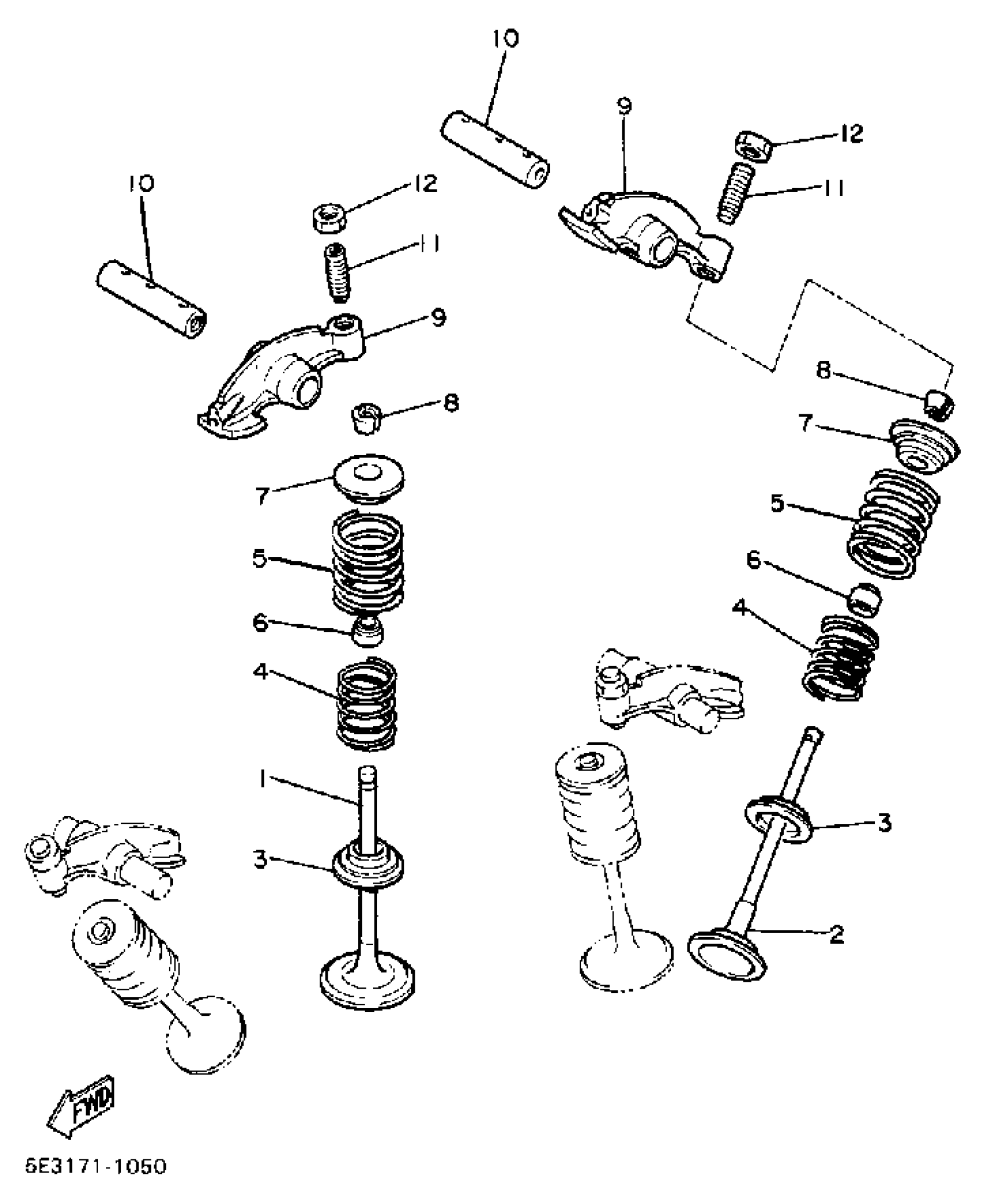

Yamaha XV1100UC (VIRAGO 1100 CA) 1988 VALVE Diagram

VALVE, INTAKE

2J2-12111-01-00

$56.31

VALVE, EXHAUST

5A8-12121-00-00

$85.21

SEAT, VALVE SPRING

4X7-12116-00-00

$11.48

SPRING, VALVE INNER

1TA-12113-00-00

Unavailable

SPRING, VALVE OUTER

1TA-12114-00-00

Unavailable

SEAL, VALVE STEM OIL

341-12119-02-00

$13.26

RETAINER, VALVE SPRING

4X7-12117-00-00

$28.64

COTTER, VALVE

4X7-12118-00-00

$6.15

ARM, VALVE ROCKER

42X-12151-00-00

$46.67

SHAFT, ROCKER 2

4X7-12156-02-00

$14.29

SCREW, VALVE ADJUSTING

4X7-12159-00-00

Unavailable

NUT, HEXAGON

90170-08173-00

$6.26
