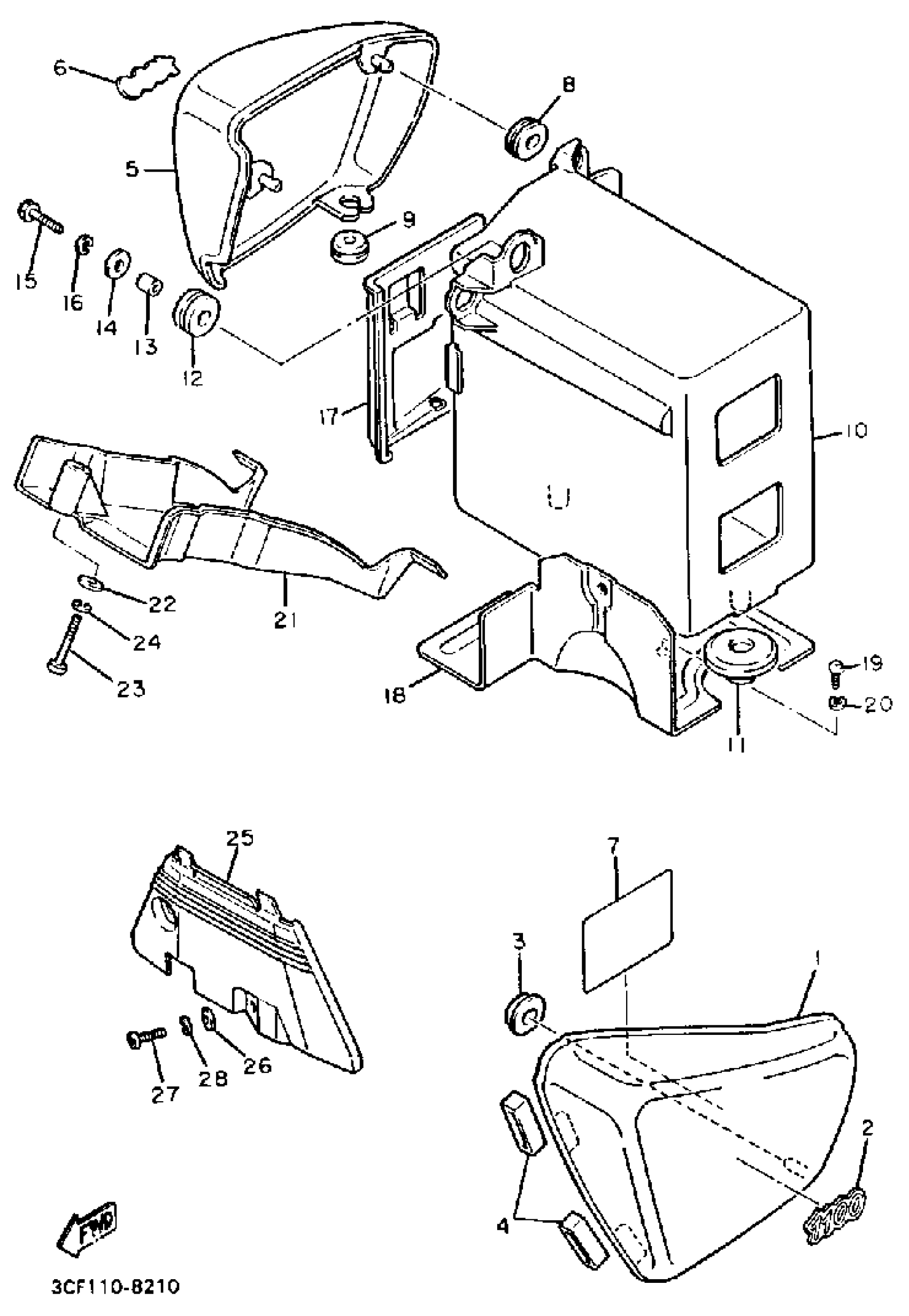

Yamaha XV1100UC (VIRAGO 1100 CA) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (MIYABI MAROON)

42X-21711-00-JY

Unavailable

2

EMBLEM 1

3CF-21781-00-00

Unavailable

3

GROMMET(41Y)

90480-01401-00

$8.49

4

DAMPER, SIDE COVER

466-21717-00-00

$10.99

5

COVER, SIDE 2 (MIYABI MAROON)

42X-21721-00-JY

Unavailable

6

EMBLEM 1

3CF-21781-00-00

Unavailable

7

PLATE, SPEC

3CF-21683-80-00

Unavailable

7

PLATE, SPECIFICATIO

(3CG-21687-80-00)

Unavailable

8

GROMMET(41Y)

90480-01401-00

$8.49

9

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

10

BOX, TOOL

42X-21171-00-00

Unavailable

11

GROMMET(42X)

90480-20384-00

$5.60

12

GROMMET (2N3)

90480-16233-00

$8.49

13

UNAVAILABLE IN PRICE BOOK

90387-06A70-0

Unavailable

14

WASHER, PLATE

90201-06380-00

$0.60

15

BOLT, HEXAGON

97017-06020-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

LID

42X-28185-00-00

Unavailable

18

COVER

42X-2172W-02-00

Unavailable

19

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

PLATE

42X-2176E-00-00

Unavailable

22

WASHER, PLATE

90201-06049-00

Unavailable

23

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

COVER

42X-2117F-00-00

Unavailable

26

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

27

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

28

WASHER, SPRING

92907-06100-00

Unavailable
