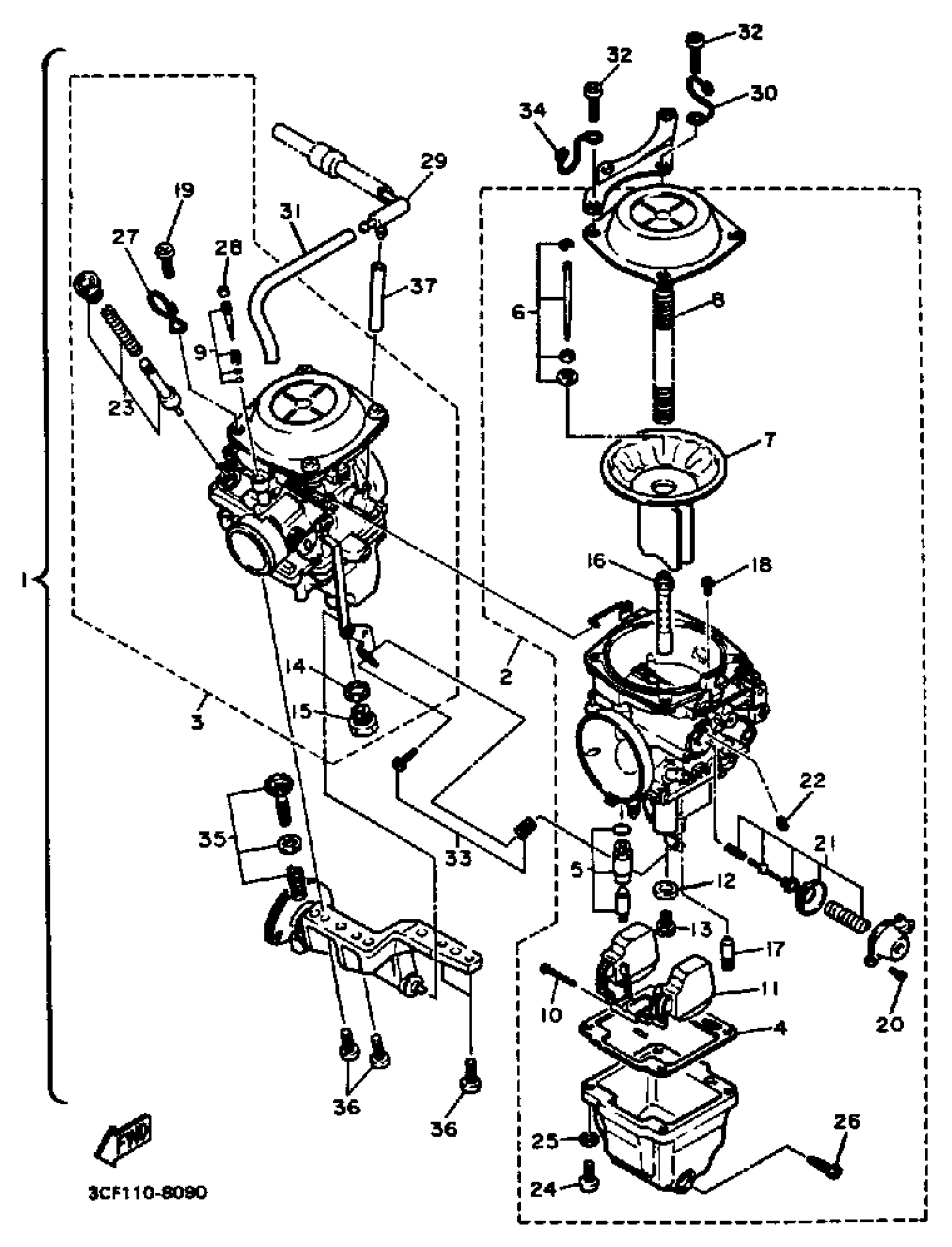

Yamaha XV1100UC (VIRAGO 1100 CA) 1988 CARBURETOR CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

(3CG-14900-00-00)

Unavailable

2

. CARBURETOR ASSEMBLY 1

3CG-14901-01-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

3CG-14902-01-00

Unavailable

4

GASKET, FLOAT CHAMBER

3CF-14984-01-00

Unavailable

5

NEEDLE VALVE SET

3CF-14107-15-00

$79.99

6

NEEDLE SET

3CF-1490J-00-00

$31.99

7

DIAPHRAGM ASSY

3CF-14940-00-00

Unavailable

8

SPRING, DIAPHRAGM

(3CF-14933-00-00)

Unavailable

9

PILOT SCREW SET

12R-14105-00-00

$17.49

10

PIN, FLOAT

537-14186-00-00

$7.99

11

FLOAT

2VA-14185-00-00

$97.99

12

WASHER,MAIN JET

137-14153-00-00

$7.99

13

.. SCREW

3CF-14991-00-00

Unavailable

14

WASHER

256-14954-00-00

Unavailable

15

JET, MAIN (#125)

620-14231-25-A0

$11.99

15

JET,MAIN #122.5

620-1423A-75-00

Unavailable

16

NOZZLE, MAIN

3CF-14141-93-00

Unavailable

17

JET, PILOT (# 40)

4G0-14142-40-00

Unavailable

18

JET, MAIN (# 60)

3G2-14231-12-00

Unavailable

19

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

.. DIAPHRAGM SET 5

3CF-1490H-00-00

Unavailable

22

JET, MAIN (#140)

1HX-14231-28-00

Unavailable

23

STARTER SET

3CF-1410A-00-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

PLUG, DRAIN

12R-14191-00-00

Unavailable

27

CLIP

(2JU-14937-00-00)

Unavailable

28

CAP

3F9-14118-00-00

Unavailable

29

NIPPLE

(3CF-14251-00-00)

Unavailable

30

CLIP

(3CF-14937-00-00)

Unavailable

31

PIPE,AIRVENT

3CG-14197-00-00

Unavailable

32

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

33

STOP SCREW SET

(3CF-1490K-00-00)

Unavailable

34

CLIP

(3CF-14919-00-00)

Unavailable

35

THROTTLE SCREW SET

3CF-14103-01-00

Unavailable

36

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

37

PIPE

(3CF-14197-00-00)

Unavailable
