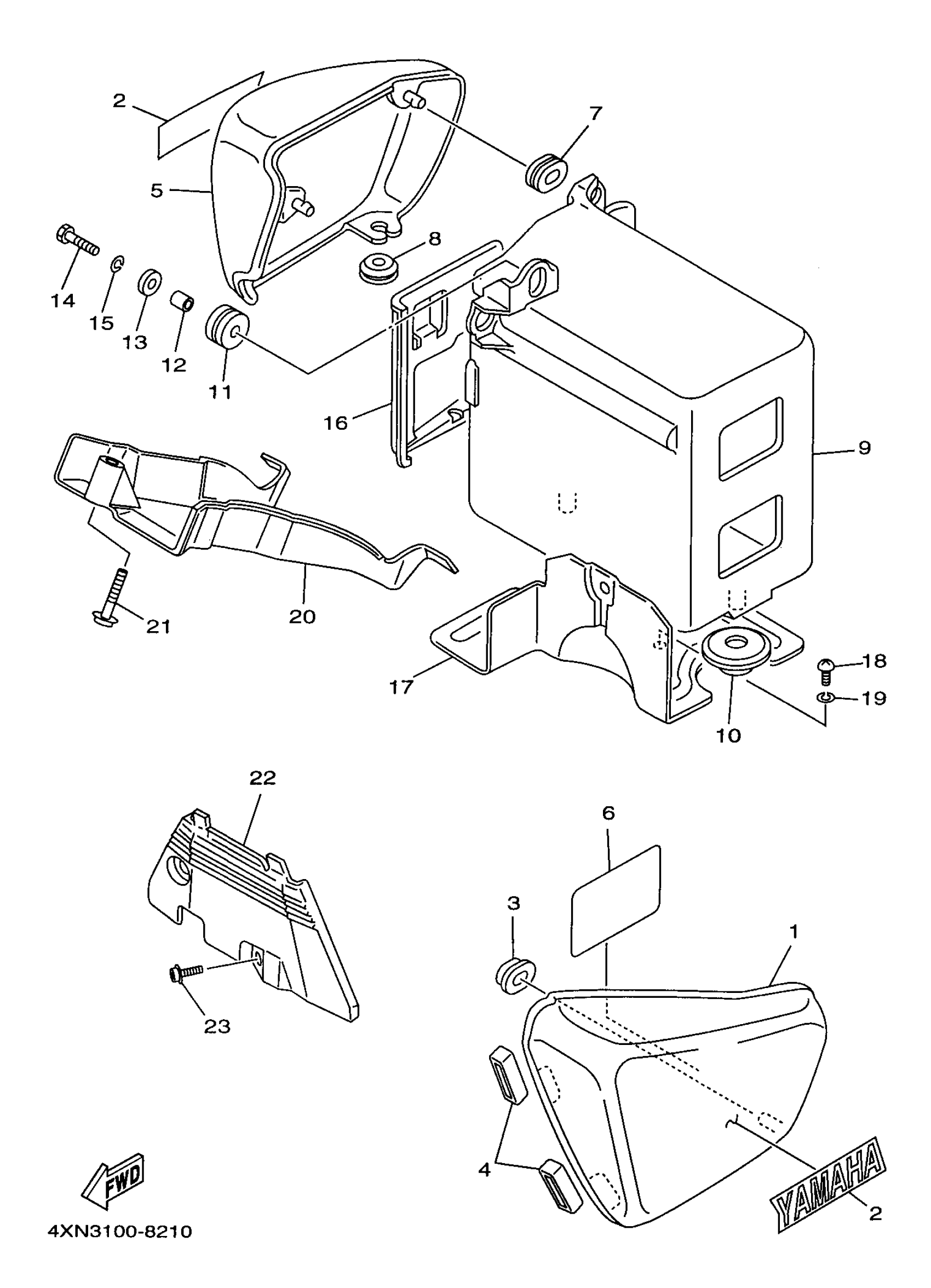

Yamaha XV1100SKC (VIRAGO 1100 SPECIAL CA) 1998 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 1 (MIYABI MAROON)
42X-21711-00-JY
Unavailable
5
COVER, SIDE 2 (MIYABI MAROON)
42X-21721-00-JY
Unavailable
6
PLATE, EPA 2(CALIF
3JK-2179R-91-00
Unavailable
6
PLATE, EPA 1(NON C
3JK-2179V-91-00
Unavailable
9
BOX, TOOL
42X-21171-00-00
Unavailable
10
GROMMET(42X)
90480-20384-00
Unavailable
11
GROMMET (2N3)
90480-16233-00
Unavailable
12
COLLAR
90387-06113-00
Unavailable
13
WASHER, PLATE
90201-06380-00
Unavailable
14
BOLT, HEXAGON
97017-06020-00
Unavailable
15
WASHER, SPRING
92907-06100-00
Unavailable
16
LID
42X-28185-00-00
Unavailable
17
COVER
42X-2172W-02-00
Unavailable
18
SCREW, PAN
98507-06010-00
Unavailable
19
WASHER, SPRING
92907-06100-00
Unavailable
20
PLATE
42X-2176E-00-00
Unavailable
21
SCREW, WITH WASHER
90159-06110-00
Unavailable
22
COVER
42X-2117F-00-00
Unavailable
23
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
