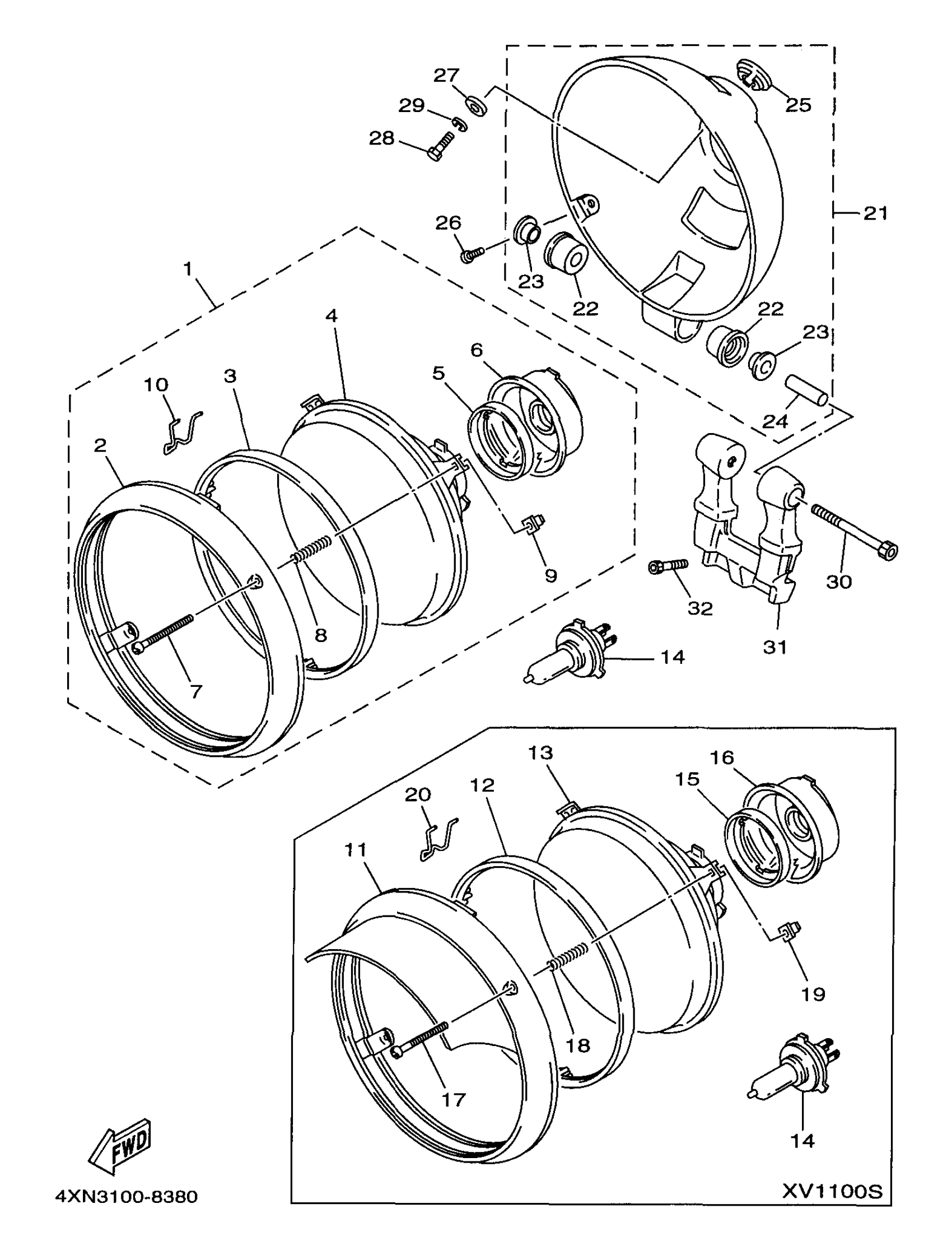

Yamaha XV1100SKC (VIRAGO 1100 SPECIAL CA) 1998 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

42X-84303-A1-00

Unavailable

2

RIM, HEADLIGHT

42X-84315-01-00

$122.99

3

RING, RETAINING

5Y3-84395-00-00

Unavailable

4

. LENS ASSEMBLY

42C-84321-A0-00

Unavailable

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$30.99

7

SCREW 214841316100

90157-04001-00

$8.49

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SPRING, SET

42X-84124-60-00

$6.99

11

RIM, HEADLIGHT

3JK-84315-00-00

Unavailable

12

RING, RETAINING

5Y3-84395-00-00

Unavailable

13

LENS, HEADLIGHT

42X-84321-A0-00

$121.99

14

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

15

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

16

COVER, SOCKET

2F9-84397-01-00

$30.99

17

SCREW 214841316100

90157-04001-00

$8.49

18

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

19

NUT, ADJUST

198-84334-60-00

$7.99

20

SPRING, SET

42X-84124-60-00

$6.99

21

BODY ASSY

42X-84330-01-00

Unavailable

22

DAMPER, HEADLIGHT

42X-84345-00-00

Unavailable

23

COLLAR, BODY FITTING

1FK-84338-00-00

Unavailable

24

COLLAR, BODY FITTING

2UJ-84338-00-00

Unavailable

25

DAMPER, HEADLIGHT 1

42X-84366-00-00

Unavailable

26

SCREW, PAN HEAD(1AA)

90157-05084-00

Unavailable

27

WASHER, PLATE

90201-06086-00

Unavailable

28

BOLT, HEXAGON

97017-06016-00

Unavailable

29

WASHER, SPRING

92907-06100-00

Unavailable

30

BOLT,SOCKET

91317-06055-00

Unavailable

31

STAY, HEADLIGHT 1

42X-84318-01-00

Unavailable

32

BOLT,SOCKET

91317-06025-00

Unavailable
