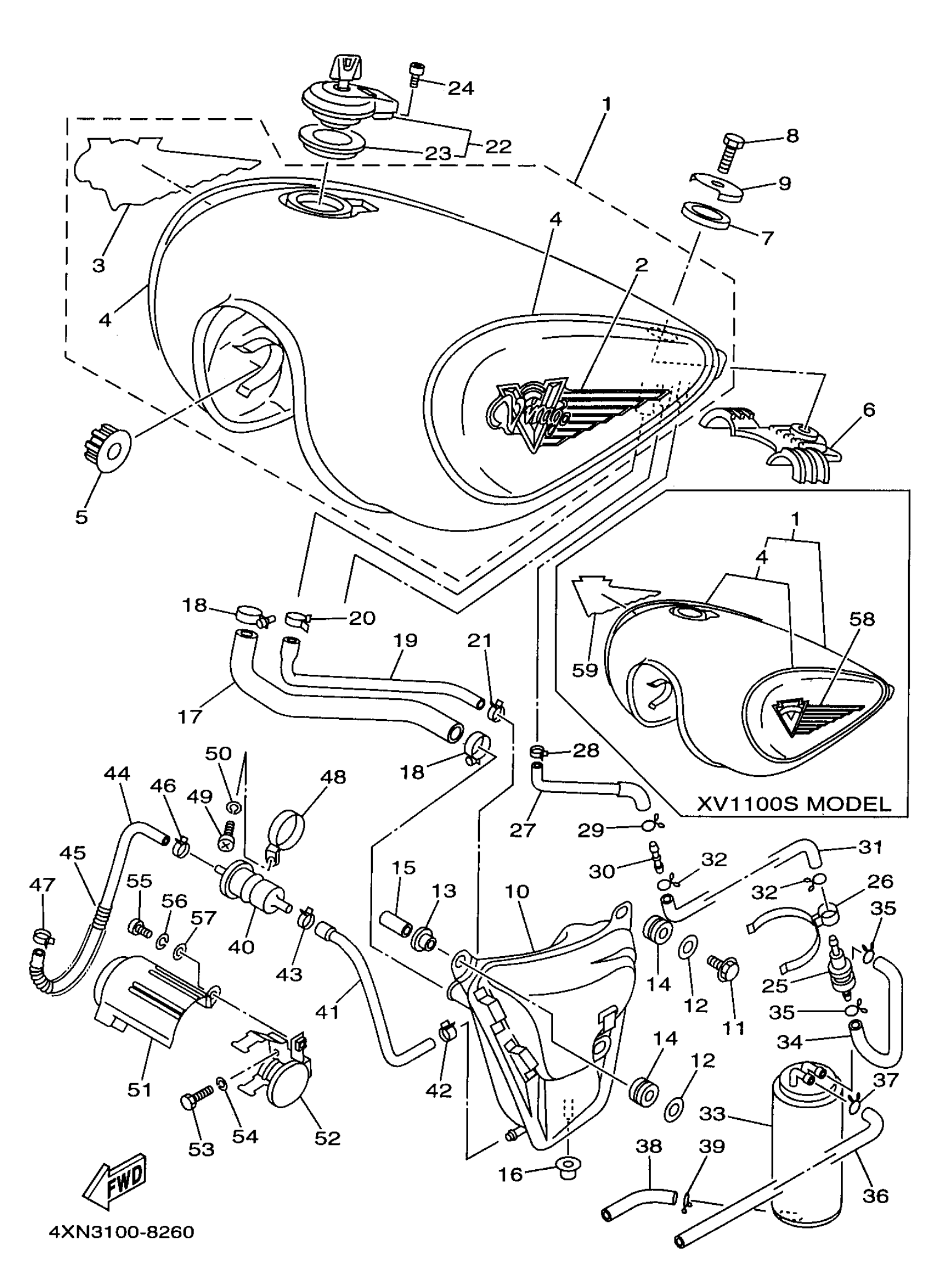

Yamaha XV1100SKC (VIRAGO 1100 SPECIAL CA) 1998 FUEL TANK Diagram
#
1
FUEL TANK COMP. (YAMAHA BLACK)
1TA-24110-00-W5
Unavailable
1
FUEL TANK COMP. (CERAMIC IVORY) (DARK GRAYISH BLUE METALLIC 1)
1TA-24110-00-W6
Unavailable
1
FUEL TANK COMP. (MIYABI MAROON) (BRIGHT CHERRY RED)
1TA-24110-00-W7
Unavailable
1
FUEL TANK ASSY
3DR-W2410-00-W2
Unavailable
1
FUEL TANK COMP. (CERAMIC IVORY) (DARK GRAYISH BLUE METALLIC 1)
3DR-24110-00-X8
Unavailable
1
FUEL TANK COMP. (MIYABI MAROON) (BRIGHT CHERRY RED)
3DR-24110-00-X9
Unavailable
2
. EMBLEM 1 (DARK GRAYISH BLUE METALLIC 1)
3JL-24161-80-00
Unavailable
2
. EMBLEM 1 (MIYABI MAROON)
3JL-24161-90-00
Unavailable
3
. EMBLEM 2
3JL-24162-80-00
Unavailable
3
. EMBLEM 2 (MIYABI MAROON)
3JL-24162-90-00
Unavailable
4
. GRAPHIC SET (YAMAHA BLACK)
3JL-24240-G0-00
Unavailable
4
. GRAPHIC SET (DARK GRAYISH BLUE METALLIC 1)
3JL-24240-J0-00
Unavailable
4
. GRAPHIC SET (MIYABI MAROON)
3JL-24240-K0-00
Unavailable
6
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
7
DAMPER, LOCATING 3
42X-24183-00-00
Unavailable
8
BOLT, HEXAGON
97017-08016-00
Unavailable
9
WASHER, SPECIAL
42X-24186-00-00
Unavailable
10
SUB TANK ASSEMBLY
42H-24280-00-00
Unavailable
11
BOLT,SOCKET
91317-06020-00
Unavailable
12
WASHER, PLATE
90201-06557-00
Unavailable
13
COLLAR(42G)
90387-062L2-00
Unavailable
14
GROMMET (1E5)
90480-13163-00
Unavailable
15
SPACER
90560-06258-00
Unavailable
16
GROMMET(42G)
90480-10408-00
Unavailable
17
PIPE 6
42H-24316-00-00
Unavailable
18
HOSE CLAMP ASSY(4JT)
90450-28073-00
Unavailable
19
PIPE 7
42H-24317-00-00
Unavailable
20
CLIP (7K7)
90467-11044-00
Unavailable
21
CLIP(3BM)
90467-10135-00
Unavailable
22
CAP ASSY
20K-24602-10-00
Unavailable
22
CAP ASSY
4X7-24602-10-00
Unavailable
23
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
24
BOLT, SOCKET
91317-05010-00
Unavailable
25
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
26
HOLDER
42H-2419A-00-00
Unavailable
27
PIPE, JOINT 1
42H-24376-00-00
Unavailable
28
CLIP(41W)
90467-08092-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
30
TUBE, CONNECTING
42H-24119-00-00
Unavailable
31
PIPE, JOINT 3
42H-24377-01-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
CANISTER ASSEMBLY
42H-24170-00-00
Unavailable
34
PIPE, JOINT 4
42H-24378-01-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
HOSE (L730)
90445-105K7-00
Unavailable
37
CLIP
90467-090A2-00
Unavailable
38
HOSE (L198)
90445-11293-00
Unavailable
39
CLIP(1JH)
90467-11106-00
Unavailable
40
FILTER ASSY
1FK-24560-10-00
Unavailable
41
PIPE, FUEL 1
42H-24311-00-00
Unavailable
42
CLIP(3BM)
90467-10135-00
Unavailable
43
CLIP (7K7)
90467-11044-00
Unavailable
44
PIPE 5
42H-24315-00-00
Unavailable
45
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
46
CLIP (7K7)
90467-11044-00
Unavailable
47
CLIP(3BM)
90467-10135-00
Unavailable
48
CLAMP
90465-08256-00
Unavailable
49
SCREW, PAN
98507-06010-00
Unavailable
50
WASHER, SPRING
92907-06100-00
Unavailable
51
COVER
42H-24452-00-00
Unavailable
52
BRACKET, FUEL PUMP
3JK-24491-00-00
Unavailable
53
BOLT, HEXAGON
97017-06012-00
Unavailable
54
WASHER, SPRING
92907-06100-00
Unavailable
55
SCREW, PAN
98517-06012-00
Unavailable
56
WASHER, SPRING
92907-06100-00
Unavailable
57
WASHER(6TA)
92907-06600-00
Unavailable
58
. EMBLEM 1 (BLACK GOLD)
3JK-24161-00-00
Unavailable
59
. EMBLEM 2 (BLACK GOLD)
3JK-24162-00-00
Unavailable
