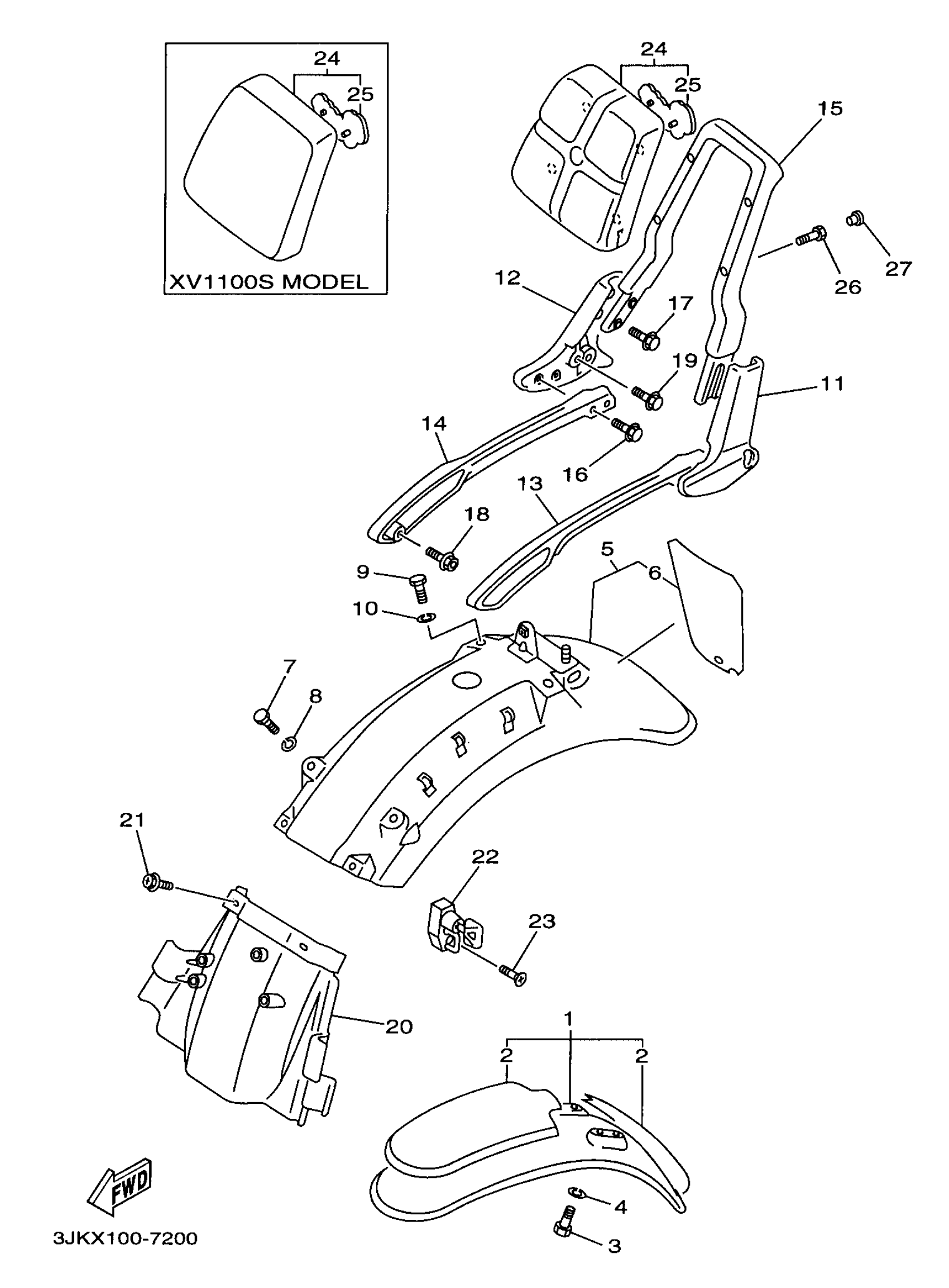

Yamaha XV1100SKC (VIRAGO 1100 SPECIAL CA) 1998 FENDER Diagram
#
1
FRONT FENDER COMP. (DARK GRAYISH BLUE METALLIC 1)
1MY-Y2151-J0-9B
Unavailable
1
FRONT FENDER COMP. (MIYABI MAROON)
1MY-Y2151-K0-JY
Unavailable
1
FRONT FENDER COMP. (YAMAHA BLACK)
1MY-Y2151-L0-33
Unavailable
2
. GRAPHIC SET, FRONT FENDER (YAMAHA BLACK)
3JK-21570-B0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK GRAYISH BLUE METALLIC 1)
3JK-21570-D0-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MIYABI MAROON)
3JK-21570-E0-00
Unavailable
5
REAR FENDER C0MP. (MIYABI MAROON)
1RM-Y2161-1S-JY
Unavailable
5
REAR FENDER C0MP. (YAMAHA BLACK)
1RM-Y2161-1T-33
Unavailable
5
MUD GUARD COMP.
1RM-Y2161-1R-9B
Unavailable
6
. GRAPHIC, REAR FENDER (YAMAHA BLACK)
3JK-21675-A0-00
Unavailable
6
. GRAPHIC, REAR FENDER (DARK GRAYISH BLUE METALLIC 1)
3JK-21675-C0-00
Unavailable
6
. GRAPHIC, REAR FENDER (MIYABI MAROON)
3JK-21675-D0-00
Unavailable
9
BOLT, HEXAGON
97027-08012-00
Unavailable
10
WASHER(JN5)
92907-08100-00
Unavailable
11
STAY 1
1RM-2164F-00-00
Unavailable
12
STAY 2
1RM-2164G-00-00
Unavailable
13
STAY 3
3JK-2164H-00-00
Unavailable
14
STAY 4
3JK-2164J-00-00
Unavailable
15
GRIP 1
42H-2164A-02-00
Unavailable
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
SCREW
90149-08225-00
Unavailable
19
BOLT, FLANGE
90105-10153-00
Unavailable
20
GUARD, MUD
42X-21629-00-00
Unavailable
21
SCREW, WITH WASHER
90159-06128-00
Unavailable
22
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
23
SCREW (4G1)
90149-06154-00
Unavailable
24
. BACK REST ASSEMBLY
1TA-2840F-00-00
Unavailable
24
BACK REST ASSEMBLY
3JK-2840F-00-00
Unavailable
25
.. EMBLEM
42H-24786-00-00
Unavailable
26
BOLT,SOCKET
91317-06035-00
Unavailable
27
PLUG(42H)
90338-06162-00
Unavailable
