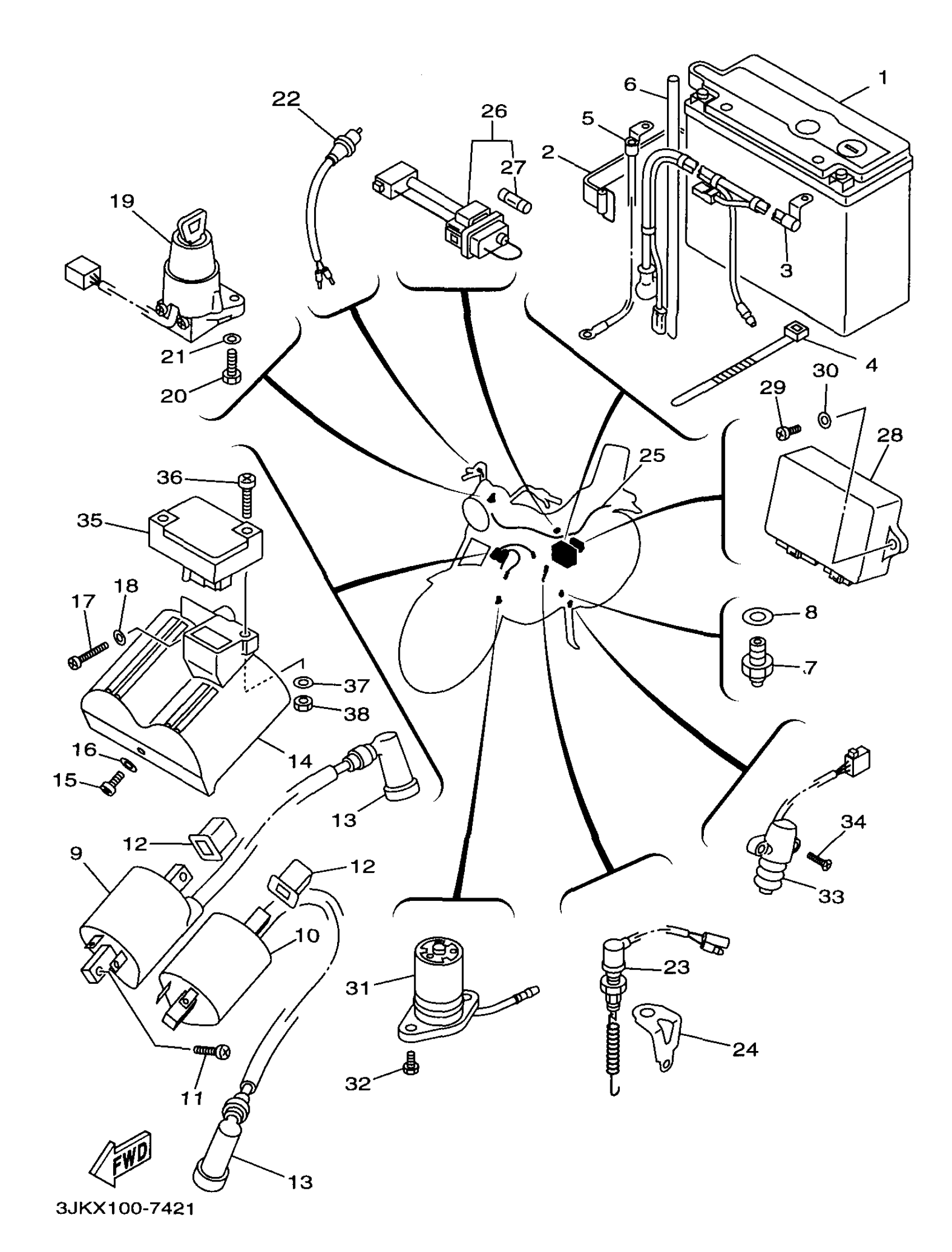

Yamaha XV1100SKC (VIRAGO 1100 SPECIAL CA) 1998 ELECTRICAL 1 Diagram
#
1
SY50N18LAT YUASA BATTERY
SY5-0N18L-A0-00
Unavailable
3
WIRE, PLUS LEAD
42H-82115-01-00
Unavailable
5
WIRE, MINUS LEAD
42X-82116-00-00
Unavailable
9
IGNITION COIL ASSEMBLY
42X-82310-70-00
Unavailable
10
IGNITION COIL ASSEMBLY
42X-82320-70-00
Unavailable
11
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
DAMPER, IGNITION COIL
42X-82317-00-00
Unavailable
13
PLUG CAP ASSY
1J7-82370-00-00
Unavailable
14
COVER,IGNITN COIL
42X-82314-01-00
Unavailable
16
WASHER(6TA)
92907-06600-00
Unavailable
17
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
MAIN SWITCH STEERING LOCK
42H-82501-50-00
Unavailable
20
BOLT, HEXAGON
97017-06016-00
Unavailable
21
WASHER(6TA)
92907-06600-00
Unavailable
22
FRONT STOP SWITCH ASSY
26H-83980-00-00
Unavailable
23
STOP SWITCH ASSY
42X-82530-02-00
Unavailable
24
STAY, STOP SWITCH
1FK-82539-00-00
Unavailable
25
WIRE HARNESS ASSEMBLY
3JK-82590-00-00
Unavailable
26
FUSE HOLDER ASSEMBLY
3H5-82150-00-00
Unavailable
27
FUSE (12V 30A)
2H7-82151-00-00
Unavailable
28
IGNITOR UNIT ASSEMBLY
3JK-82305-00-00
Unavailable
29
SCREW, TAPPING(JA3)
97707-60520-00
Unavailable
30
WASHER, PLATE (4F4)
90201-063A5-00
Unavailable
31
OIL LEVEL GAUGE ASSEMBLY
3JK-85720-00-00
Unavailable
32
BOLT,SOCKET
91317-06016-00
Unavailable
33
SWITCH, SIDE STAND
33E-82566-00-00
Unavailable
34
SCREW, FLAT
98707-05016-00
Unavailable
35
SENSOR, PRESSURE
1TA-82380-20-00
Unavailable
36
SCREW, PAN
98517-06030-00
Unavailable
37
WASHER(6TA)
92907-06600-00
Unavailable
38
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
