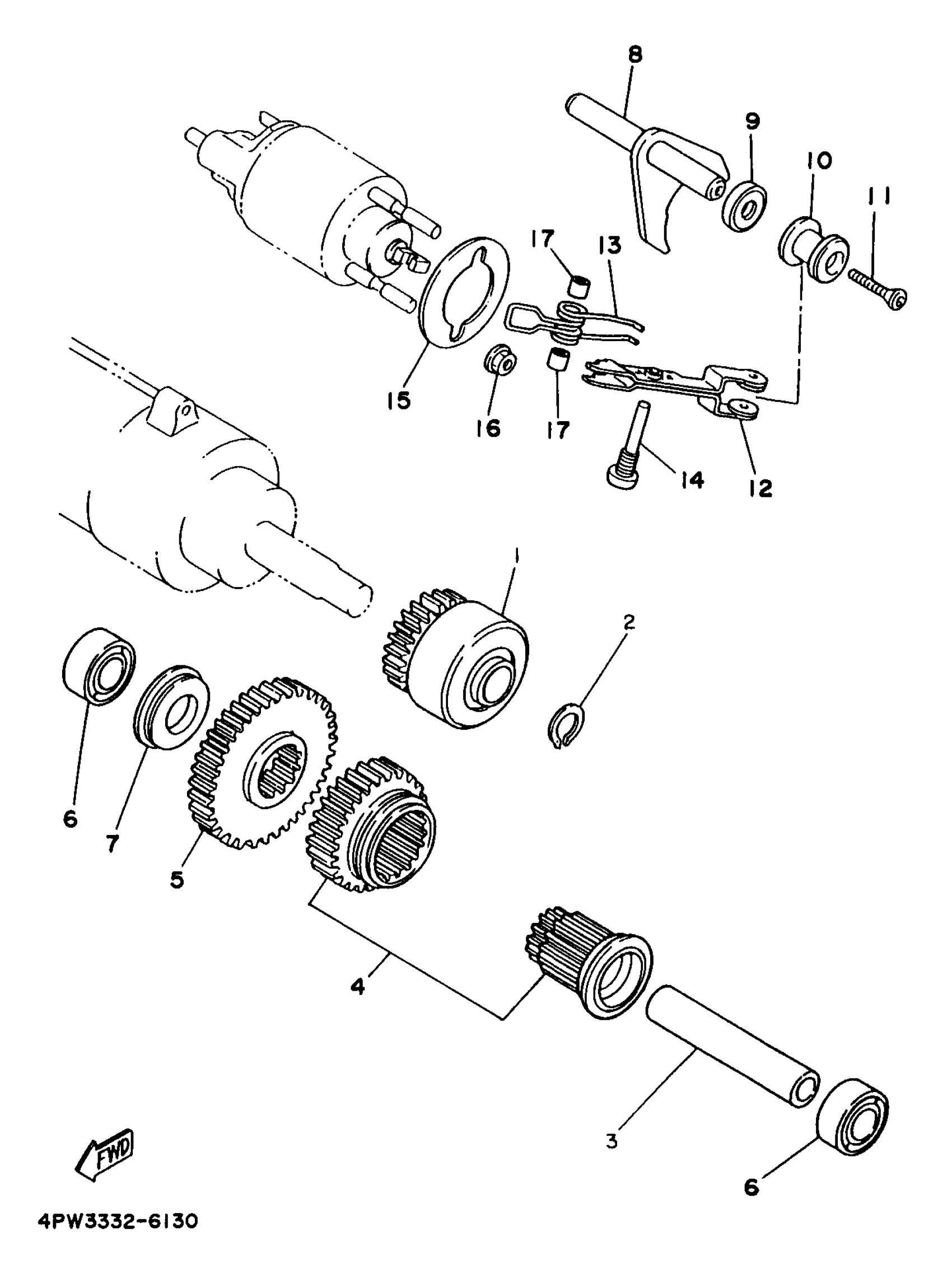

Yamaha XV1100SJC (VIRAGO 1100 SPECIAL CA) 1997 STARTER CLUTCH Diagram

STARTER CLUTCH ASSY

3LP-15570-00-00

Unavailable

CIRCLIP(13M)

99009-13400-00

$9.49

SHAFT 1

4X7-15521-00-00

Unavailable

GEAR, IDLER SET

3LP-W1551-01-00

Unavailable

GEAR, IDLER 1

1TA-15512-00-00

Unavailable

COLLAR (4X7)

90387-172E5-00

Unavailable

COLLAR (4X7)

90387-170E5-00

$15.99

DRIVE LEVER ASSEMBLY

5A8-15550-00-00

Unavailable

OIL SEAL (5A8)

93102-10247-00

Unavailable

COLLAR 2

5A8-15542-01-00

Unavailable

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

LEVER, DRIVE

5A8-15556-00-00

Unavailable

SPRING, TORSION

90508-26494-00

Unavailable

SCREW (5A8)

90149-08166-00

$23.99

GASKET

3EG-15568-00-00

$10.99

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

COLLAR(1RW)

90387-0801M-00

Unavailable
