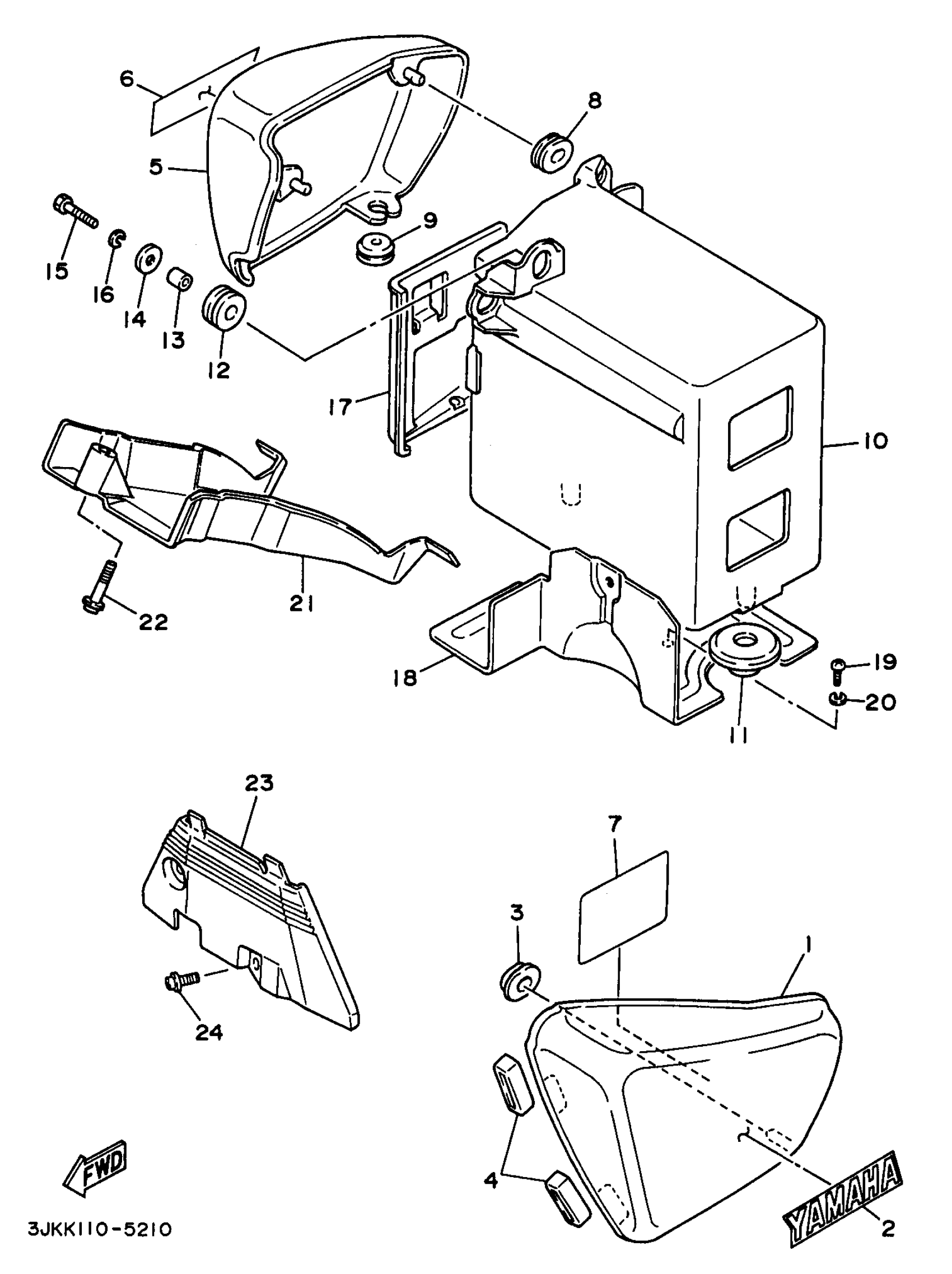

Yamaha XV1100SJC (VIRAGO 1100 SPECIAL CA) 1997 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 1
42X-21711-00-FE
Unavailable
1
COVER, SIDE 1
42X-21711-00-JW
Unavailable
1
COVER, SIDE 1
42X-21711-00-P5
Unavailable
5
COVER, SIDE 2
42X-21721-00-JW
Unavailable
5
COVER, SIDE 2
42X-21721-00-P5
Unavailable
7
PLATE, EPA 2
3JK-2179R-80-00
Unavailable
7
PLATE, EPA 1
3JK-2179V-80-00
Unavailable
9
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
10
BOX, TOOL
42X-21171-00-00
Unavailable
11
GROMMET(42X)
90480-20384-00
Unavailable
12
GROMMET (2N3)
90480-16233-00
Unavailable
13
COLLAR
90387-06113-00
Unavailable
14
WASHER, PLATE
90201-06020-00
Unavailable
15
BOLT, HEXAGON
97017-06020-00
Unavailable
16
WASHER, SPRING
92907-06100-00
Unavailable
17
LID
42X-28185-00-00
Unavailable
18
COVER
42X-2172W-02-00
Unavailable
19
SCREW, PAN
98507-06010-00
Unavailable
20
WASHER, SPRING
92907-06100-00
Unavailable
21
PLATE
42X-2176E-00-00
Unavailable
22
SCREW, WITH WASHER
90159-06110-00
Unavailable
23
COVER
42X-2117F-00-00
Unavailable
24
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
