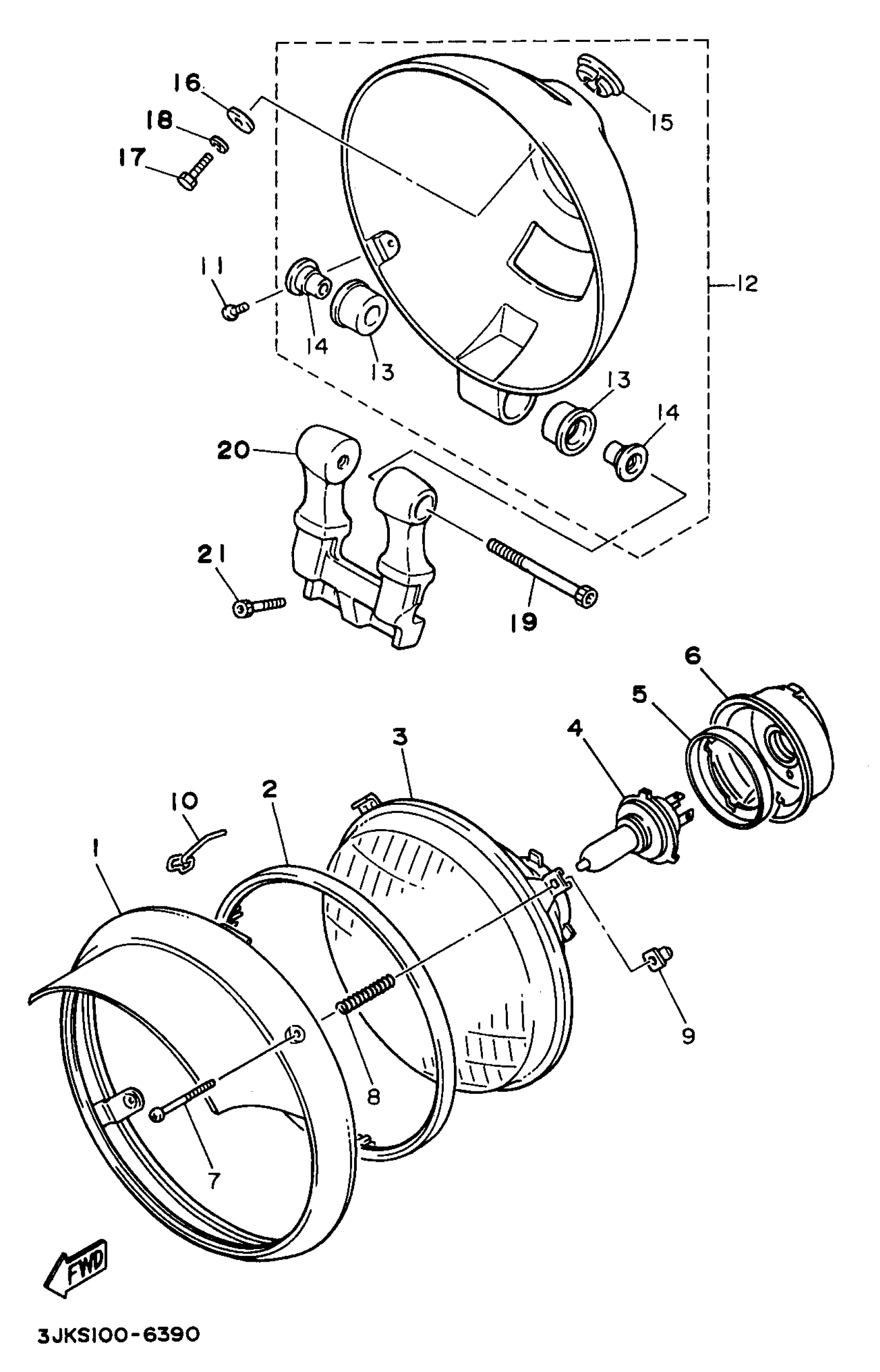

Yamaha XV1100SJC (VIRAGO 1100 SPECIAL CA) 1997 HEADLIGHT 2 XV1100S Diagram

#

Description
Price

1

RIM, HEADLIGHT

3JK-84315-00-00

Unavailable

2

RING, RETAINING

5Y3-84395-00-00

Unavailable

3

LENS, HEADLIGHT

42X-84321-A0-00

$114.61

4

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

5

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

6

COVER, SOCKET

2F9-84397-01-00

$27.39

7

SCREW 214841316100

90157-04001-00

$5.00

8

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$8.61

9

NUT, ADJUST

198-84334-60-00

$5.99

10

SPRING, SET

42X-84124-60-00

$6.33

11

SCREW, PAN HEAD(1AA)

90157-05084-00

$3.44

12

BODY ASSY

42X-84330-01-00

$204.26

13

DAMPER, HEADLIGHT

42X-84345-00-00

$4.91

14

. COLLAR BODY FITTING

42X-84338-00-00

Unavailable

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

$18.38

16

WASHER, PLATE

90201-06086-00

Unavailable

17

BOLT, HEXAGON

97017-06016-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

BOLT, SOCKET

91317-08055-00

Unavailable

20

STAY,HEADLIGHT 1

99999-03057-00

Unavailable

21

BOLT,SOCKET

91317-06025-00

Unavailable
