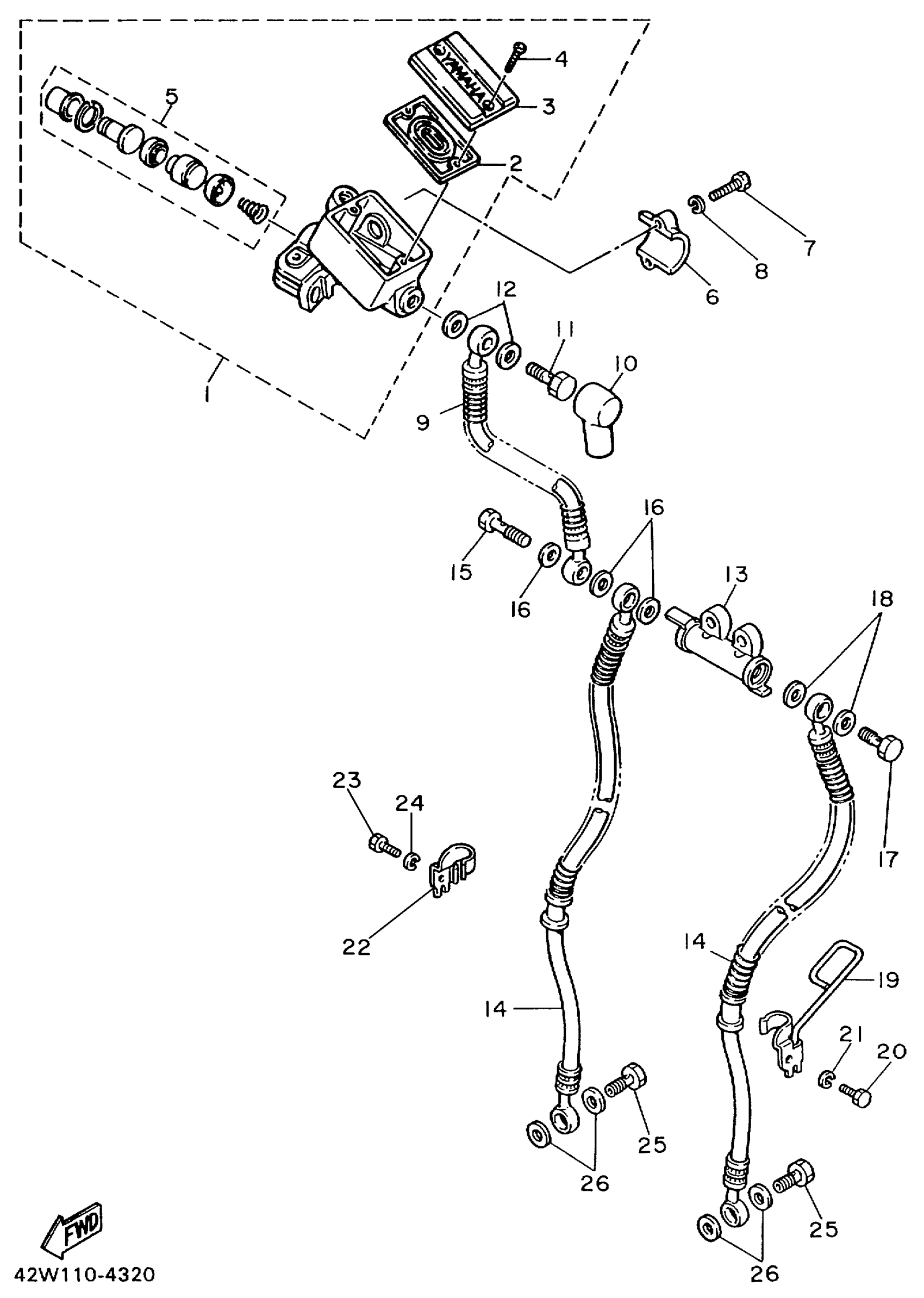

Yamaha XV1100SJC (VIRAGO 1100 SPECIAL CA) 1997 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3SD-25870-20-00

Unavailable

2

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$29.13

3

CAP, RESERVOIR

3GM-25852-02-00

$52.23

4

SCREW, FLAT

98707-04012-00

$1.34

5

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER(6TA)

92907-06600-00

$0.73

9

HOSE, BRAKE 1

42H-25872-02-00

Unavailable

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$5.96

11

BOLT, UNION(3GM)

90401-10159-00

$8.26

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

JOINT

42H-25885-01-00

Unavailable

14

HOSE, BRAKE 2

42H-25873-02-00

Unavailable

15

BOLT, UNION

90401-10038-00

$10.46

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

$8.26

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

HOLDER, BRAKE HOSE 1

42X-25875-00-00

Unavailable

20

BOLT(3JP)

97017-06010-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

HOLDER, BRAKE HOSE 2

42X-25876-00-00

Unavailable

23

BOLT(3JP)

97017-06010-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

$8.26

26

WASHER, PLATE(481)

90201-10118-00

Unavailable
