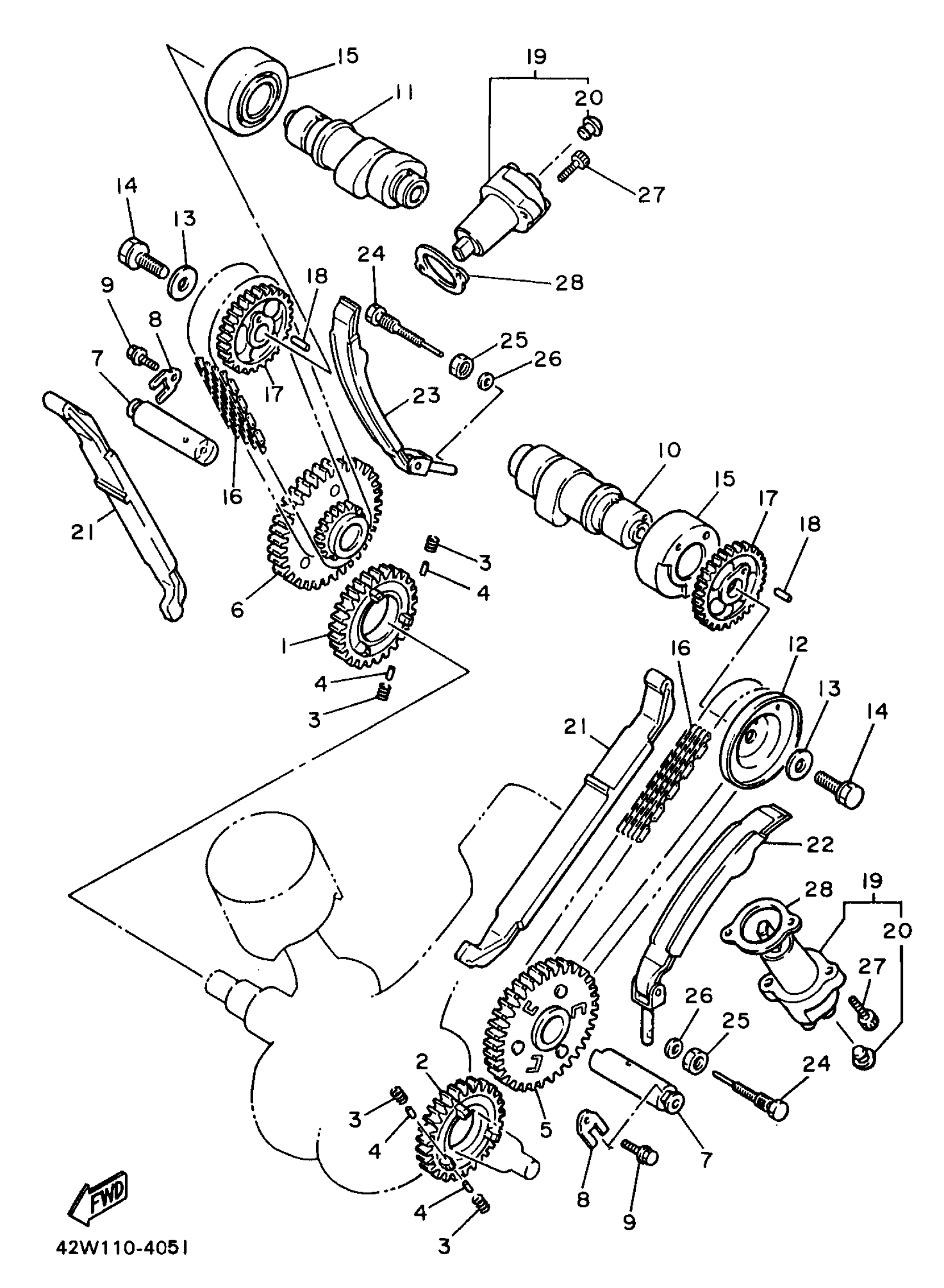

Yamaha XV1100SJC (VIRAGO 1100 SPECIAL CA) 1997 CAMSHAFT CHAIN Diagram

#

Description
Price

1

GEAR, DRIVE (35T)

4X7-11536-00-00

Unavailable

2

GEAR, BREAKER DRIVE

4X7-11534-00-00

Unavailable

3

SPRING COMPRESSION341114880000

90501-21133-00

$8.49

4

PIN, DOWEL

93605-10090-00

$8.49

5

CAM CHAIN SPROCKET ASSEMBLY 1

4X7-11540-02-00

Unavailable

6

CAM CHAIN SPROCKET ASSEMBLY 2

4X7-11550-01-00

Unavailable

7

SHAFT, TENSIONER

5EL-12247-00-00

$84.99

8

WASHER (4X7)

90209-06205-00

Unavailable

9

BOLT, WASHER BASED (4H7)

90105-06154-00

$4.72

10

CAMSHAFT 1

42H-12171-00-00

Unavailable

11

CAMSHAFT 2

42H-12181-00-00

Unavailable

12

PLATE, BREATHER 2

42X-11145-00-00

Unavailable

13

WASHER, PLATE (3L6)

90201-10774-00

$9.49

14

BOLT (583)

90101-10303-00

$9.49

15

BUSH, SOLID (20X)

90380-25125-00

$57.99

16

CHAIN, CAMSHAFT (10L)

94590-45098-00

Unavailable

17

SPROCKET, CAM CHAIN (28T)

4X7-12176-00-00

Unavailable

18

PIN,DOWEL (603)

93604-10011-00

Unavailable

19

TENSIONER ASSY, CAM CHAIN

4X7-12210-01-00

Unavailable

20

PLUG (4X7)

90338-06121-00

Unavailable

21

GUIDE, STOPPER 1

4X7-12231-00-00

Unavailable

22

GUIDE, STOPPER 2

4X7-12241-00-00

Unavailable

23

GUIDE, STOPPER 3

4X7-12221-00-00

Unavailable

24

BOLT

90109-08592-00

Unavailable

25

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

28

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
