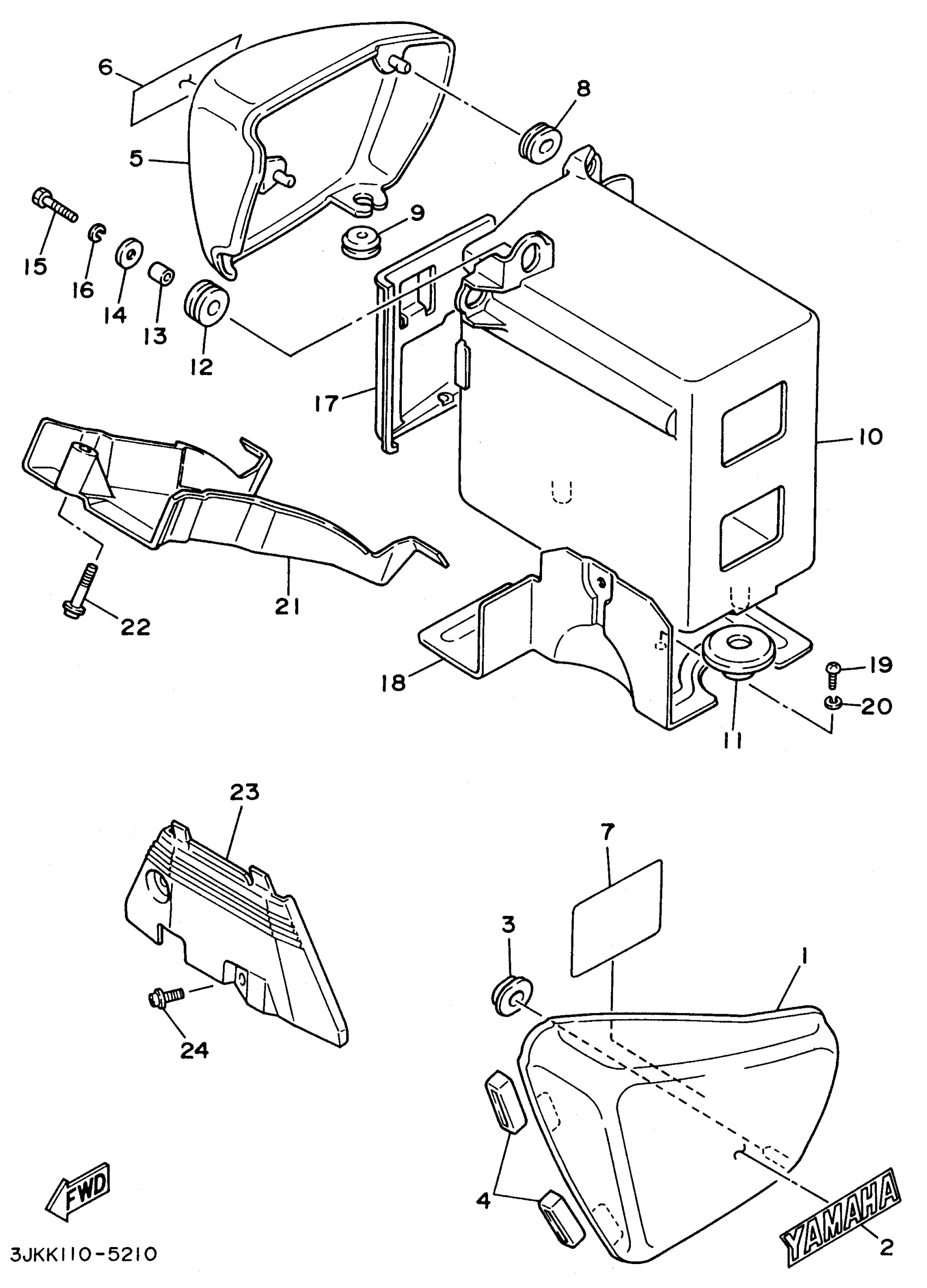

Yamaha XV1100SHC (VIRAGO 1100 SPECIAL CA) BH20741 1996 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

42X-21711-00-FE

Unavailable

1

COVER, SIDE 1

42X-21711-00-H9

Unavailable

1

COVER, SIDE 1

42X-21711-00-P4

Unavailable

2

EMBLEM, YAMAHA

99246-00080-00

$20.99

2

EMBLEM, YAMAHA

99247-00080-00

$15.99

3

GROMMET(41Y)

90480-01401-00

$8.49

4

DAMPER, SIDE COVER

466-21717-00-00

$10.99

5

COVER, SIDE 2

42X-21721-00-FE

$129.99

5

COVER, SIDE 2

42X-21721-00-H9

Unavailable

5

COVER, SIDE 2

42X-21721-00-P4

Unavailable

6

EMBLEM, YAMAHA

99246-00080-00

$20.99

6

EMBLEM, YAMAHA

99247-00080-00

$15.99

7

PLATE, EPA 2

3JK-2179R-71-00

Unavailable

7

PLATE, EPA 1

3JK-2179V-70-00

Unavailable

8

GROMMET(41Y)

90480-01401-00

$8.49

9

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

10

BOX, TOOL

42X-21171-00-00

Unavailable

11

GROMMET(42X)

90480-20384-00

Unavailable

12

GROMMET (2N3)

90480-16233-00

Unavailable

13

COLLAR

90387-06113-00

Unavailable

14

WASHER, PLATE

90201-06380-00

Unavailable

15

BOLT, HEXAGON

97017-06020-00

Unavailable

16

WASHER, SPRING

92907-06100-00

Unavailable

17

LID

42X-28185-00-00

Unavailable

18

COVER

42X-2172W-02-00

Unavailable

19

SCREW, PAN

98507-06010-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

PLATE

42X-2176E-00-00

Unavailable

22

SCREW, WITH WASHER

90159-06110-00

Unavailable

23

COVER

42X-2117F-00-00

Unavailable

24

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable
