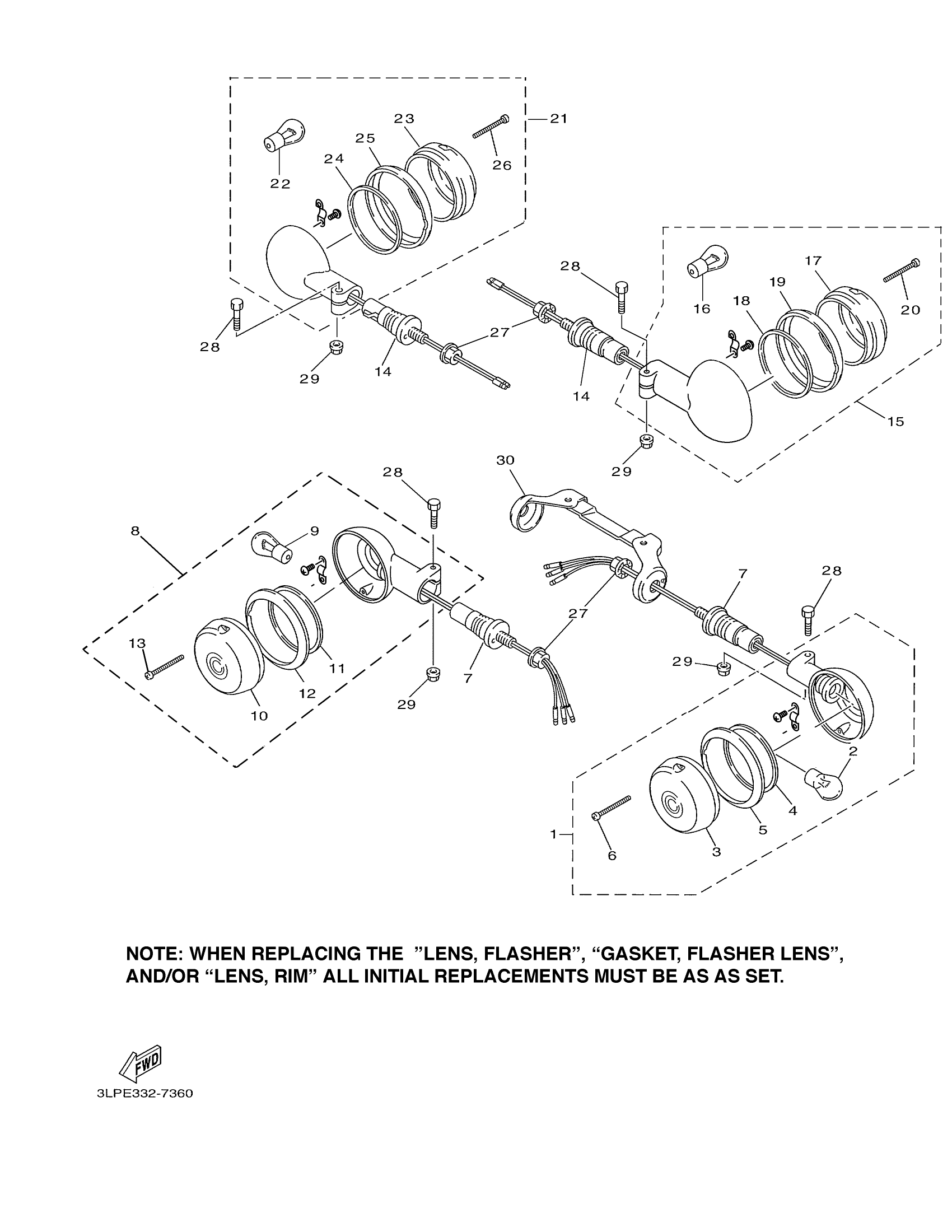

Yamaha XV1100SHC (VIRAGO 1100 SPECIAL CA) BH20741 1996 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$57.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

42X-83312-09-00

$14.49

4

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

5

. LENS, RIM

42X-83363-00-00

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

STAY, FLASHER 1

1AA-83318-00-00

$45.99

8

FRONT FLASHER LIGHT ASSY 1

42X-83310-K1-00

$57.99

9

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

10

LENS, FLASHER

42X-83312-20-00

$15.49

11

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

12

LENS, RIM

1D6-83363-10-00

$28.99

13

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

14

STAY, FLASHER 1

1AA-83318-00-00

$45.99

15

REAR FLASHER LIGHT ASSY 1

42X-83330-K1-00

$131.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

LENS, FLASHER

42X-83312-20-00

$15.49

18

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

19

LENS, RIM

1D6-83363-10-00

$28.99

20

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

21

FLASHER LIGHT ASSY 2

42X-83340-K1-00

Unavailable

22

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

23

LENS, FLASHER

42X-83312-10-00

Unavailable

24

GASKET, FLASHER LENS

1D6-83313-00-00

$6.99

25

LENS, RIM

1D6-83363-00-00

Unavailable

26

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

27

NUT(3GG)

90179-12588-00

Unavailable

28

BOLT, HEXAGON

97017-06030-00

Unavailable

29

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

30

STAY, FLASHER 2

42X-83328-00-00

Unavailable
