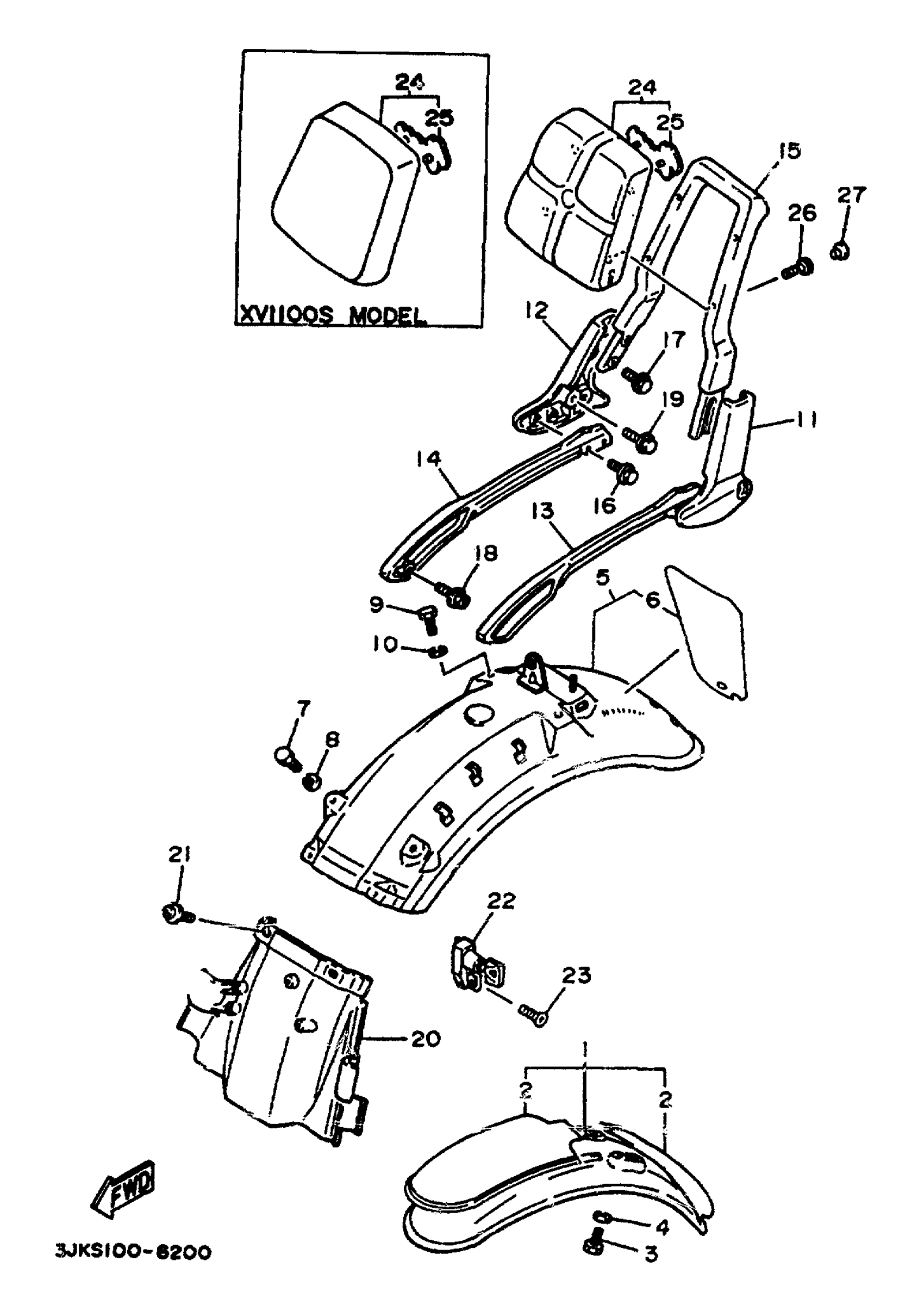

Yamaha XV1100SHC (VIRAGO 1100 SPECIAL CA) BH20741 1996 FENDER Diagram
#
1
FRONT FENDER COMP.
1MY-Y2151-60-FE
Unavailable
1
FRONT FENDER COMP.
1MY-Y2151-70-PB
Unavailable
1
FRONT FENDER COMP.
1MY-Y2151-A0-H9
Unavailable
2
. GRAPHIC SET, FRONT FENDER (MATURE RED)
3JK-21570-30-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK GREENISH BLUE SOLID 2)
3JK-21570-40-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (BLACK GOLD)
3JK-21570-50-00
Unavailable
5
REAR FENDER COMP.
1RM-Y2161-0L-FE
Unavailable
5
REAR FENDER COMP.
1RM-Y2161-0M-P4
Unavailable
5
REAR FENDER COMP.
1RM-Y2161-0N-H9
Unavailable
6
. GRAPHIC, REAR FENDER (MATURE RED)
3JK-21675-20-00
Unavailable
6
. GRAPHIC, REAR FENDER (DARK GREENISH BLUE SOLID 2)
3JK-21675-30-00
Unavailable
6
. GRAPHIC, REAR FENDER (BLACK GOLD)
3JK-21675-40-00
Unavailable
9
BOLT, HEXAGON
97027-08012-00
Unavailable
10
WASHER(JN5)
92907-08100-00
Unavailable
11
STAY 1
1RM-2164F-00-00
Unavailable
12
STAY 2
1RM-2164G-00-00
Unavailable
13
STAY 3
3JK-2164H-00-00
Unavailable
14
STAY 4
3JK-2164J-00-00
Unavailable
15
GRIP 1
42H-2164A-02-00
Unavailable
16
BOLT, FLANGE
95817-06016-00
Unavailable
17
BOLT, FLANGE
95817-06016-00
Unavailable
18
SCREW
90149-08225-00
Unavailable
19
BOLT, FLANGE
90105-10153-00
Unavailable
20
GUARD, MUD
42X-21629-00-00
Unavailable
21
SCREW, WITH WASHER
90159-06128-00
Unavailable
22
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
23
SCREW (4G1)
90149-06154-00
Unavailable
24
. BACK REST ASSEMBLY
1TA-2840F-00-00
Unavailable
24
BACK REST ASSEMBLY
3JK-2840F-00-00
Unavailable
25
.. EMBLEM
42H-24786-00-00
Unavailable
26
BOLT,SOCKET
91317-06035-00
Unavailable
27
PLUG(42H)
90338-06162-00
Unavailable
