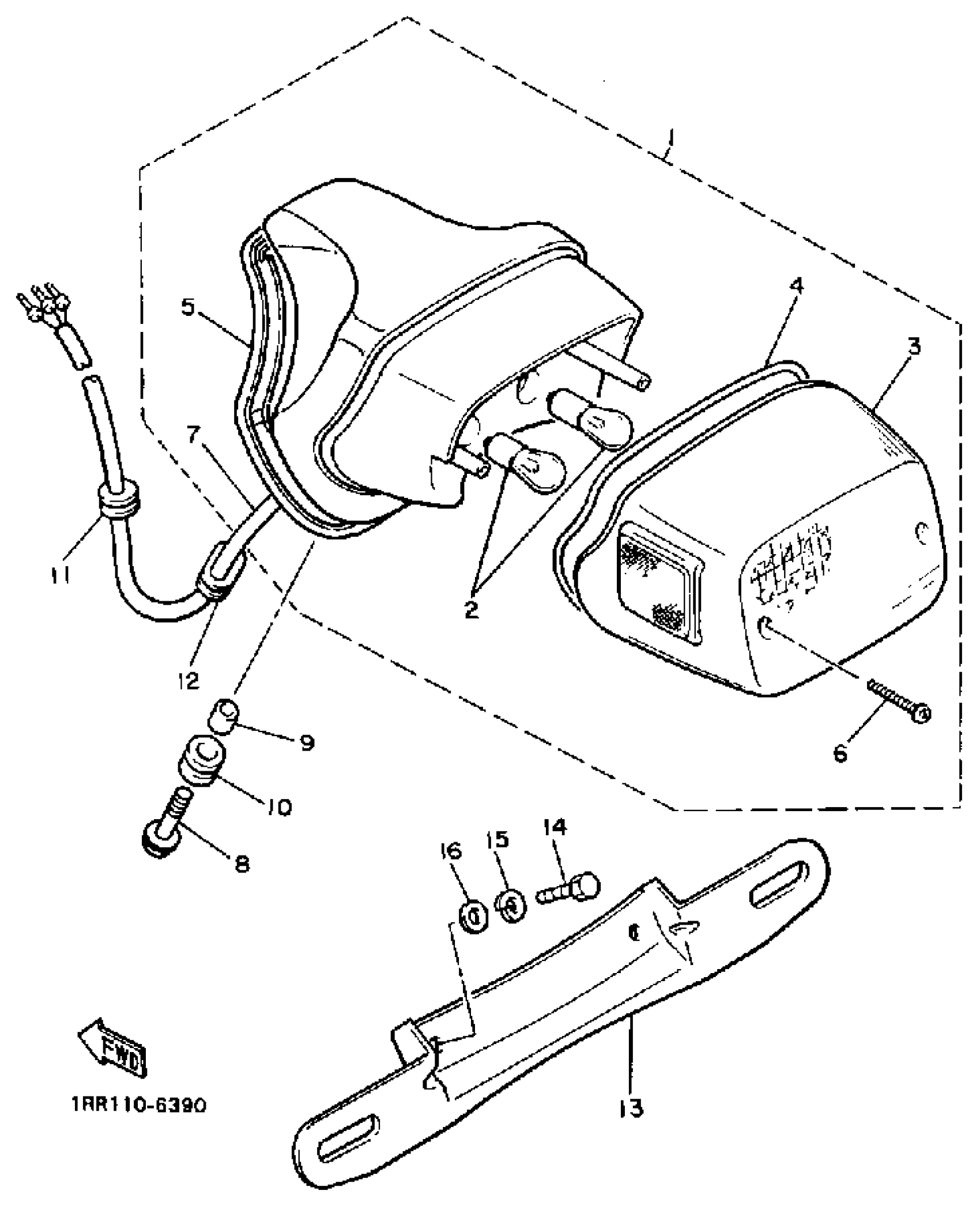

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSEMBLY

1RM-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.54

3

LENS, TAILLIGHT

42X-84721-61-00

Unavailable

4

SEAL

1VJ-14462-00-00

$15.32

5

GASKET, TAILLIGHT

1RM-84704-00-00

$41.61

6

SCREW, TAPPING(7G6)

97780-40525-00

$6.05

7

CORD,TAILLIGHT

461-84517-00-00

Unavailable

8

BOLT, WITH WASHER(2WG)

90119-06172-00

$6.02

9

COLLAR

90387-06144-00

$4.89

10

GROMET (3X3)

90480-14229-00

$5.87

11

GROMMET(2UJ)

90480-16501-00

$5.29

12

GROMMET (438)

90480-15061-00

$6.35

13

BRACKET, LICENSE

1RM-84751-00-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

15

WASHER, SPRING

92995-06100-00

$2.83

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable
