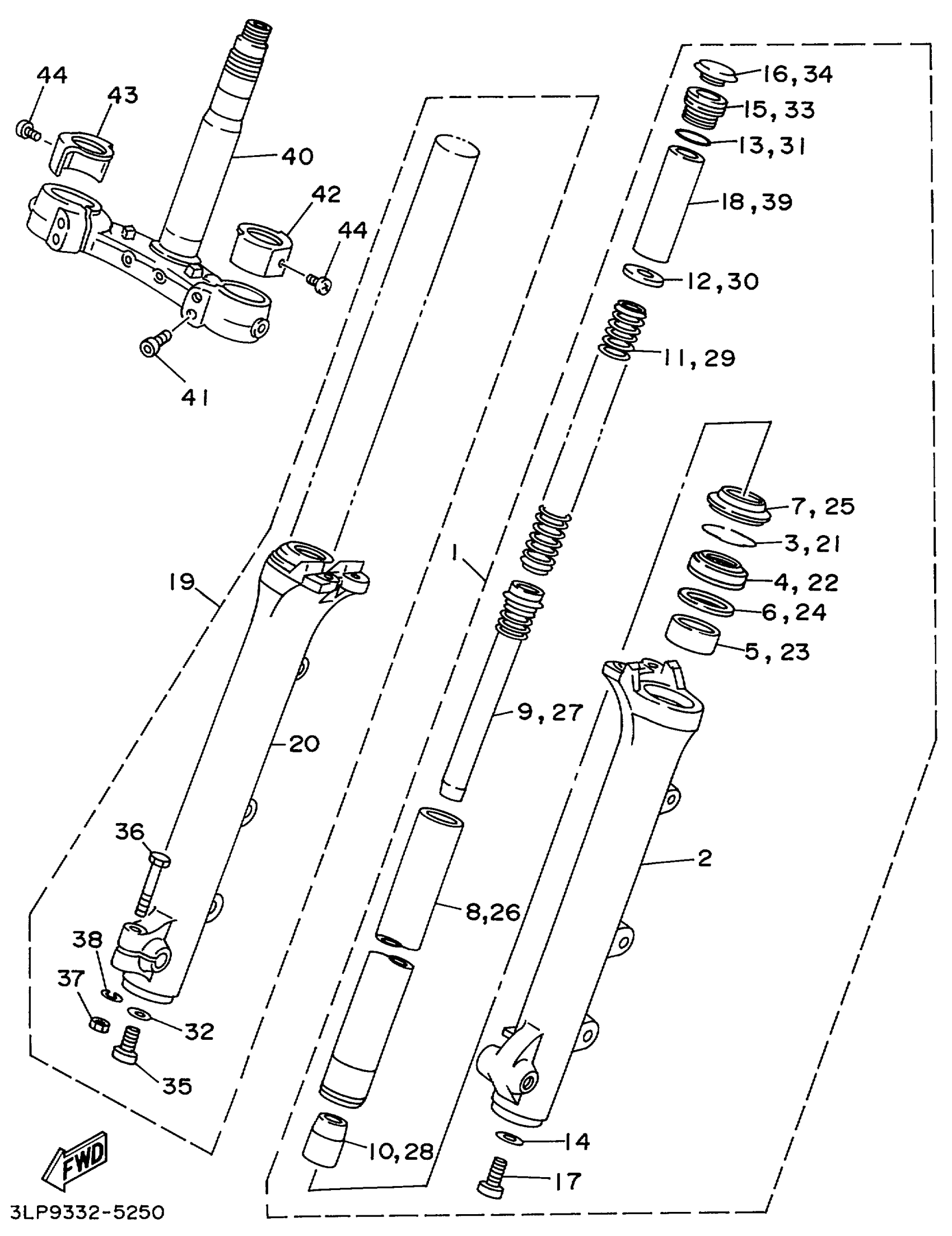

Yamaha XV1100LC (VIRAGO 1100 CA) 4XNB 1999 FRONT FORK Diagram
#
1
FRONT FORK ASY(LH)
3JK-23102-13-00
Unavailable
2
TUBE,OUTER(LEFT)
3JK-23126-10-00
Unavailable
8
INNER TUBE COMP.1
3JK-23110-12-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
10
. SPINDLE, TAPER
3JK-23173-12-00
Unavailable
11
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
12
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
15
. BOLT, CAP
3KM-23111-01-00
Unavailable
16
CAP, FRONT FORK
42H-23168-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
18
. SPACER
42X-23118-00-00
Unavailable
19
FRONT FORK ASY(RH)
3JK-23103-13-00
Unavailable
20
TUBE,OUTER(RIGHT)
3JK-23136-10-00
Unavailable
26
INNER TUBE COMP.1
3JK-23110-12-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
28
. SPINDLE, TAPER
3JK-23173-12-00
Unavailable
29
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
30
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
33
. BOLT, CAP
3KM-23111-01-00
Unavailable
34
CAP, FRONT FORK
42H-23168-00-00
Unavailable
35
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
36
BOLT
97013-08045-00
Unavailable
37
NUT(6L2)
95333-08600-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
. SPACER
42X-23118-00-00
Unavailable
40
UNDER BRACKET COMP.
2AE-23340-30-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
COVER (L.H)
1RM-23132-00-00
Unavailable
43
COVER (R.H)
1RM-23132-10-00
Unavailable
44
SCREW,PANHEAD (EG9)
98580-05006-00
Unavailable
