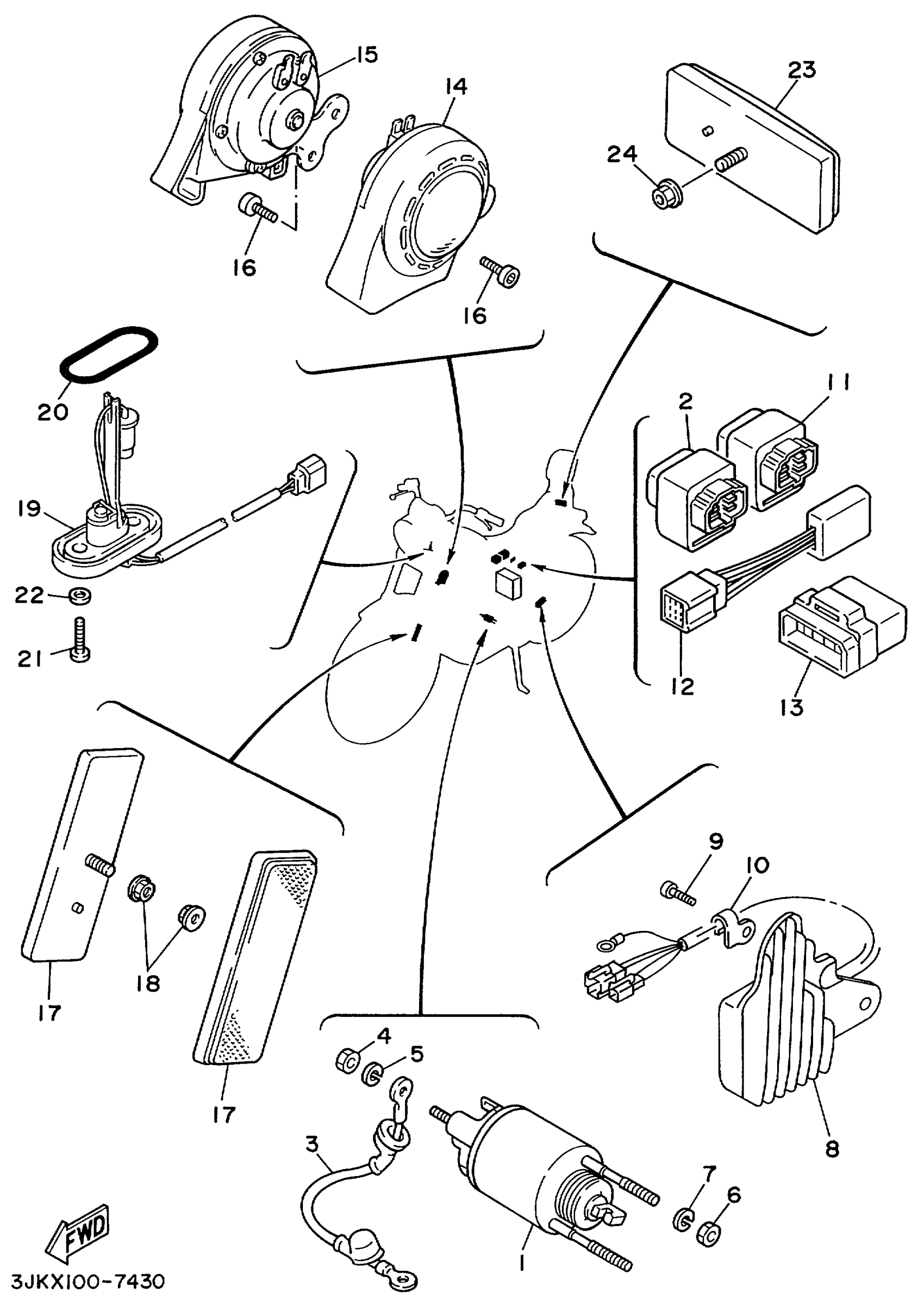

Yamaha XV1100LC (VIRAGO 1100 CA) 4XNB 1999 ELECTRICAL 2 Diagram

#

Description
Price

1

SOLENOID

5A8-86110-50-00

Unavailable

2

RELAY ASSY

25G-81950-02-00

$47.99

3

CORD, STARTER MOTOR

3JK-81815-00-00

Unavailable

4

NUT(JN5)

95317-06700-00

$8.49

5

WASHER, SPRING

92907-06100-00

$4.25

6

NUT, HEXAGON SMALL

95317-08700-00

$9.49

7

WASHER(JN5)

92907-08100-00

$8.49

8

RECTIFIER & REGULATOR ASSEMBLY

3LP-81960-01-00

Unavailable

9

BOLT(8CP)

97017-06014-00

$8.49

10

CLAMP(83R)

90461-08113-00

Unavailable

11

RELAY ASSY

25G-81950-02-00

$47.99

12

RECTIFIER 2

4U8-81980-M0-00

Unavailable

13

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

14

HORN

1RM-83371-00-00

Unavailable

15

HORN

4NK-83371-00-00

Unavailable

16

BOLT,SOCKET

91317-06012-00

Unavailable

17

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

19

SENDER UNIT ASSEMBLY, FUEL METER

42H-85752-01-00

Unavailable

20

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

REAR REFLECTOR ASY

2EN-85130-00-00

Unavailable

24

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
