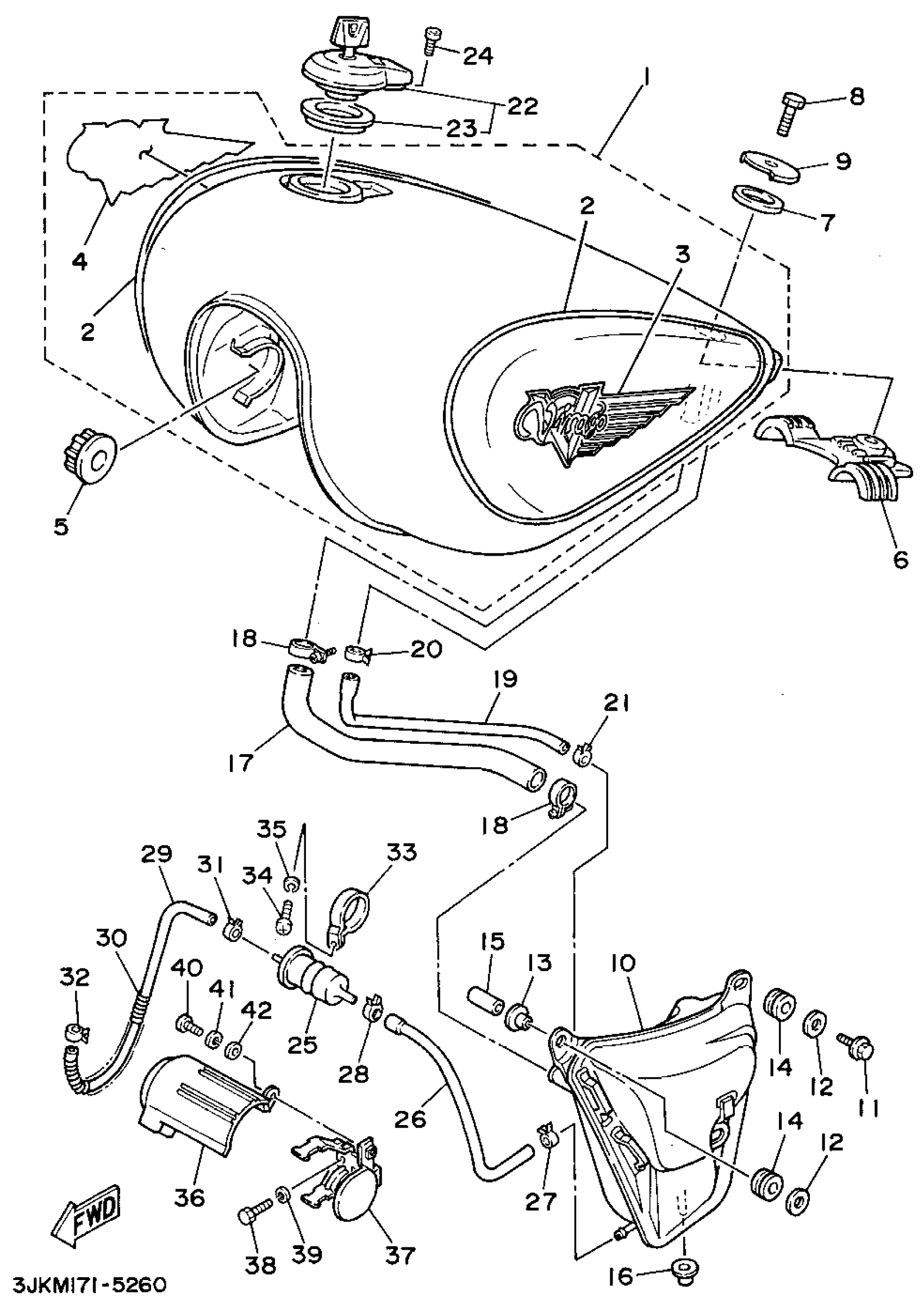

Yamaha XV1100GC (VIRAGO 1100 CA) 1995 FUEL TANK Diagram
#
1
FUEL TANK COMP.
1TE-24110-00-X6
Unavailable
1
FUEL TANK
3DR-24110-00-08
Unavailable
2
. GRAPHIC SET (RED-E SPARKLE)
3JK-24240-70-00
Unavailable
2
. GRAPHIC SET (VERY DARK BLUE METALLIC 3)
3JK-24240-80-00
Unavailable
3
. EMBLEM 1 (RED-E SPARKLE)
3JK-24161-10-00
Unavailable
3
. EMBLEM 1 (VERY DARK BLUE METALLIC 3)
3JK-24161-20-00
Unavailable
4
. EMBLEM 2 (RED-E SPARKLE)
3JK-24162-10-00
Unavailable
4
. EMBLEM 2 (VERY DARK BLUE METALLIC 3)
3JK-24162-20-00
Unavailable
6
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
10
SUB TANK ASSEMBLY
42H-24280-00-00
Unavailable
11
BOLT,SOCKET
91317-06020-00
Unavailable
12
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
13
COLLAR(42G)
90387-062L2-00
Unavailable
14
GROMMET (1E5)
90480-13163-00
Unavailable
15
SPACER
90560-06258-00
Unavailable
16
GROMMET(42G)
90480-10408-00
Unavailable
17
PIPE 6
42H-24316-00-00
Unavailable
18
HOSE CLAMP ASSY(4JT)
90450-28073-00
Unavailable
19
PIPE 7
42H-24317-00-00
Unavailable
20
CLIP (7K7)
90467-11044-00
Unavailable
21
CLIP(3BM)
90467-10135-00
Unavailable
22
CAP ASSY
4X7-24602-10-00
Unavailable
23
GASKET, TANK CAP
4X7-24612-00-00
Unavailable
24
BOLT, SOCKET
91317-05010-00
Unavailable
25
FILTER ASSY
1FK-24560-10-00
Unavailable
26
PIPE, FUEL 1
42H-24311-00-00
Unavailable
27
CLIP(3BM)
90467-10135-00
Unavailable
28
CLIP (7K7)
90467-11044-00
Unavailable
29
PIPE 5
42H-24315-00-00
Unavailable
30
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
31
CLIP (7K7)
90467-11044-00
Unavailable
32
CLIP(3BM)
90467-10135-00
Unavailable
33
CLAMP
90465-08256-00
Unavailable
34
SCREW, PAN
98507-06010-00
Unavailable
35
WASHER, SPRING
92907-06100-00
Unavailable
36
COVER
42H-24452-00-00
Unavailable
37
BRACKET, FUEL PUMP
3JK-24491-00-00
Unavailable
38
BOLT, HEXAGON
97017-06012-00
Unavailable
39
WASHER, SPRING
92907-06100-00
Unavailable
40
SCREW, PAN
98517-06012-00
Unavailable
41
WASHER, SPRING
92907-06100-00
Unavailable
42
WASHER(6TA)
92907-06600-00
Unavailable
