Description

Price

1

SOLENOID

5A8-86110-50-00

Unavailable

2

RELAY ASSY

25G-81950-02-00

$47.99

3

CORD, STARTER MOTOR

3JK-81815-00-00

Unavailable

4

NUT(JN5)

95317-06700-00

$8.49

5

WASHER, SPRING

92907-06100-00

$4.25

6

NUT, HEXAGON SMALL

95317-08700-00

$9.49

7

WASHER(JN5)

92907-08100-00

$8.49

8

RECTIFIER & REGULATOR ASSY

42X-81960-A1-00

$336.99

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

WASHER, SPRING

92907-06100-00

$4.25

11

WASHER(6TA)

92907-06600-00

$2.72

12

CLAMP

90465-10264-00

Unavailable

13

RELAY ASSY

25G-81950-02-00

$47.99

14

RECTIFIER 2

4U8-81980-M0-00

Unavailable

15

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

16

HORN

1RM-83371-00-00

Unavailable

17

HORN

4NK-83371-00-00

Unavailable

18

BOLT,SOCKET

91317-06012-00

Unavailable

19

REFLECTOR ASSEMBLY

42X-85110-00-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

21

SENDER UNIT ASSEMBLY, FUEL METER

42H-85752-01-00

Unavailable

22

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

25

REAR REFLECTOR ASY

2EN-85130-00-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

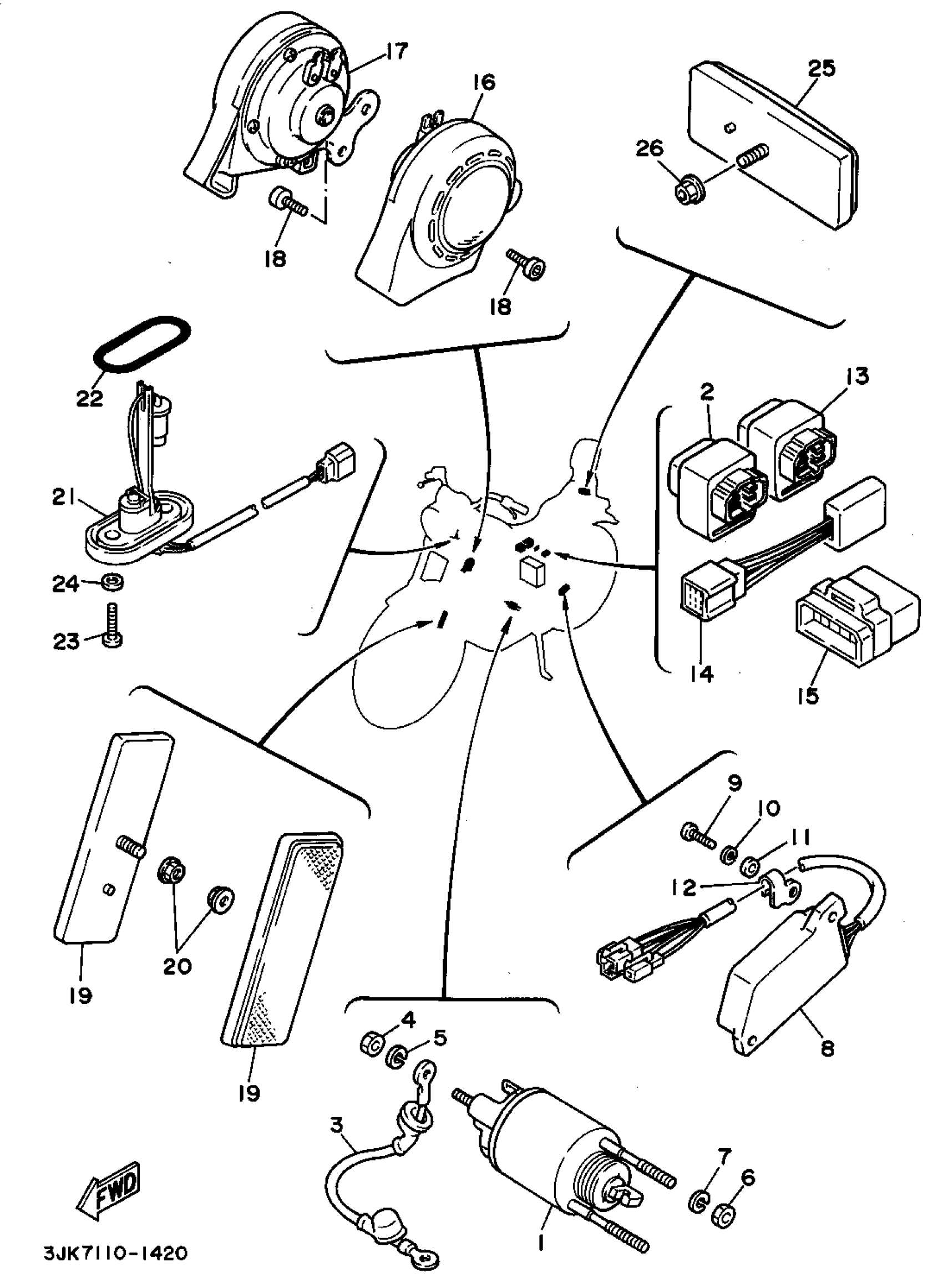

Yamaha XV1100GC (VIRAGO 1100 CA) 1995 ELECTRICAL 2 Diagram

SOLENOID

RELAY ASSY

CORD, STARTER MOTOR

NUT(JN5)

WASHER, SPRING

NUT, HEXAGON SMALL

WASHER(JN5)

RECTIFIER & REGULATOR ASSY

SCREW, PAN HEAD(3TJ)

WASHER, SPRING

WASHER(6TA)

CLAMP

RELAY ASSY

RECTIFIER 2

FLASHER RELAY ASSY

HORN

HORN

BOLT,SOCKET

REFLECTOR ASSEMBLY

NUT, FLANGE(3GM)

SENDER UNIT ASSEMBLY, FUEL METER

GASKET, SENDER UNIT

SCREW 256241430000

WASHER, PLATE(3MB)

REAR REFLECTOR ASY

NUT, FLANGE(3GM)
