- XV1100G (VIRAGO 1100) 1995
FRONT FORK

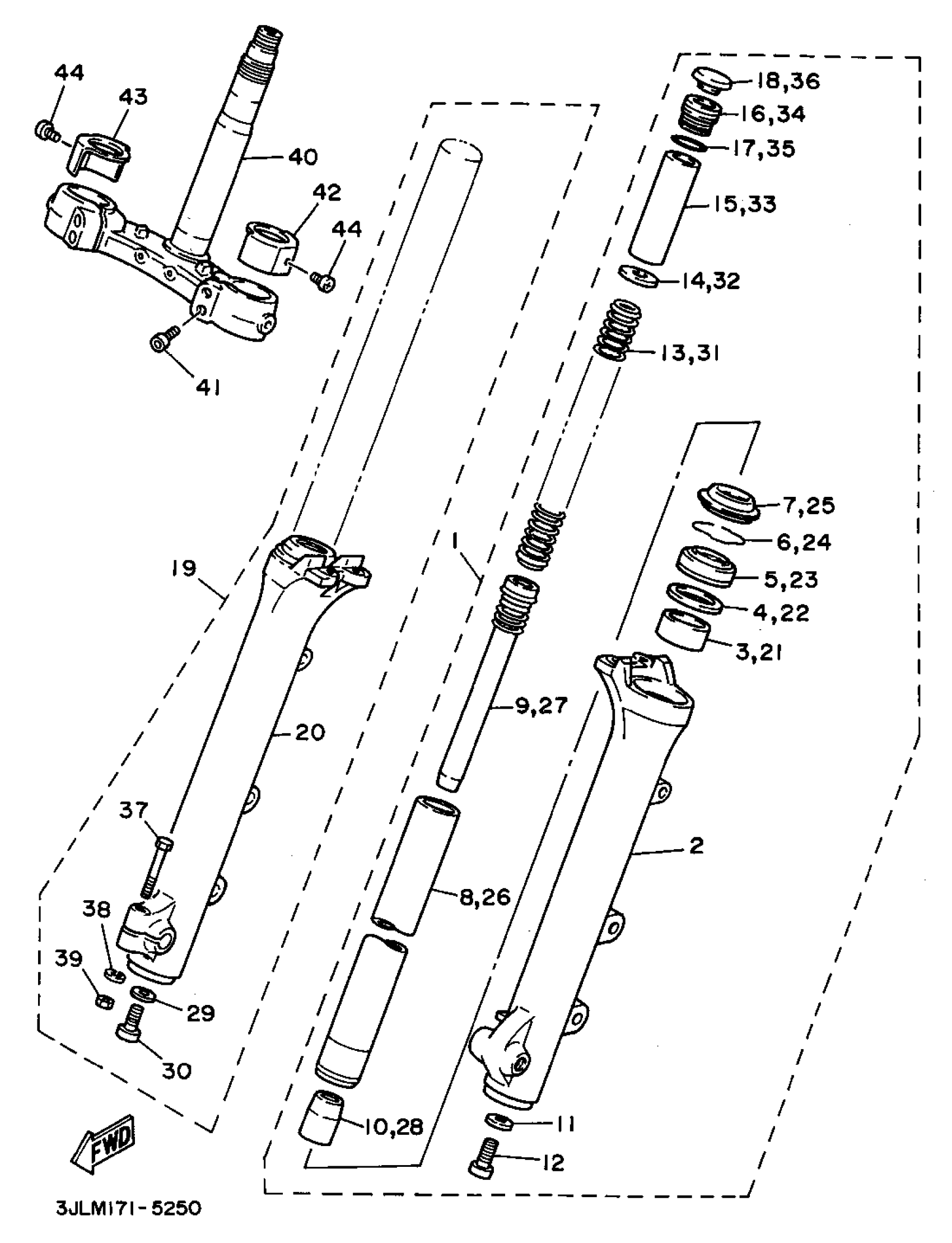

Yamaha XV1100G (VIRAGO 1100) 1995 FRONT FORK Diagram
#
1
FRONT FORK ASY(LH)
3JK-23102-13-00
Unavailable
2
TUBE,OUTER(LEFT)
3JK-23126-10-00
Unavailable
8
INNER TUBE 1
99999-02981-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
13
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
14
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
15
. SPACER
42X-23118-00-00
Unavailable
16
. BOLT, CAP
31A-23111-31-00
Unavailable
17
O-RING
1W1-23114-L0-00
Unavailable
18
CAP, FRONT FORK
42H-23168-00-00
Unavailable
19
FRONT FORK ASY(RH)
3JK-23103-13-00
Unavailable
20
TUBE,OUTER(RIGHT)
3JK-23136-10-00
Unavailable
26
INNER TUBE 1
99999-02981-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
31
. SPRING, FRONT FORK
42H-23141-00-00
Unavailable
32
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
33
. SPACER
42X-23118-00-00
Unavailable
34
. BOLT, CAP
31A-23111-31-00
Unavailable
35
O-RING
1W1-23114-L0-00
Unavailable
36
CAP, FRONT FORK
42H-23168-00-00
Unavailable
37
BOLT (1E6)
90101-08340-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
NUT(6L2)
95333-08600-00
Unavailable
40
UNDER BRACKET COMP.
2AE-23340-30-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
COVER (L.H)
1RM-23132-00-00
Unavailable
43
COVER (R.H)
1RM-23132-10-00
Unavailable
44
SCREW,PANHEAD (EG9)
98580-05006-00
Unavailable
