Description

Price

1

AXLE, MAIN

1TA-17411-00-00

Unavailable

2

GEAR, 4TH PINION

5EL-17141-00-00

$94.99

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP(JF7)

99009-25400-00

$8.49

5

GEAR, 2ND/3RD PINION (24/28T)

4X7-17121-00-00

Unavailable

6

GEAR, 5TH PINION (34T)

42X-17151-00-00

Unavailable

7

WASHER PLATE 328171160000

90201-20276-00

$8.49

8

CIRCLIP(1AR)

99009-20400-00

$8.49

9

BEARING (3Y1)

93306-30525-00

$63.99

10

OIL SEAL (4X7)

93104-20068-00

$14.99

11

BEARING

93306-30443-00

Unavailable

12

DRIVE AXLE ASSEMBLY

4X7-17402-00-00

Unavailable

13

GEAR, 2ND WHEEL (40T)

4X7-17221-00-00

Unavailable

14

WASHER (3J3)

90209-27192-00

$8.49

15

CIRCLIP (3J3)

93440-30077-00

$10.49

16

GEAR , 5TH WHEEL (29T)

42X-17251-00-00

Unavailable

17

GEAR, 3RD WHEEL (36T)

4X7-17231-00-00

Unavailable

18

WASHER (3J3)

90209-27192-00

$8.49

19

CIRCLIP (3J3)

93440-30077-00

$10.49

20

GEAR, 4TH WHEEL (32T)

4X7-17241-00-00

Unavailable

21

GEAR, 1ST WHEEL (39T)

1TA-17211-00-00

Unavailable

22

GEAR,MIDDLE DRIVE

4PP-17582-00-00

Unavailable

23

BEARING(1YW)

93306-20461-00

Unavailable

24

BRG,R-B 6205DU8 52MM NK

93306-20550-00

Unavailable

25

GEAR,MIDDLE DRIVEN

4PP-17583-00-00

Unavailable

26

BRG,R-B 16012 95MM 276G NT

93316-01201-00

Unavailable

27

BRG,R-B 6912 85MM 189G NK

93306-91201-00

Unavailable

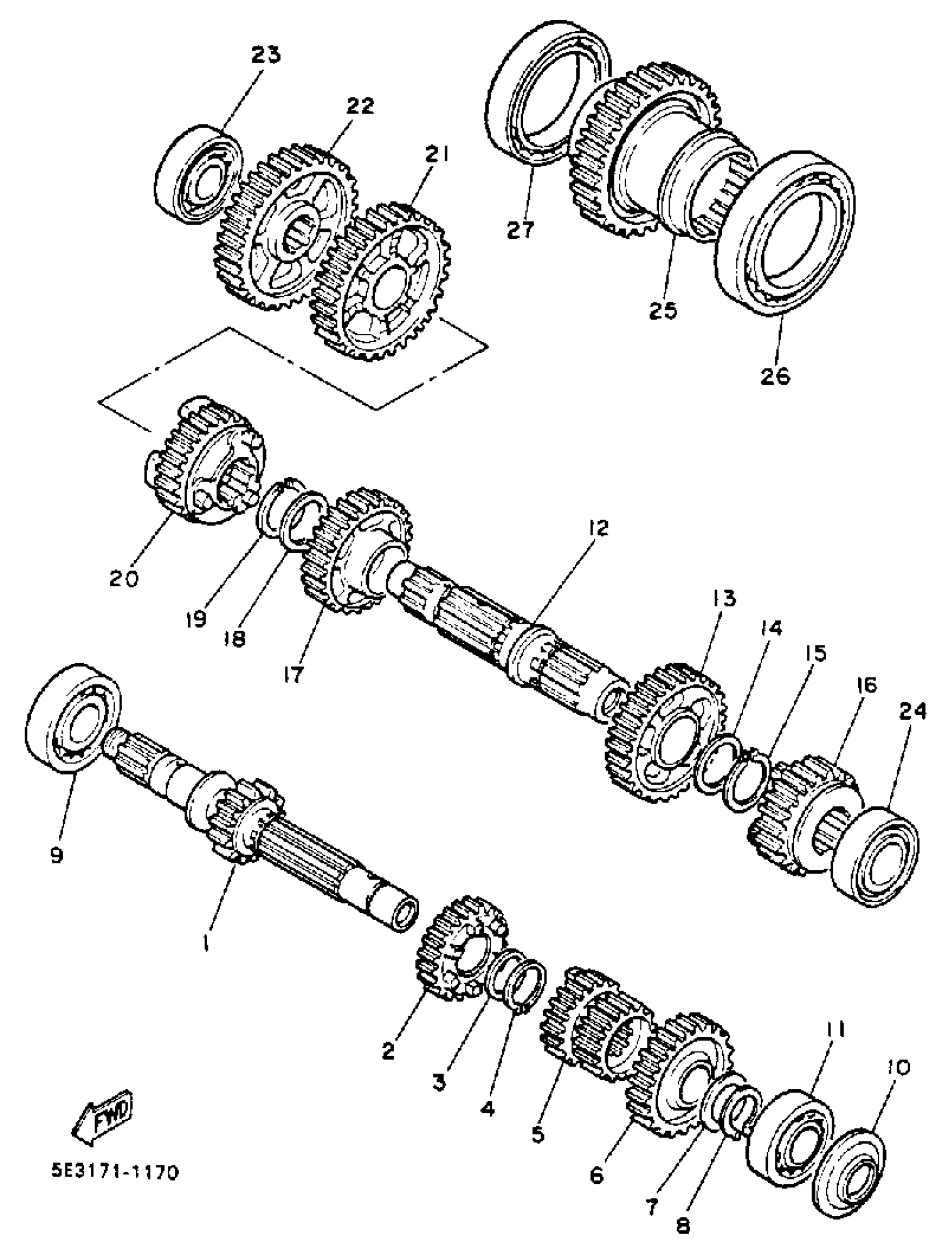

Yamaha XV1100EC (VIRAGO 1100 CA) 1993 TRANSMISSION Diagram

AXLE, MAIN

GEAR, 4TH PINION

WASHER (3J3)

CIRCLIP(JF7)

GEAR, 2ND/3RD PINION (24/28T)

GEAR, 5TH PINION (34T)

WASHER PLATE 328171160000

CIRCLIP(1AR)

BEARING (3Y1)

OIL SEAL (4X7)

BEARING

DRIVE AXLE ASSEMBLY

GEAR, 2ND WHEEL (40T)

WASHER (3J3)

CIRCLIP (3J3)

GEAR , 5TH WHEEL (29T)

GEAR, 3RD WHEEL (36T)

WASHER (3J3)

CIRCLIP (3J3)

GEAR, 4TH WHEEL (32T)

GEAR, 1ST WHEEL (39T)

GEAR,MIDDLE DRIVE

BEARING(1YW)

BRG,R-B 6205DU8 52MM NK

GEAR,MIDDLE DRIVEN

BRG,R-B 16012 95MM 276G NT

BRG,R-B 6912 85MM 189G NK
