Description

Price

1

STARTER CLUTCH ASSY

3LP-15570-00-00

Unavailable

2

CIRCLIP(13M)

99009-13400-00

$9.49

3

SHAFT 1

4X7-15521-00-00

Unavailable

4

O-RING (26H)

93210-14579-00

$7.49

5

WHEEL, STARTER (23T)

5A8-15524-00-00

Unavailable

6

GEAR, IDLER 1

1TA-15512-00-00

Unavailable

7

GEAR, IDLER SET

3LP-W1551-01-00

Unavailable

8

COLLAR (4X7)

90387-172E5-00

Unavailable

9

SPRING, COMPRESSION (4X7)

90501-15636-00

$16.99

10

COLLAR (4X7)

90387-170E5-00

$15.99

11

DRIVE LEVER ASSEMBLY

5A8-15550-00-00

Unavailable

12

OIL SEAL (5A8)

93102-10247-00

Unavailable

13

COLLAR 2

5A8-15542-01-00

Unavailable

14

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

15

LEVER, DRIVE

5A8-15556-00-00

Unavailable

16

SPRING, TORSION

90508-26494-00

Unavailable

17

SCREW (5A8)

90149-08166-00

Unavailable

18

GASKET

3EG-15568-00-00

Unavailable

19

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

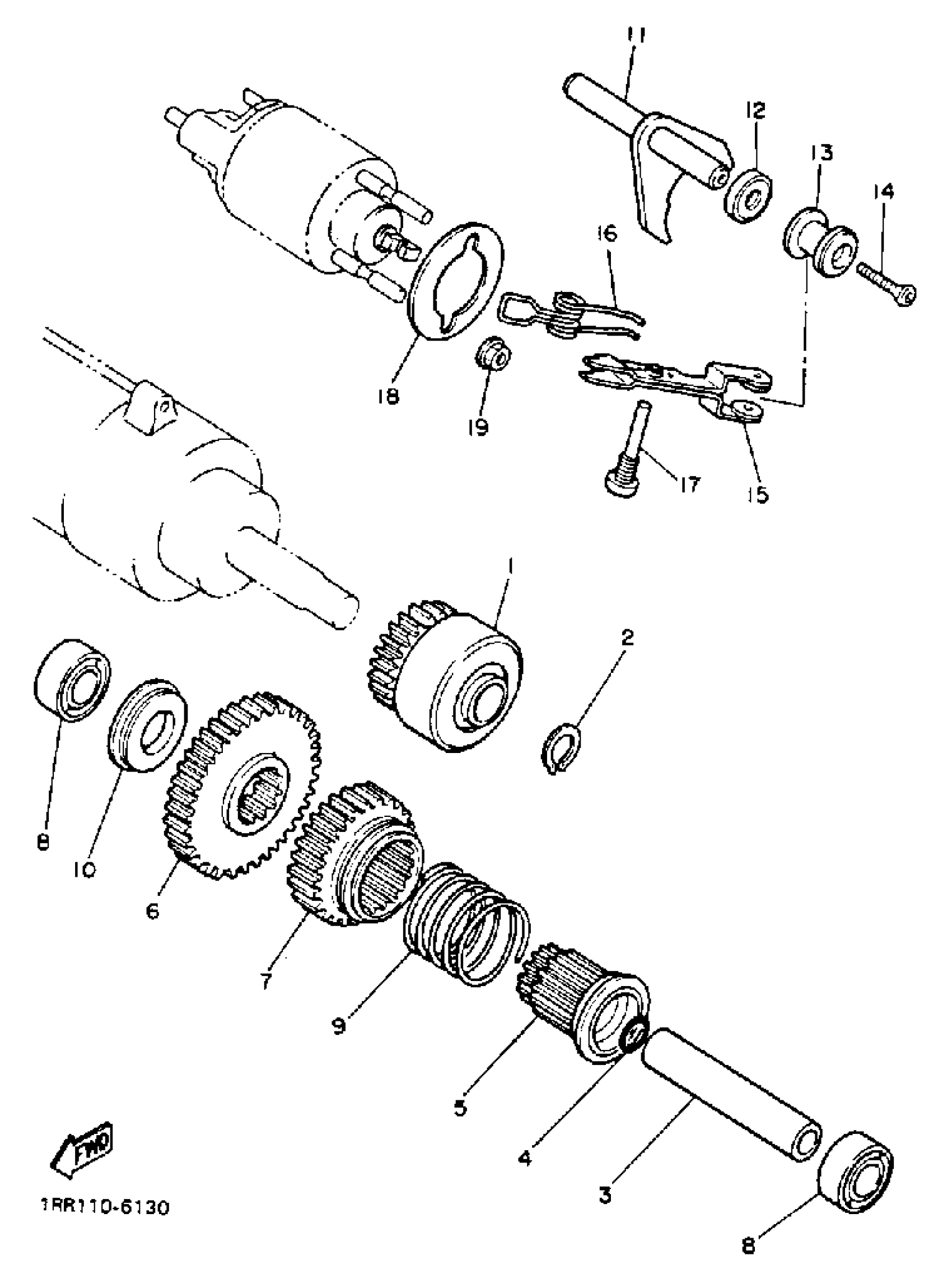

Yamaha XV1100EC (VIRAGO 1100 CA) 1993 STARTER CLUTCH Diagram

STARTER CLUTCH ASSY

CIRCLIP(13M)

SHAFT 1

O-RING (26H)

WHEEL, STARTER (23T)

GEAR, IDLER 1

GEAR, IDLER SET

COLLAR (4X7)

SPRING, COMPRESSION (4X7)

COLLAR (4X7)

DRIVE LEVER ASSEMBLY

OIL SEAL (5A8)

COLLAR 2

SCREW, COUNTERSUNK (5H0)

LEVER, DRIVE

SPRING, TORSION

SCREW (5A8)

GASKET

NUT, FLANGE(7NB)
