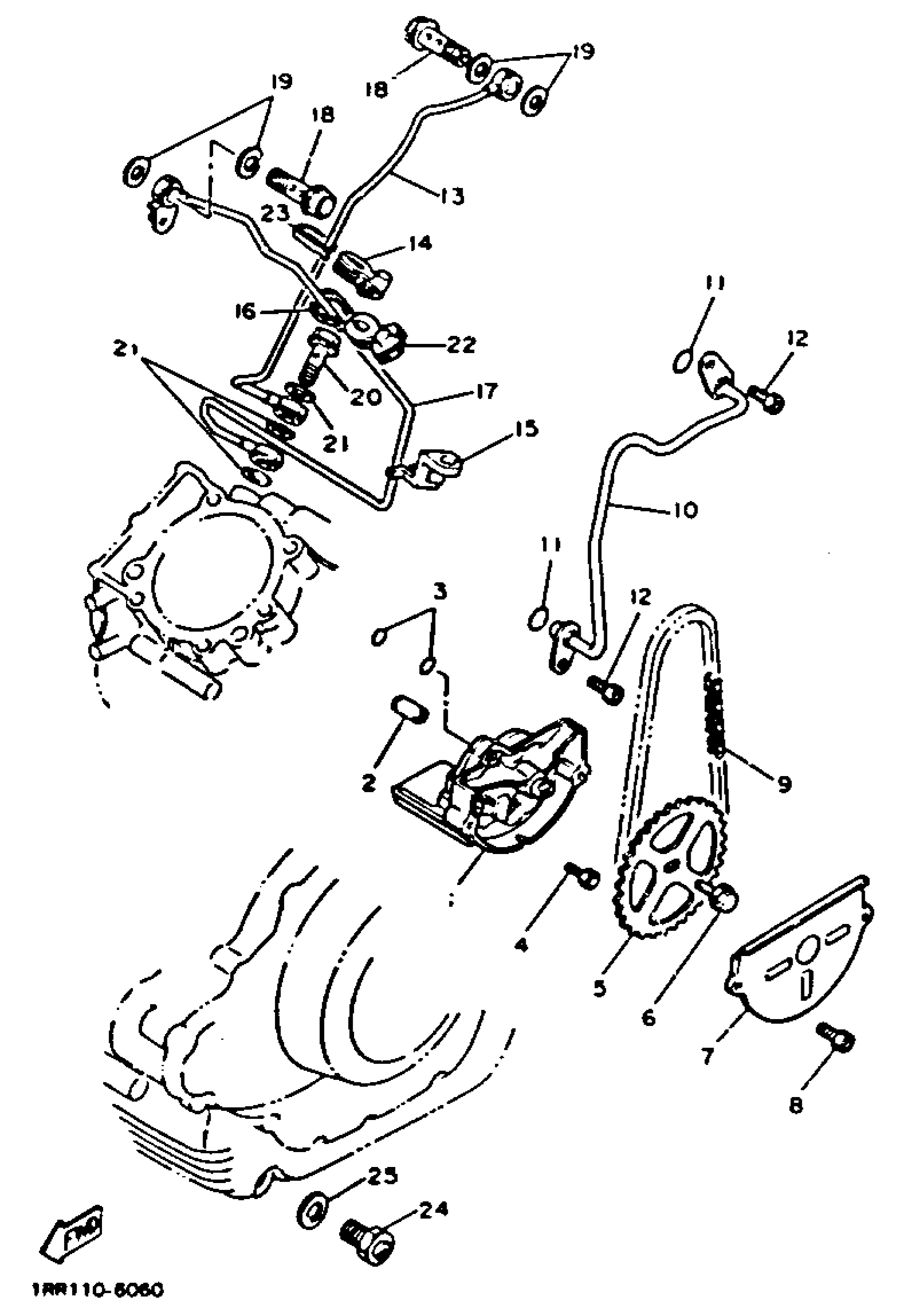

Yamaha XV1100DC (VIRAGO 1100 CA) 1992 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

10L-13300-00-00

Unavailable

2

PIN, DOWEL(3XW)

91808-16023-00

$5.37

3

O-RING

93210-07438-00

$5.87

4

BOLT,SOCKET

91317-06040-00

$3.28

5

SPROCKET, DRIVEN

4X7-13355-00-00

$17.88

6

BOLT, WASHER BASED (4H7)

90105-06154-00

$3.72

7

COVER, PUMP GEAR

10L-13327-00-00

Unavailable

8

BOLT,SOCKET

91317-06010-00

$6.59

9

CHAIN, OIL PUMP (4H7)

94580-25066-00

$10.81

10

PIPE, DELIVERY 2

4X7-13171-00-00

Unavailable

11

O-RING

93210-07438-00

$5.87

12

BOLT,SOCKET

91317-06010-00

$6.59

13

OIL PIPE COMP. 1

4X7-13405-00-00

Unavailable

14

CLAMP

4X7-15485-01-00

$12.35

15

CLAMP 2

4X7-15484-00-00

Unavailable

16

CLIP (4X7)

90468-05113-00

Unavailable

17

OIL PIPE COMP. 2

1RM-13406-00-00

Unavailable

18

BOLT, UNION

90401-16067-00

Unavailable

19

GASKET (4X7)

90430-17168-00

Unavailable

20

BOLT, UNION(42X)

90401-10102-00

Unavailable

21

GASKET (4X7)

90430-15169-00

Unavailable

22

CLAMP

4X7-15485-01-00

$12.35

23

CLIP (4X7)

90468-05113-00

Unavailable

24

PLUG

3JL-13455-00-00

Unavailable

25

GASKET

214-11198-01-00

Unavailable
