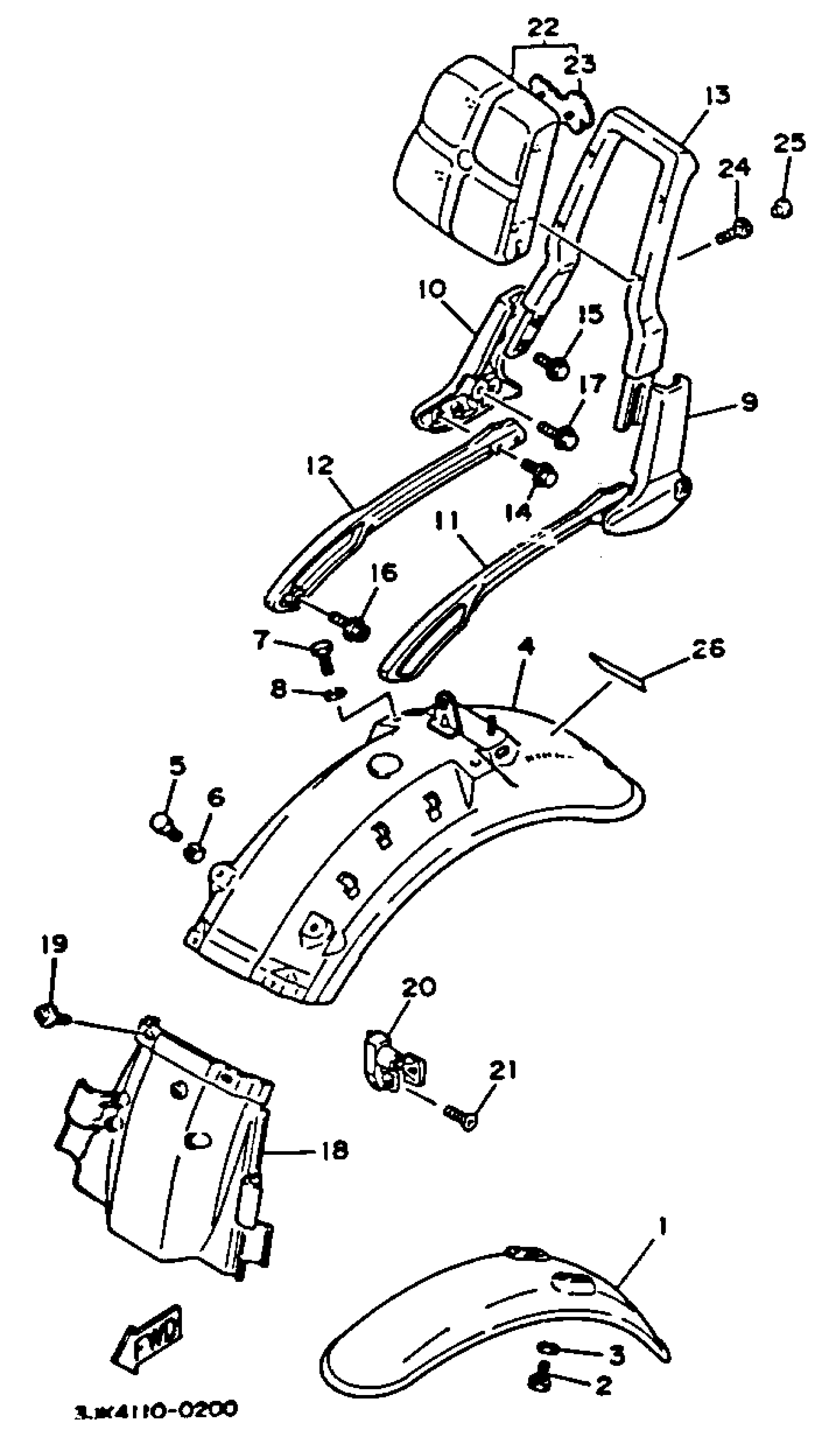

Yamaha XV1100DC (VIRAGO 1100 CA) 1992 FENDER Diagram
#
Description
Price
1
FENDER, FRONT
1MY-21510-00-AU
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
FENDER, REAR
99999-02953-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
9
STAY 1
1RM-2164F-00-00
Unavailable
10
STAY 2
1RM-2164G-00-00
Unavailable
11
STAY 3
3JK-2164H-00-00
Unavailable
12
STAY 4
3JK-2164J-00-00
Unavailable
13
GRIP 1
42H-2164A-02-00
Unavailable
16
SCREW
90149-08225-00
Unavailable
17
BOLT, FLANGE
90105-10153-00
Unavailable
18
GUARD, MUD
42X-21629-00-00
Unavailable
19
SCREW, WITH WASHER
90159-06128-00
Unavailable
20
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
21
SCREW (4G1)
90149-06154-00
Unavailable
22
. BACK REST ASSEMBLY
1TA-2840F-00-00
Unavailable
23
.. EMBLEM
42H-24786-00-00
Unavailable
24
BOLT, SOCKET
91314-06035-00
Unavailable
25
PLUG(42H)
90338-06162-00
Unavailable
26
EMBLEM, YAMAHA
99246-00080-00
Unavailable
