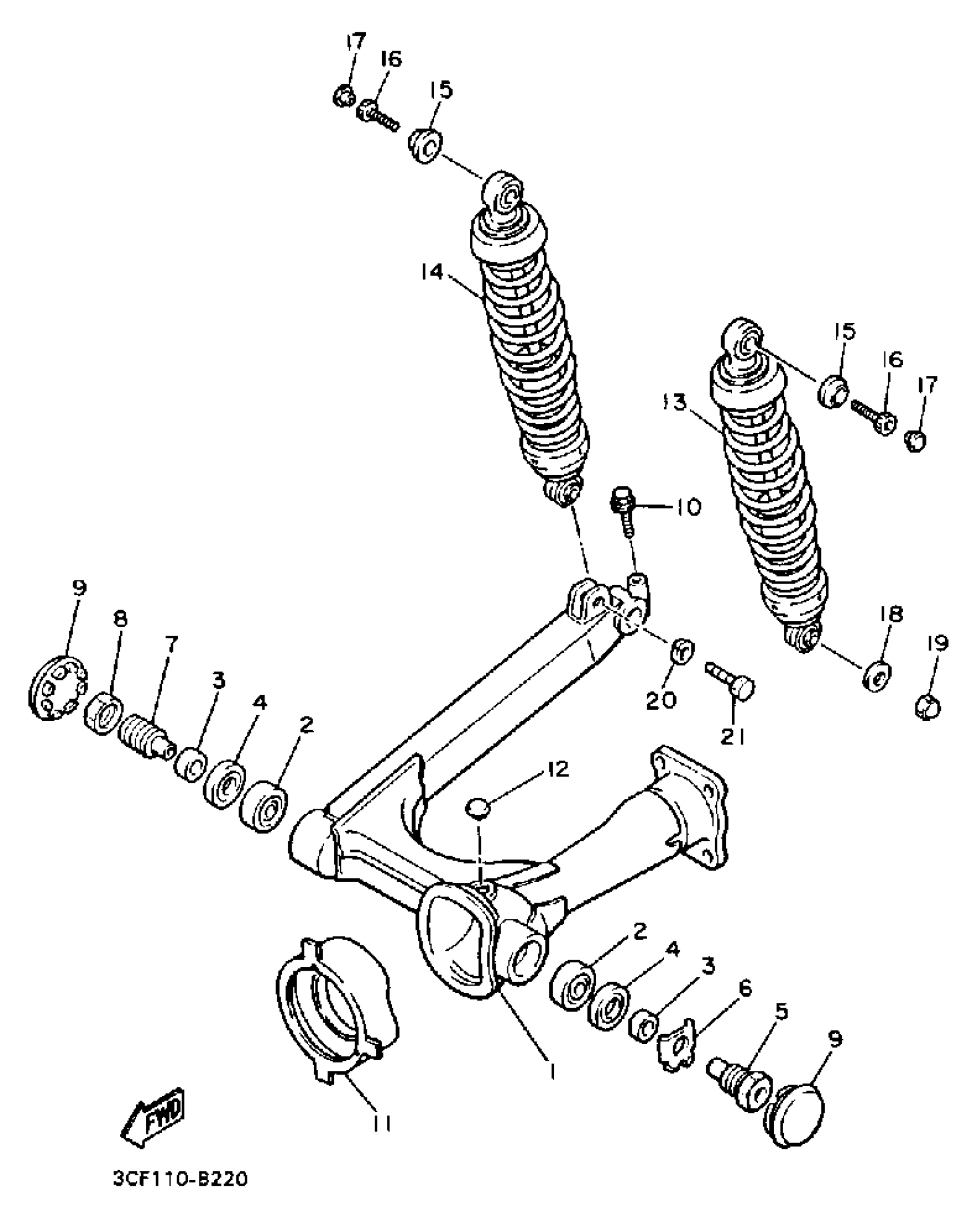

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 SWING ARM REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM COMP.

1RM-22110-01-35

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

3

COLLAR

90387-17011-00

$15.99

4

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

5

SHAFT, PIVOT

42X-22141-00-00

Unavailable

6

WASHER, LOCK(10H)

90215-22238-00

$11.49

7

SHAFT, PIVOT

15B-22141-00-00

Unavailable

8

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

9

COVER

2H7-2219X-00-00

$35.99

10

BOLT, FLANGE(3EF)

95024-08035-00

$8.49

11

BOOT, RUBBER

4X7-22189-01-00

Unavailable

12

PLUG (4X7)

90338-20113-00

Unavailable

13

SHK ABSRBR ASYREAR

3JK-22210-01-00

Unavailable

14

SHOCKALSASYRR

3JK-22220-01-00

Unavailable

15

WASHER 1

57A-22243-01-00

Unavailable

16

BOLT,SOCKET

91314-08020-00

Unavailable

17

PLUG(42X)

90338-08163-00

Unavailable

18

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

19

NUT, CROWN(3BM)

90176-10073-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

BOLT,DOME HEAD

90106-10052-00

Unavailable
