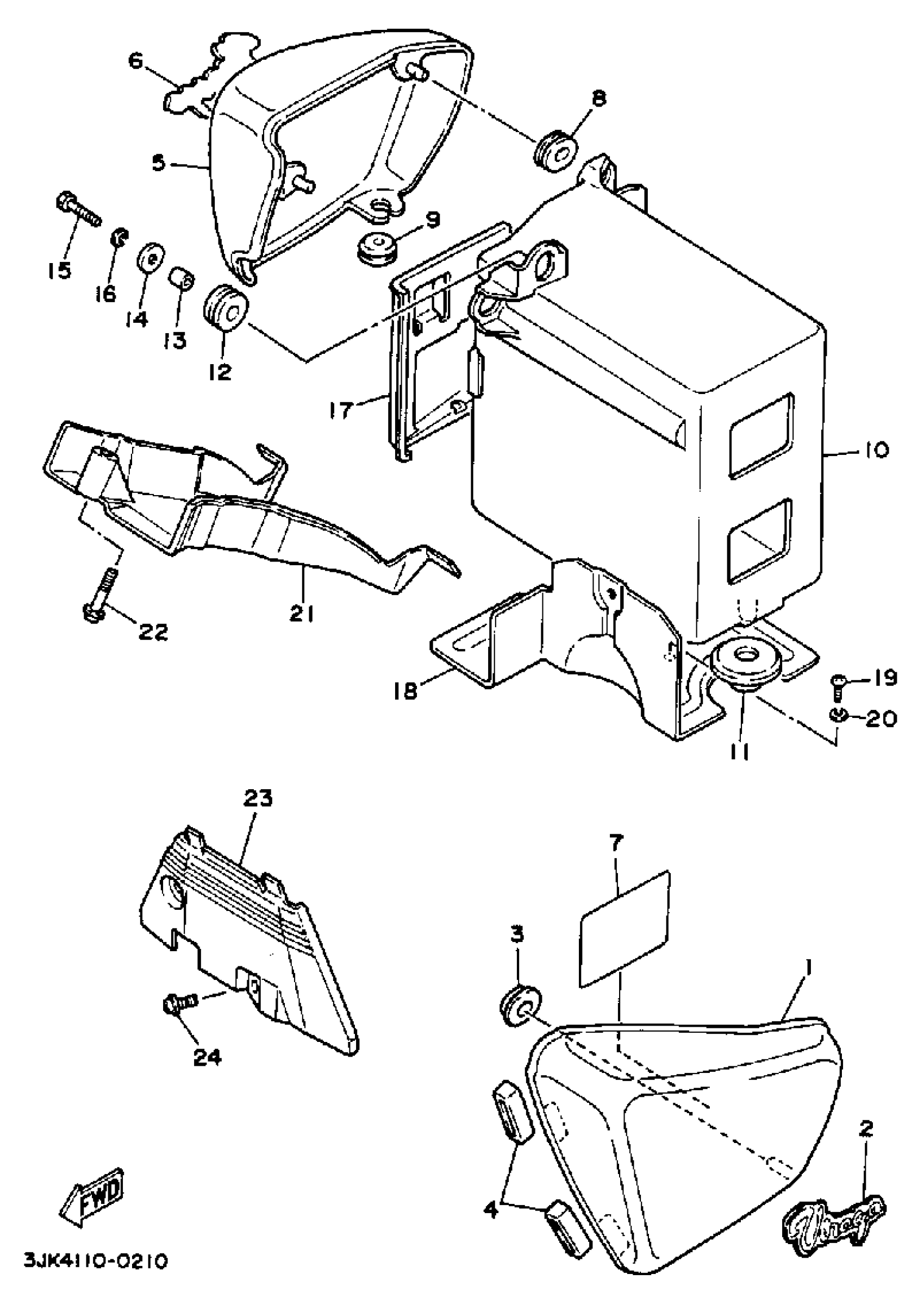

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

42X-21711-00-33

$121.99

2

EMBLEM 2 (NEW BLACK BLUE)

56F-21782-00-00

Unavailable

3

GROMMET(41Y)

90480-01401-00

$8.49

4

DAMPER, SIDE COVER

466-21717-00-00

$10.99

5

COVER, SIDE 2

42X-21721-00-33

$71.99

6

EMBLEM 2 (NEW BLACK BLUE)

56F-21782-00-00

Unavailable

7

PLATE, EPA CAL 2

3JK-2179R-21-00

Unavailable

7

PLATE, EPA 1 U49

3JK-2179V-21-00

Unavailable

8

GROMMET(41Y)

90480-01401-00

$8.49

9

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

10

BOX, TOOL

42X-21171-00-00

Unavailable

11

GROMMET(42X)

90480-20384-00

$5.60

12

GROMMET (2N3)

90480-16233-00

$8.49

13

COLLAR

90387-06113-00

$11.49

14

WASHER, PLATE

90201-06380-00

$0.60

15

BOLT, HEXAGON

97017-06020-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

LID

42X-28185-00-00

Unavailable

18

COVER

42X-2172W-02-00

Unavailable

19

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

PLATE

42X-2176E-00-00

Unavailable

22

SCREW, WITH WASHER

90159-06110-00

Unavailable

23

COVER

42X-2117F-00-00

Unavailable

24

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable
