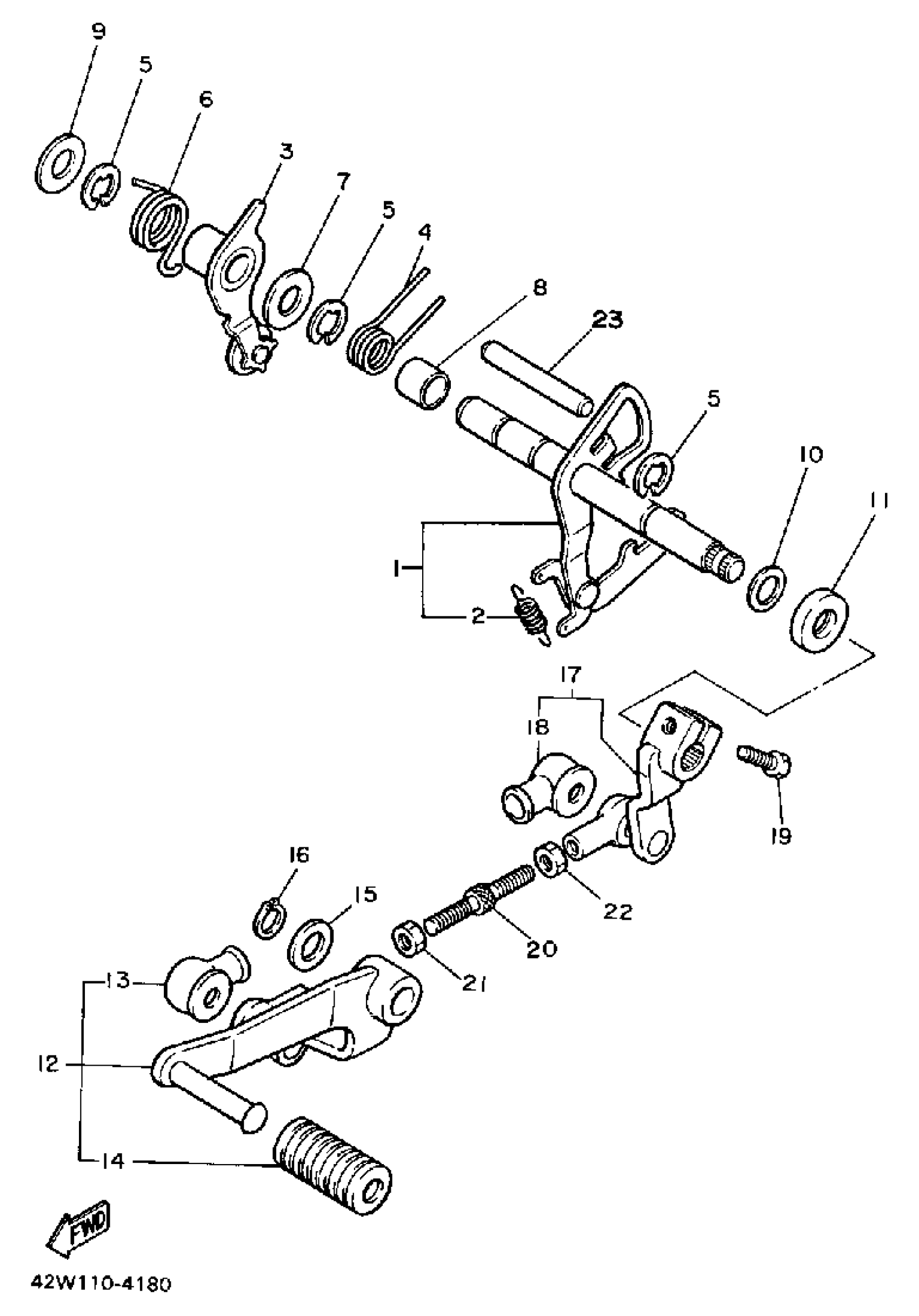

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSEMBLY

4X7-18120-01-00

Unavailable

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

STOPPER LEVER ASSY

5EL-18140-00-00

Unavailable

4

SPRING, TORSION (4H7)

90508-32535-00

$10.49

5

CIRCLIP

99006-10600-00

$9.49

6

SPRING, TORSION (4X7)

90508-29531-00

$8.49

7

WASHER

90201-12588-00

$7.49

8

COLLAR

90387-12033-00

$7.49

9

WASHER

90201-12588-00

$7.49

10

WASHER PLATE 164185720000

90201-12166-00

$9.49

11

SEAL, OIL (30X)

93102-12321-00

$12.49

12

SHIFT PEDAL ASSY

42X-18110-01-00

Unavailable

13

COVER, DUST

2H9-18154-00-00

$5.49

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

16

CIRCLIP(10Y)

99009-12400-00

Unavailable

17

ARM, SHIFT

42X-18112-01-00

Unavailable

18

COVER, DUST

2H9-18154-00-00

$5.49

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

ROD, SHIFT

29L-18115-00-00

Unavailable

21

NUT (2H9)

90170-06228-00

Unavailable

22

NUT(650)

95380-06700-00

Unavailable

23

PIN, DOWEL (4H7)

93608-50158-00

Unavailable
