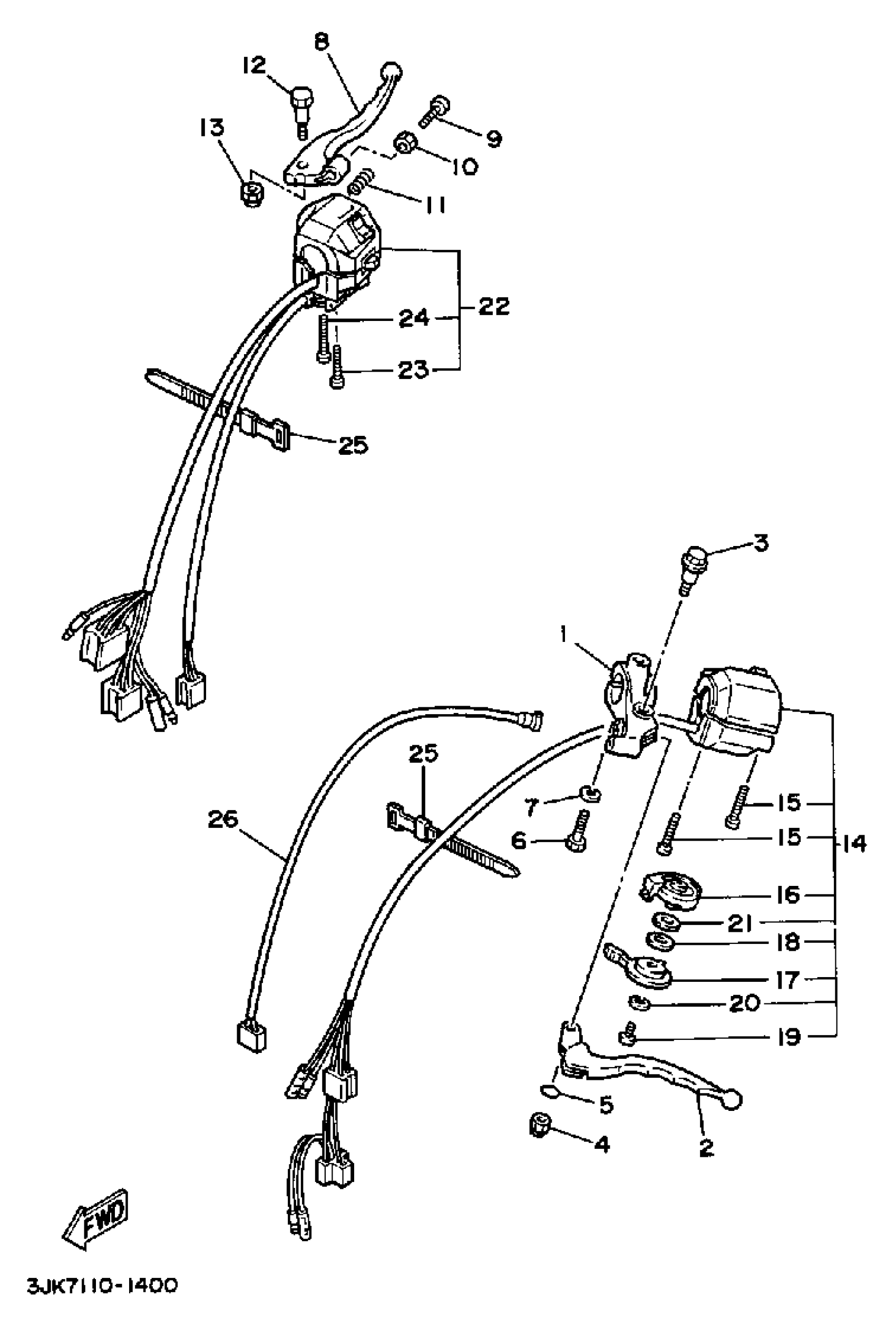

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER

10M-82911-00-00

Unavailable

2

LEVER 1

57A-83912-01-00

$44.99

3

BOLT (2YK1)

90109-06799-00

$4.99

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

O-RING (2H7)

93210-11368-00

$5.60

6

BOLT, HEXAGON

97007-06022-00

Unavailable

7

WASHER, SPRING

92907-06100-00

$4.25

8

LEVER 2

57A-83922-01-00

Unavailable

9

SCREW (2L0)

90149-06131-00

$8.49

10

NUT HEXAGON 306839270000

90170-06010-00

$8.49

11

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

12

BOLT (4L0)

90109-06577-00

$5.60

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

SWITCH, HANDLE 3

2UJ-83973-00-00

$255.99

15

SCREW, PAN

98507-05035-00

$8.49

16

COVER, STARTER

10M-83942-00-00

Unavailable

17

LEVER, STARTER

10M-83941-00-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

SCREW, PAN

98517-06008-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

SPACER

1AA-8397X-00-00

Unavailable

22

SWITCH, HANDLE 4

3CF-83972-00-00

Unavailable

23

SCREW, PAN

98507-05040-00

Unavailable

24

SCREW, PAN

98507-05045-00

Unavailable

25

BAND, SWITCH CORD

437-83936-01-00

Unavailable

26

SWITCH

3Y6-82917-00-00

Unavailable
