Description

Price

1

CAST WHEEL, FRONT

56W-25168-00-P1

Unavailable

2

SPACER

90560-15116-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

CAP, WHEEL (LEFT)

56W-2512A-00-00

Unavailable

7

CAP, WHEEL (RIGHT)

56W-2512A-10-00

Unavailable

8

BOLT,SOCKET

91317-06016-00

$1.25

9

PLUG(42H)

90338-06162-00

$11.49

10

100/90-19 57H BS EXEDRA

94110-1904N-00

Unavailable

11

VALVE, RIM (31A)

93900-00031-00

$16.99

11

VALVE, RIM (31A)

93900-00031-00

$16.99

12

BALANCER, WHEEL

5MT-25398-00-00

$17.49

12

BALANCER, WHEEL

5MT-25398-10-00

$17.49

12

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

13

COLLAR (1L9)

90387-15550-00

Unavailable

14

AXLE, WHEEL

42X-25181-00-00

Unavailable

15

GEAR UNIT ASSY

42X-25190-00-00

Unavailable

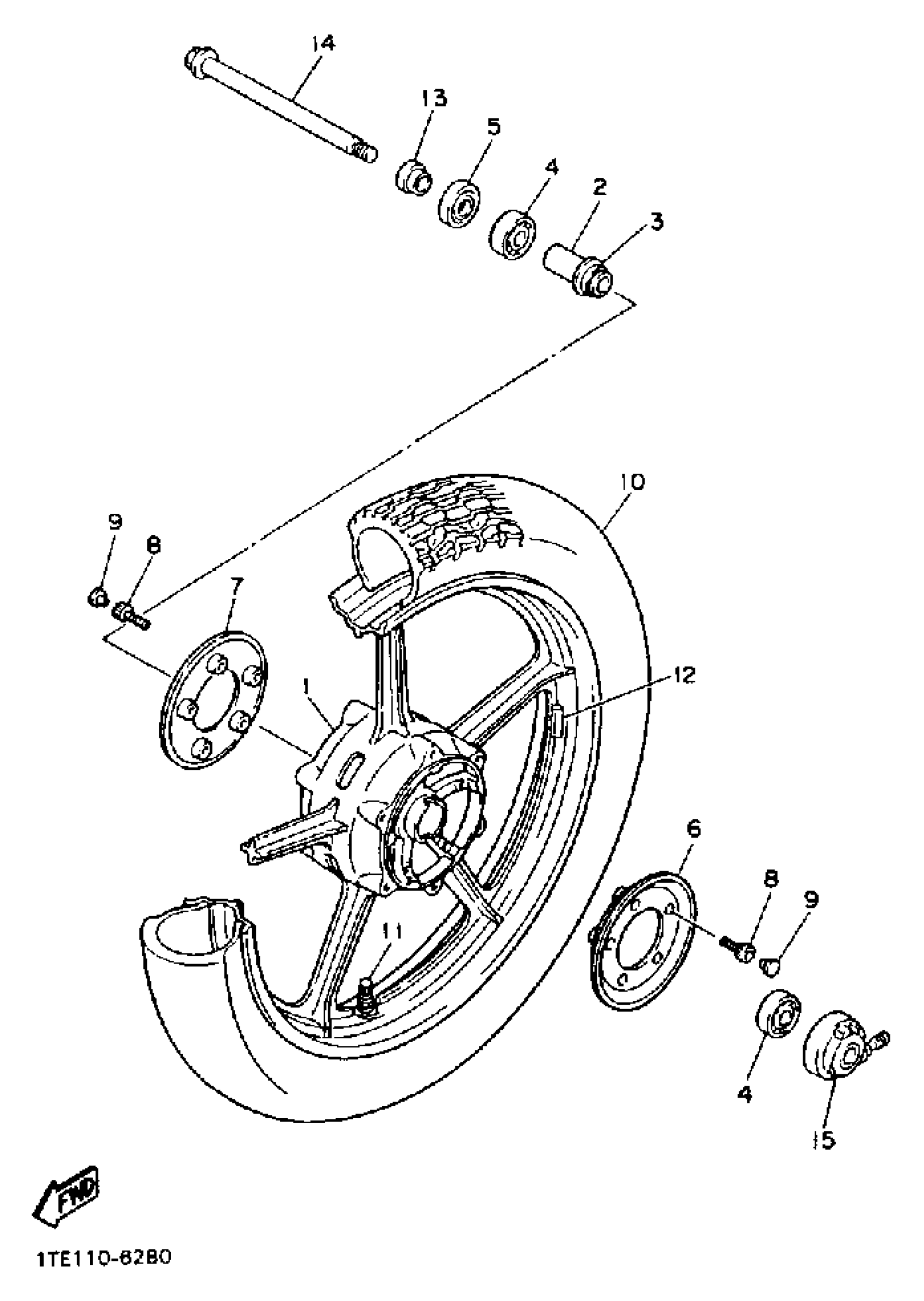

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 FRONT WHEEL Diagram

CAST WHEEL, FRONT

SPACER

FLANGE, SPACER

BEARING

OIL SEAL (22X42X7)

CAP, WHEEL (LEFT)

CAP, WHEEL (RIGHT)

BOLT,SOCKET

PLUG(42H)

100/90-19 57H BS EXEDRA

VALVE, RIM (31A)

VALVE, RIM (31A)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

COLLAR (1L9)

AXLE, WHEEL

GEAR UNIT ASSY
