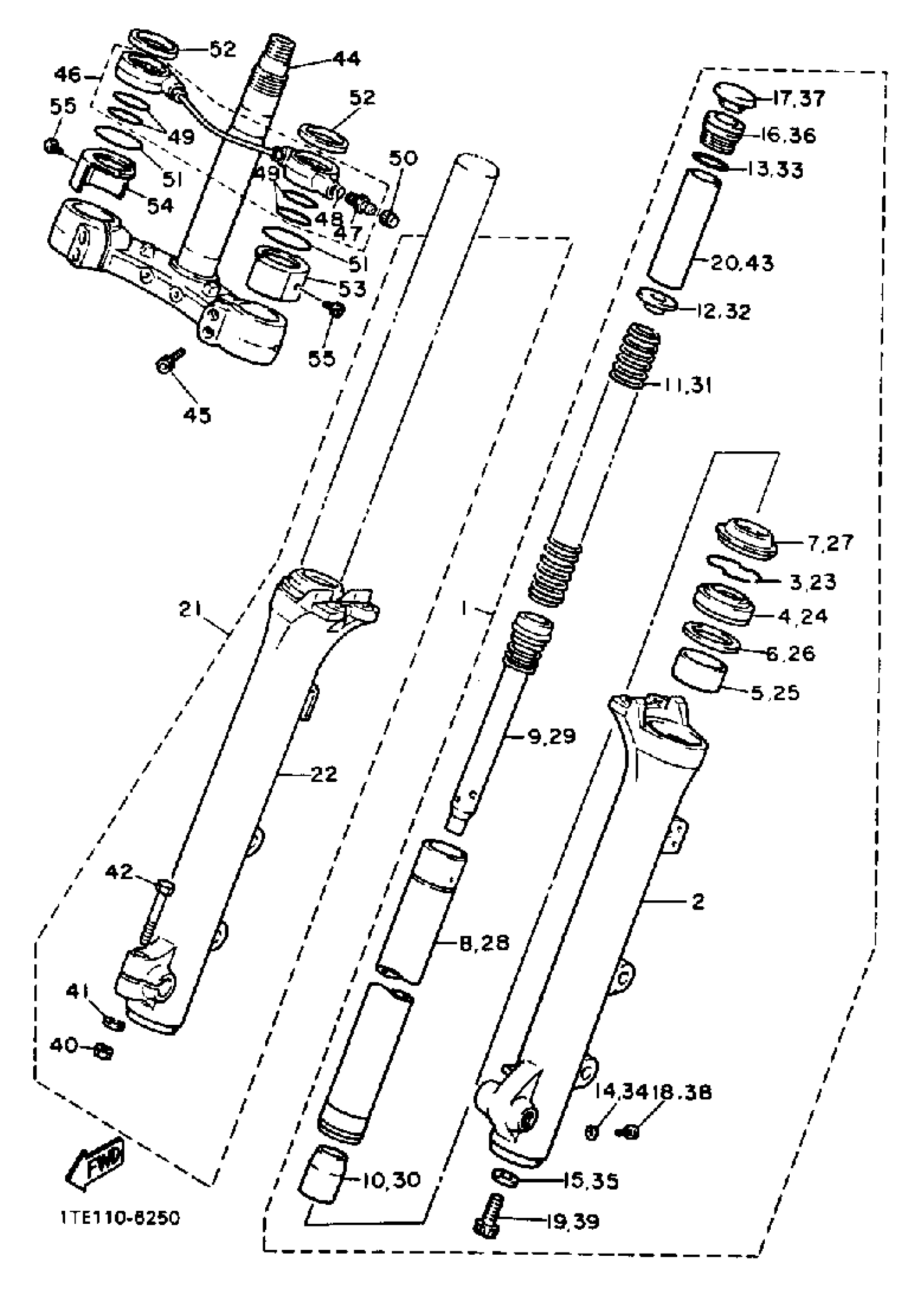

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY (L.H)
3JK-23102-00-00
Unavailable
2
TUBE,OUTER(LEFT)
3JK-23126-10-00
Unavailable
7
SEAL, DUST
42X-23144-01-00
Unavailable
8
. INNER TUBE COMP1
1TA-23110-00-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
11
. SPRING, FRONT FORK
3JK-23141-00-00
Unavailable
12
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
16
. BOLT, CAP
31A-23111-31-00
Unavailable
17
CAP, FRONT FORK
42H-23168-00-00
Unavailable
18
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
20
. SPACER
3JK-23118-00-00
Unavailable
21
FRONT FORK ASSEMBLY (R.H)
3JK-23103-00-00
Unavailable
22
TUBE,OUTER(RIGHT)
3JK-23136-10-00
Unavailable
27
SEAL, DUST
42X-23144-01-00
Unavailable
28
. INNER TUBE COMP1
1TA-23110-00-00
Unavailable
29
. CYLINDER COMP, FRONT FORK
33M-23170-00-00
Unavailable
31
. SPRING, FRONT FORK
3JK-23141-00-00
Unavailable
32
. SEAT, SPRING UPPER
1W1-23142-L0-00
Unavailable
36
. BOLT, CAP
31A-23111-31-00
Unavailable
37
CAP, FRONT FORK
42H-23168-00-00
Unavailable
38
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
40
NUT(6L2)
95333-08600-00
Unavailable
41
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
42
BOLT (1E6)
90101-08340-00
Unavailable
43
. SPACER
3JK-23118-00-00
Unavailable
44
UNDER BRACKET COMP.
2AE-23340-30-00
Unavailable
45
BOLT,SOCKET
91314-08030-00
Unavailable
46
HOSE ASSEMBLY
42H-2318J-00-00
Unavailable
47
AIR VALVE COMP.
23X-23190-L0-00
Unavailable
48
O-RING
3J2-23147-00-00
Unavailable
49
O-RING
42H-23188-00-00
Unavailable
50
CAP, AIR VALVE
10M-23184-01-00
Unavailable
51
. RING, SNAP
42H-23153-00-00
Unavailable
52
WASHER
2H7-23163-00-00
Unavailable
53
COVER (L.H)
1RM-23132-00-00
Unavailable
54
COVER (R.H)
1RM-23132-10-00
Unavailable
55
SCREW,PANHEAD (EG9)
98580-05006-00
Unavailable
