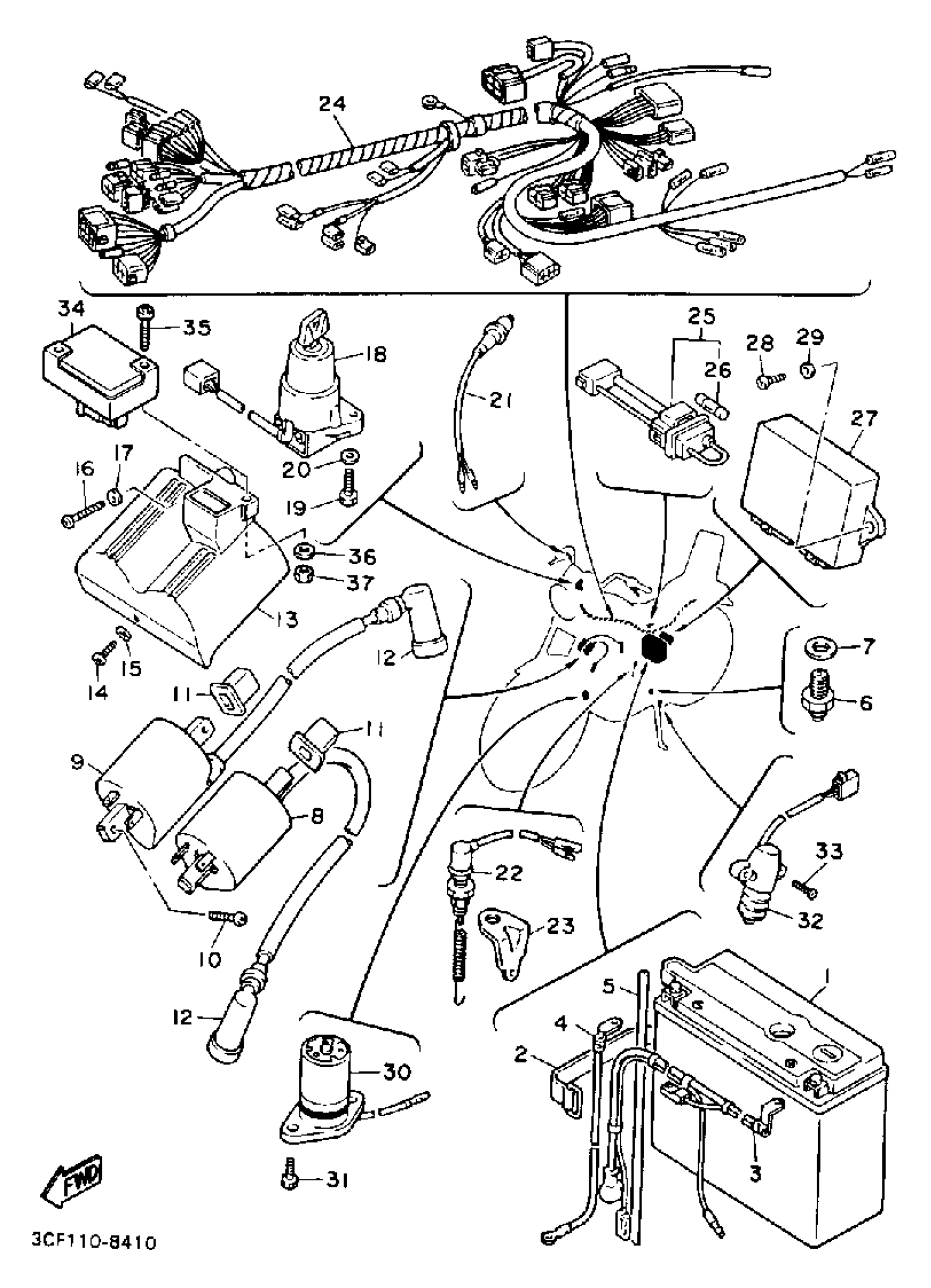

Yamaha XV1100BC (VIRAGO 1100 CA) 1991 ELECTRICAL 1 Diagram

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

BAND, BATTERY

1E6-82131-00-00

$27.99

WIRE, PLUS LEAD

42H-82115-01-00

Unavailable

WIRE, MINUS LEAD

42X-82116-00-00

Unavailable

HOSE (L1500)

90445-084J0-00

$18.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

IGNITION COIL ASSEMBLY

42X-82310-70-00

Unavailable

IGNITION COIL ASSEMBLY

42X-82320-70-00

Unavailable

SCREW, PAN HEAD

90157-05M19-00

Unavailable

DAMPER, IGNITION COIL

42X-82317-00-00

Unavailable

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

COVER,IGNITN COIL

42X-82314-01-00

Unavailable

SCREW, PAN

98517-06012-00

$3.78

WASHER(6TA)

92907-06600-00

$2.72

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

MAIN SWITCH STEERING LOCK

42H-82501-50-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

STOP SWITCH ASSY

42X-82530-02-00

Unavailable

STAY, STOP SWITCH

1FK-82539-00-00

Unavailable

WIRE HARNESS ASSEMBLY

3JK-82590-00-00

Unavailable

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

IGNITOR UNIT ASSEMBLY

3JK-82305-00-00

Unavailable

SCREW, TAPPING(JA3)

97707-60520-00

Unavailable

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

OIL LEVEL GAUGE ASSEMBLY

3JK-85720-00-00

Unavailable

BOLT, SOCKET

91314-06016-00

Unavailable

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

SCREW, FLAT

98707-05016-00

Unavailable

SENSOR, PRESSURE

1TA-82380-20-00

Unavailable

SCREW, PAN

98517-06030-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable
