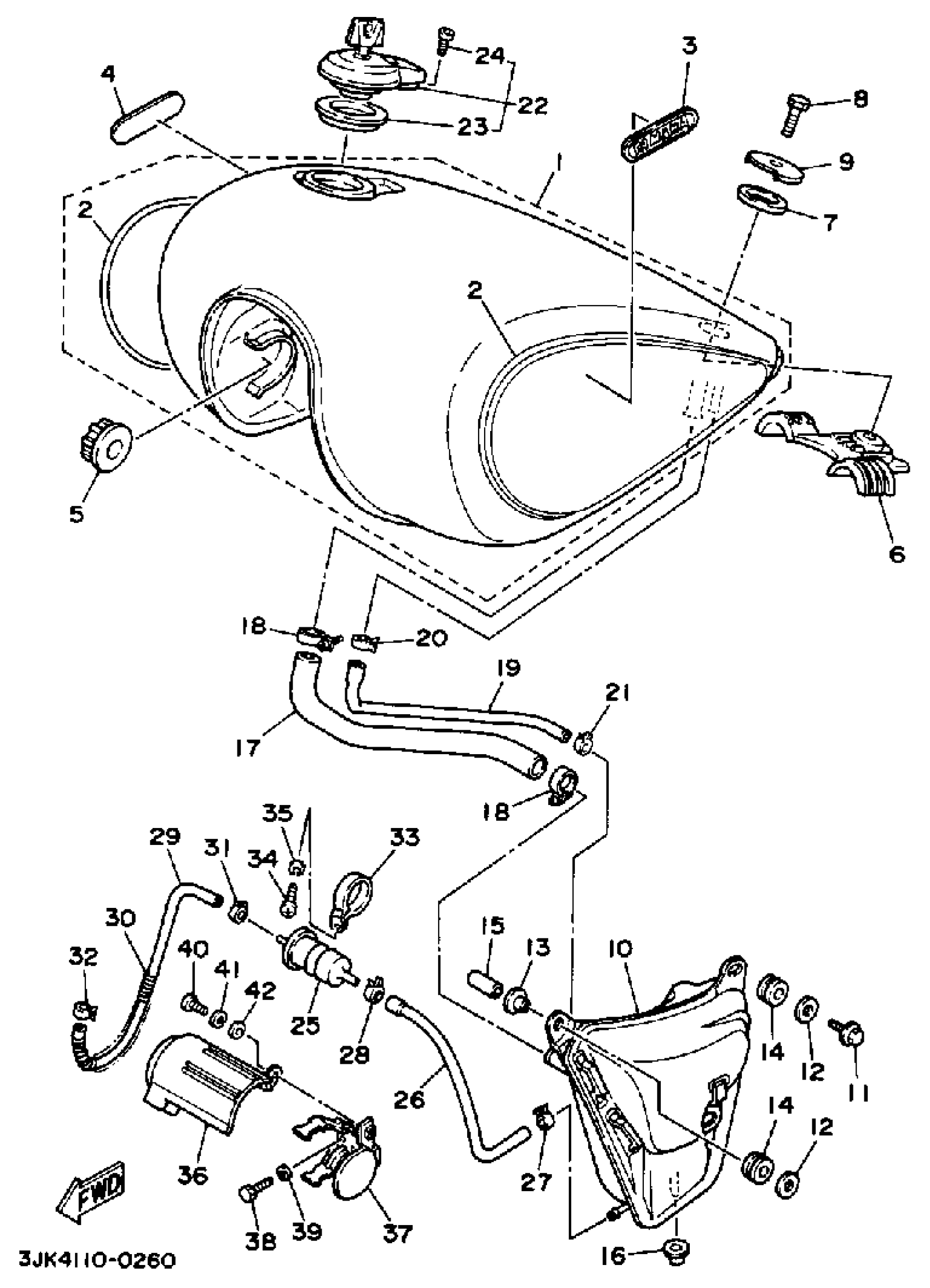

Yamaha XV1100AC (VIRAGO 1100 CA) 1990 FUEL TANK NON CALIFORNIA MODEL Diagram

#

Description
Price

1

FUEL TANK

1TE-24110-00-08

Unavailable

2

. GRAPHIC SET

3JK-24240-10-00

Unavailable

3

EMBLEM 1

1RM-24161-10-00

Unavailable

4

EMBLEM 2

1RM-24162-10-00

Unavailable

5

DAMPER, LOCATING

4H7-24181-00-00

$6.99

6

DAMPER, LOCATING 2

42X-24182-00-00

Unavailable

7

DAMPER, LOCATING 3

42X-24183-00-00

$7.99

8

BOLT, HEXAGON

97013-08016-00

$1.01

9

WASHER, SPECIAL

42X-24186-00-00

$9.99

10

SUB TANK ASSEMBLY

42H-24280-00-00

Unavailable

11

BOLT,SOCKET

91317-06020-00

Unavailable

12

WASHER, PLATE 8221447500

90201-06057-00

$5.60

13

COLLAR(42G)

90387-062L2-00

$7.49

14

GROMMET (1E5)

90480-13163-00

$7.49

15

SPACER

90560-06258-00

Unavailable

16

GROMMET(42G)

90480-10408-00

Unavailable

17

PIPE 6

42H-24316-00-00

Unavailable

18

HOSE CLAMP ASSY(4JT)

90450-28073-00

Unavailable

19

PIPE 7

42H-24317-00-00

Unavailable

20

CLIP (7K7)

90467-11044-00

Unavailable

21

CLIP(42X)

90467-10091-00

Unavailable

22

CAP ASSY

4X7-24602-10-00

Unavailable

23

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

24

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

25

FILTER ASSY

1FK-24560-10-00

Unavailable

26

PIPE, FUEL 1

42H-24311-00-00

Unavailable

27

CLIP(42X)

90467-10091-00

Unavailable

28

CLIP (7K7)

90467-11044-00

Unavailable

29

PIPE 5

42H-24315-00-00

Unavailable

30

SPRING, COMPRESSION(3JK)

90501-101J5-00

Unavailable

31

CLIP (7K7)

90467-11044-00

Unavailable

32

CLIP(42X)

90467-10091-00

Unavailable

33

CLAMP

90465-08256-00

Unavailable

34

SCREW PAN HEAD

98580-06010-00

Unavailable

35

WASHER, SPRING

92995-06100-00

Unavailable

36

COVER

42H-24452-00-00

Unavailable

37

BRACKET, FUEL PUMP

3JK-24491-00-00

Unavailable

38

BOLT, HEXAGON

97017-06012-00

Unavailable

39

WASHER, SPRING

92907-06100-00

Unavailable

40

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

WASHER, PLAIN (646)

92990-06600-00

Unavailable
