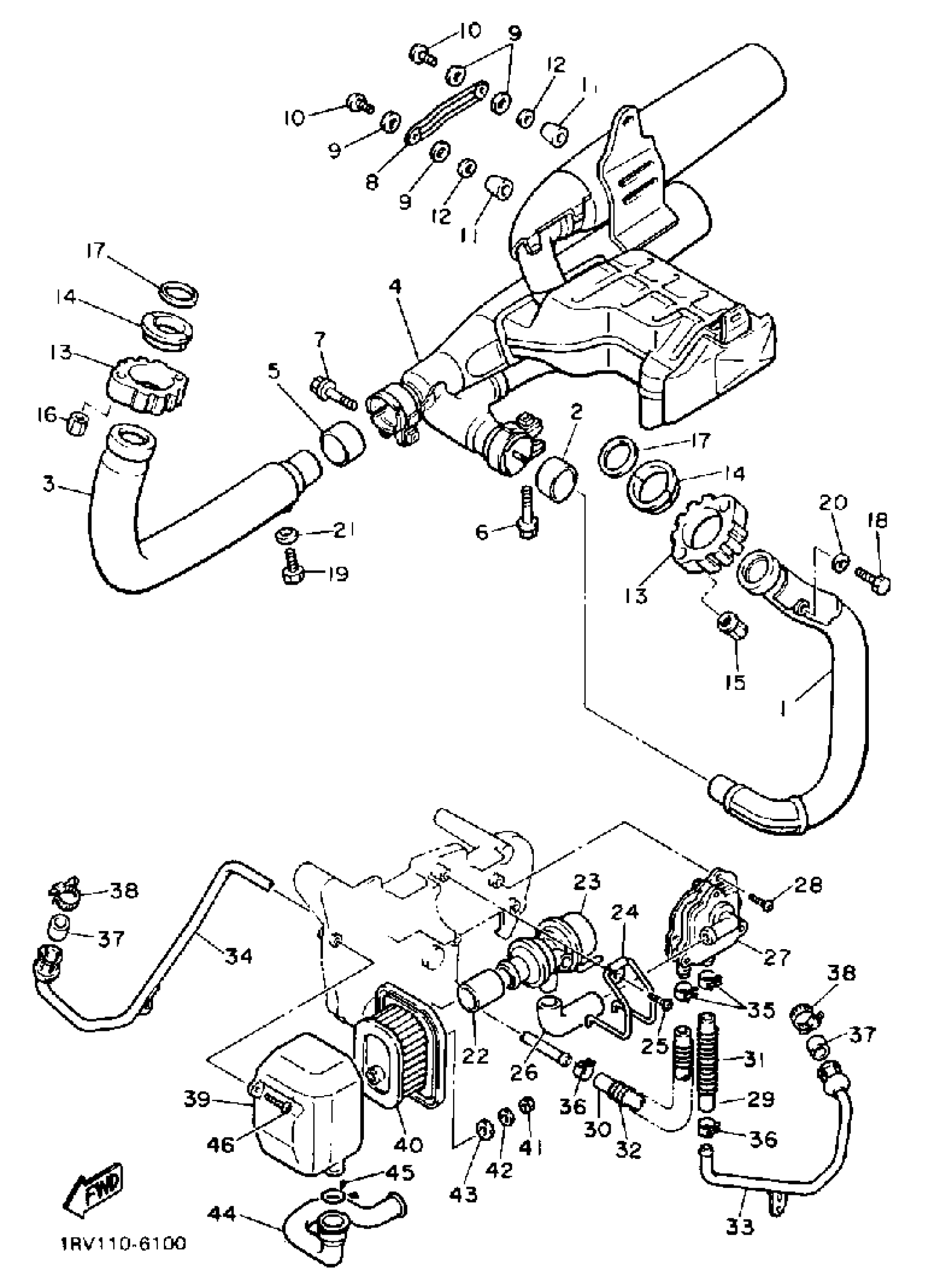

Yamaha XV1100AC (VIRAGO 1100 CA) 1990 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

42H-14611-00-00

Unavailable

2

GASKET, MUFFLER

3EG-14714-00-00

$72.99

3

PIPE, EXHAUST 2

1TA-14621-00-00

Unavailable

4

MUFFLER 1

1TA-14711-00-00

Unavailable

5

GASKET, SILENCER

3YF-14755-00-00

$34.99

6

BOLT, FLANGE

95814-08045-00

$4.29

7

BOLT, FLANGE

95814-08045-00

$4.29

8

PROTECTOR, MUFFLER 4

42X-14748-01-00

Unavailable

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

SCREW, BIND(1JK)

98980-06010-00

$9.49

11

COVER, 1

42X-1479H-00-00

Unavailable

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

NUT, RING

57A-14612-01-00

Unavailable

14

RING SILENCER 1

42X-1468A-00-00

$45.99

15

NUT (F1ZR)

90179-08813-00

$1.01

16

NUT(4KM)

90179-08673-00

Unavailable

17

GASKET, EXHAUST PIPE

3EG-14613-00-00

Unavailable

18

BOLT (11T)

90101-06576-00

Unavailable

19

BOLT (11T)

90101-06576-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

HOSE, BEND 2

42H-14882-00-00

Unavailable

23

AIR CUT VALVE ASSEMBLY

1TA-14840-00-00

Unavailable

24

CLAMP (1RV)

90462-20188-00

Unavailable

25

SCREW, PAN TAP.2

97707-60514-00

Unavailable

26

HOSE, BEND 3

42H-14883-00-00

Unavailable

27

REED VALVE ASSY

42H-14808-00-00

Unavailable

28

SCREW, PAN TAP.2

97707-60514-00

Unavailable

29

HOSE, BEND 4

42H-14884-00-00

Unavailable

30

HOSE, BEND 5

42H-14885-00-00

Unavailable

31

SPRING, COMPRESSION

90501-101J3-00

Unavailable

32

SPRING,COMPRESSION

90501-101J4-00

Unavailable

33

PIPE 1

42H-14871-01-00

Unavailable

34

PIPE 2

42H-14872-02-00

Unavailable

35

CLIP

90468-08104-00

Unavailable

36

CLIP(42G)

90467-16098-00

Unavailable

37

GASKET, MUFFLER

42H-14714-10-00

Unavailable

38

BAND (MADE IN CANADA)

90460-15227-00

Unavailable

39

CASE, AIR CLEANER

42H-14857-00-00

Unavailable

40

CAP, CASE

42H-14858-00-00

Unavailable

41

NUT, HEXAGON (663)

95380-05600-00

Unavailable

42

. WASHER, PLAIN

92990-05200-00

Unavailable

43

WASHER, PLATE (463)

90202-05057-00

Unavailable

44

HOSE, BEND 1

1TA-14881-00-00

Unavailable

45

CLIP (21V)

90467-22080-00

Unavailable

46

SCREW, PAN TAP.2

97707-60514-00

Unavailable
