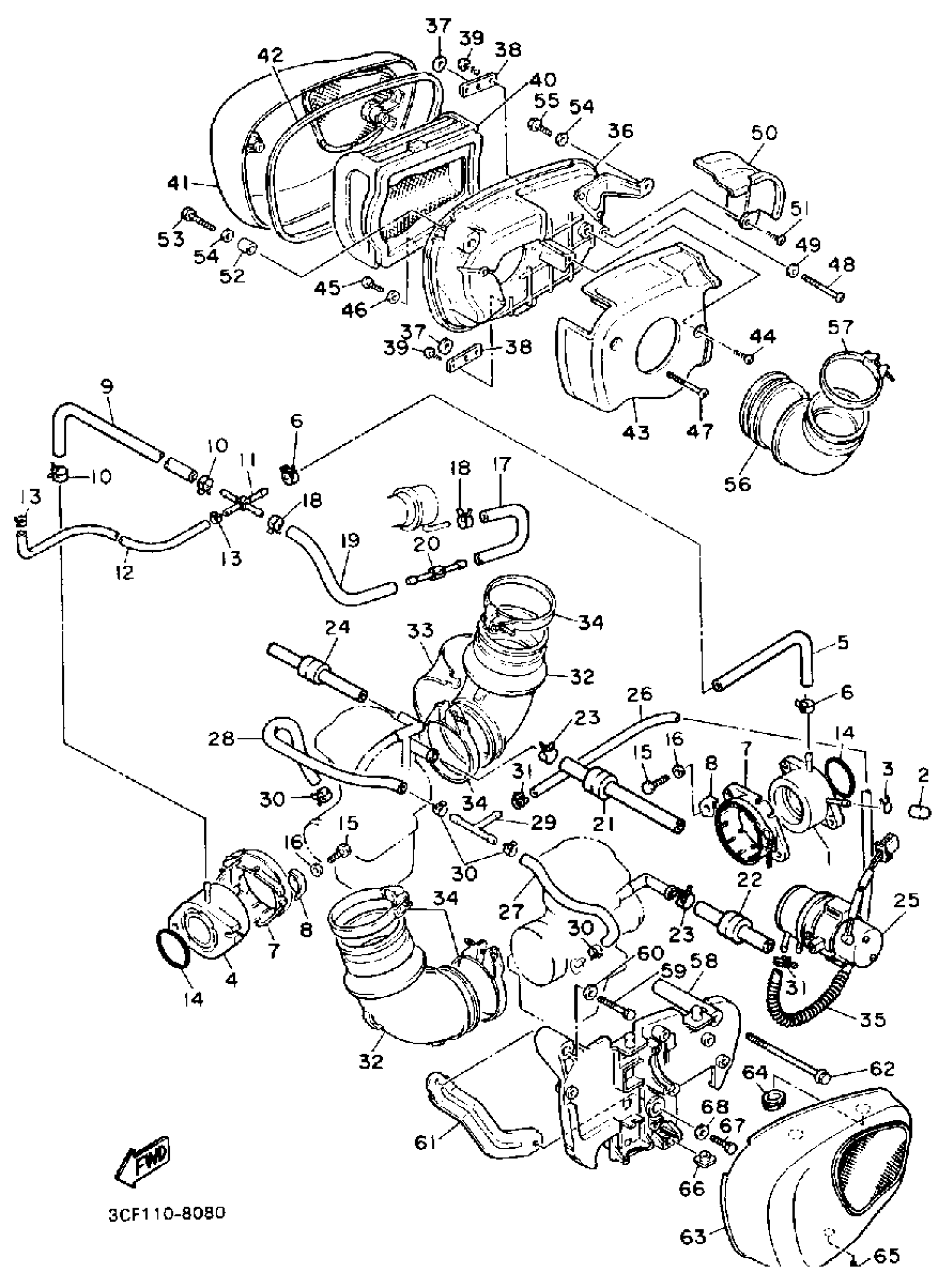

Yamaha XV1100AC (VIRAGO 1100 CA) 1990 AIR FILTER Diagram
#
5
HOSE, VACUUM SENSING 1
3CG-13542-00-00
Unavailable
7
COVER, MANIFOLD
42X-13564-01-00
Unavailable
8
WASHER
42X-13578-00-00
Unavailable
9
HOSE, VACUUM SENSING 2
42X-13544-00-00
Unavailable
11
JOINT
1TA-13595-00-00
Unavailable
12
HOSE, VACUUM SENSING 3
42H-13532-00-00
Unavailable
16
WASHER(6TA)
92907-06600-00
Unavailable
17
HOSE, VACUUM SENSING 5
1TA-13534-00-00
Unavailable
19
HOSE, VACUUM SENSING 5
1TA-13535-00-00
Unavailable
20
NOZZLE
41R-14489-00-00
Unavailable
21
PIPE,AIRVENT
3CG-14197-00-00
Unavailable
22
PIPE,AIRVENT
3CG-14197-00-00
Unavailable
23
CLIP (5K4)
90467-14057-00
Unavailable
24
PIPE
3CG-14396-00-00
Unavailable
25
FUEL PUMP COMP.
42H-13907-01-00
Unavailable
26
PIPE, FUEL 1
42H-13971-00-00
Unavailable
27
PIPE
1TA-14349-00-00
Unavailable
28
PIPE 1
1TA-14348-00-00
Unavailable
29
WAY 3(1AF)
90413-07023-00
Unavailable
30
CLIP(42X)
90467-10091-00
Unavailable
31
HOSE CLAMP ASSY
90450-12002-00
Unavailable
32
JOINT, AIR CLEANER 1
10L-14453-02-00
Unavailable
33
COVER, JOINT
10L-14407-00-00
Unavailable
34
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
35
SPRING,COMPRESSION
90501-100F8-00
Unavailable
36
AIR CLEANER CASE ASSEMBLY
42X-14401-01-00
Unavailable
37
WASHER, PLAIN (646)
92990-04600-00
Unavailable
38
PLATE
42X-14477-00-00
Unavailable
39
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
40
ELEMENT, AIR CLEANER
42X-14451-00-00
Unavailable
41
CAP, CLEANER CASE 2
1RM-14422-00-00
Unavailable
42
SEAL
42X-14452-00-00
Unavailable
43
COVER, CLEANER CASE 1
1TA-1441A-00-00
Unavailable
44
SCREW, PAN TAP.2
97707-50508-00
Unavailable
45
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
46
WASHER, PLAIN (646)
92990-05600-00
Unavailable
47
SCREW, PAN
98507-06080-00
Unavailable
48
SCREW, PAN
98507-06050-00
Unavailable
49
WASHER(6TA)
92907-06600-00
Unavailable
50
COVER, CLEANER CASE 2
1TA-1441E-00-00
Unavailable
51
SCREW, PAN TAP.2
97707-50508-00
Unavailable
52
COLLAR (1T2)
90387-07598-00
Unavailable
53
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
54
WASHER(6TA)
92907-06200-00
Unavailable
55
BOLT,SOCKET
91317-06012-00
Unavailable
56
PIPE, JOINT
42X-14485-00-00
Unavailable
57
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
58
PLATE, AIR CLEANER
42X-14663-02-00
Unavailable
59
BOLT, FLANGE
95822-06025-00
Unavailable
60
WASHER(6TA)
92907-06200-00
Unavailable
61
PLATE, CLEANER CASE FITTING
42X-14484-00-00
Unavailable
62
BOLT, SOCKET
91314-06090-00
Unavailable
63
COVER 1
1RM-14603-00-00
Unavailable
64
GROMMET 654427240000
90480-14074-00
Unavailable
65
BOLT, FLANGE
95817-06014-00
Unavailable
66
PLATE, CLEANER CASE FITTING
12R-14484-01-00
Unavailable
67
BOLT,SOCKET
91317-06035-00
Unavailable
68
WASHER(6TA)
92907-06200-00
Unavailable
