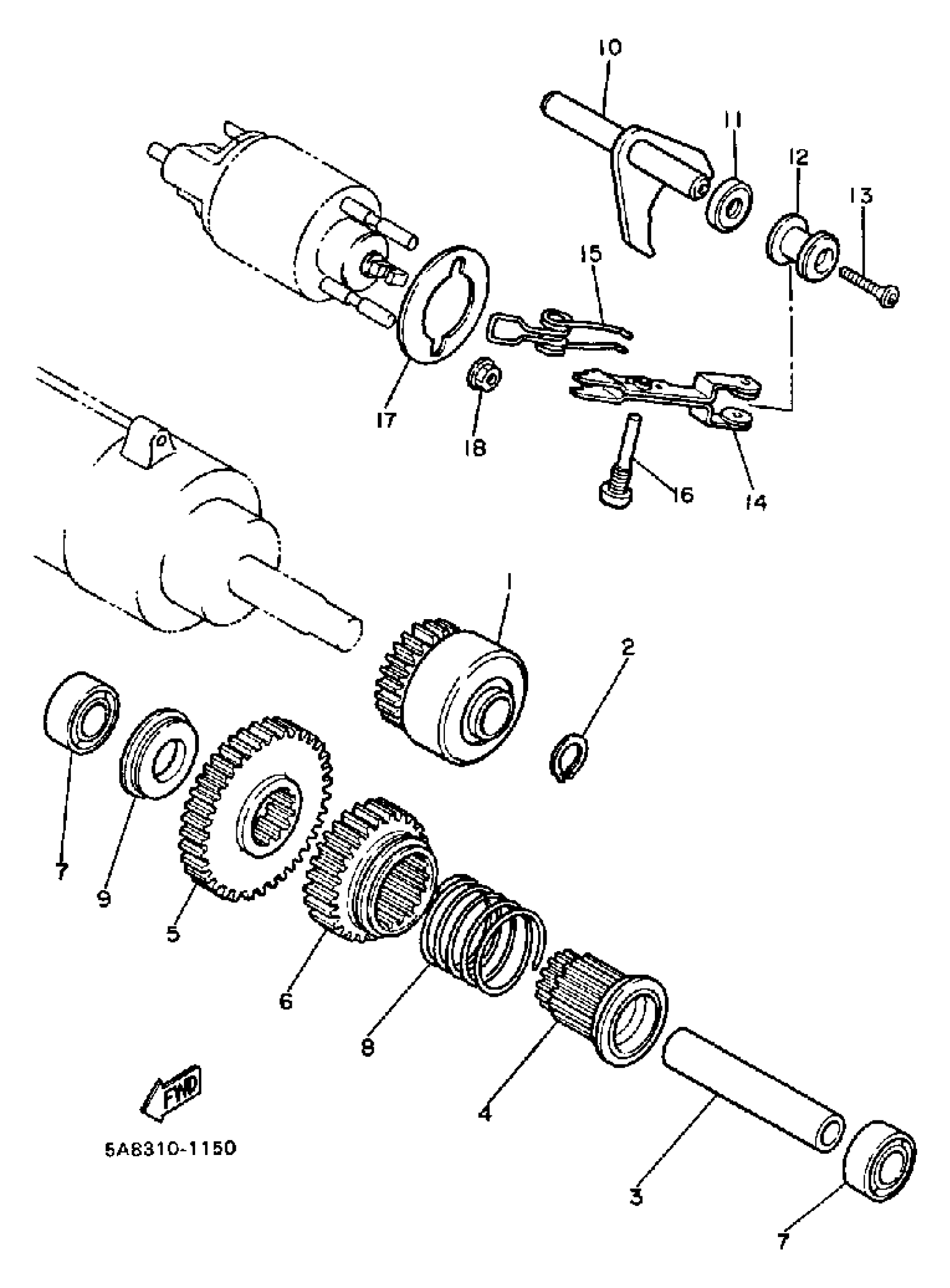

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 STARTER CLUTCH Diagram

#

Description
Price

1

STARTER CLUTCH ASSEMBLY

5A8-15570-00-00

Unavailable

2

CIRCLIP(13M)

99009-13400-00

$9.49

3

SHAFT 1

4X7-15521-00-00

Unavailable

4

WHEEL, STARTER (23T)

5A8-15524-00-00

Unavailable

5

GEAR, IDLER 1

4X7-15512-00-00

Unavailable

6

GEAR, IDLER SET

3LP-W1551-01-00

Unavailable

7

COLLAR (4X7)

90387-172E5-00

Unavailable

8

SPRING, COMPRESSION (4X7)

90501-15636-00

$16.99

9

COLLAR (4X7)

90387-170E5-00

$15.99

10

DRIVE LEVER ASSEMBLY

5A8-15550-00-00

Unavailable

11

OIL SEAL (5A8)

93102-10247-00

Unavailable

12

LEVER, DRIVE

5A8-15556-00-00

Unavailable

13

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

14

LEVER, DRIVE

5A8-15556-00-00

Unavailable

15

SPRING, TORSION

90508-26494-00

Unavailable

16

SCREW (5A8)

90149-08166-00

Unavailable

17

GASKET

3EG-15568-00-00

Unavailable

18

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
