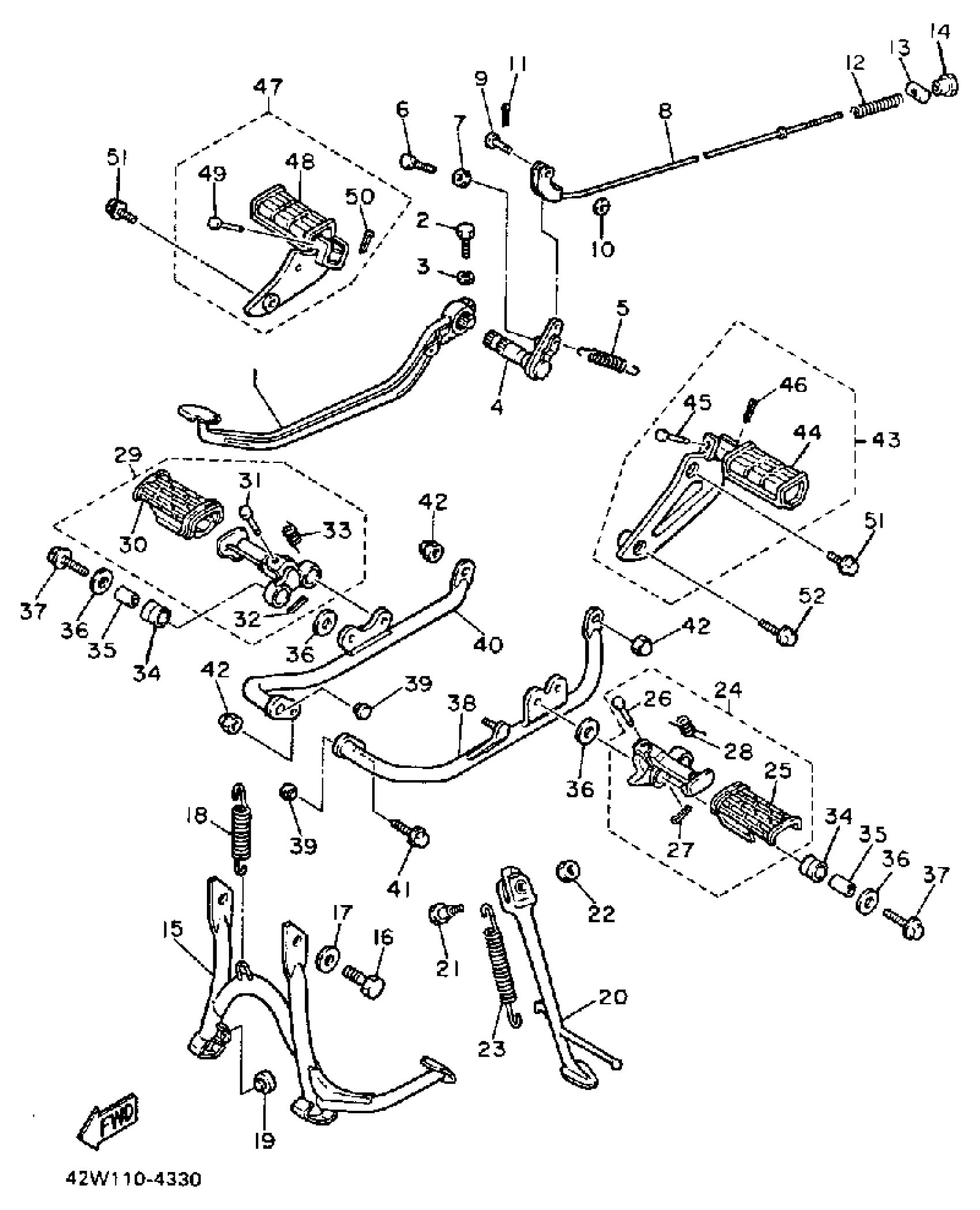

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1RM-27211-00-93

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

42X-27212-01-00

Unavailable

5

SPRING, TENSION (2X4)

90506-20192-00

$7.49

6

BOLT (3Y2)

90101-06478-00

$4.15

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

ROD, BRAKE

42X-27231-02-00

Unavailable

9

PIN, CLEVIS (24X)

90240-06103-00

$7.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

PIN, COTTER

91490-20025-00

$1.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT, WING (1K5)

90175-06013-00

$4.88

14

NUT (25K)

90179-06411-00

$8.49

15

STAND, MAIN

42X-27111-00-R4

Unavailable

16

BOLT,HEXAGON

97017-10016-00

Unavailable

17

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

18

SPRING, TENSION (1T5)

90506-35149-00

Unavailable

19

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

20

STAND, SIDE

42X-27311-00-93

Unavailable

21

BOLT

90109-10473-00

Unavailable

22

NUT (682)

95380-10700-00

Unavailable

23

SPRING (460)

90507-29009-00

Unavailable

24

FRT FOOTREST ASSEMBLY L (LH)

42X-27410-00-93

Unavailable

25

. COVER, FOOTREST

42X-27413-00-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

SPRING, TORSION

(90508-20663-00)

Unavailable

29

FRT FOOTREST ASSEMBLY R (R.H)

42X-27420-00-93

Unavailable

30

COVER, FOOTREST

26H-27413-02-00

Unavailable

31

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

32

PIN, COTTER

91490-25020-00

Unavailable

33

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

34

DAMPER, FOOTREST

4X7-27414-00-00

Unavailable

35

COLLAR

90387-107A7-00

Unavailable

36

WASHER, PLATE (4X7)

90201-105A2-00

Unavailable

37

BOLT(3BM)

90109-100G0-00

Unavailable

38

BAR, FOOTREST 1

42X-27471-00-00

Unavailable

39

PLUG (341-26329-00)

90338-09012-00

Unavailable

40

BAR, FOOTREST 2

42X-27472-00-00

Unavailable

41

BOLT, WASHER BASED (2H7)

90105-10105-00

Unavailable

42

NUT, CROWN(2GG)

90176-10075-00

Unavailable

43

RR FOOTREST ASSY 1

42X-27430-02-00

Unavailable

44

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

45

PIN, CLEVIS

91702-06038-00

Unavailable

46

PIN, COTTER

91490-16020-00

Unavailable

47

RR FOOTREST ASSEMBLY 2

42X-27440-01-00

Unavailable

48

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

49

PIN, CLEVIS

91702-06038-00

Unavailable

50

PIN, COTTER

91490-16020-00

Unavailable

51

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

52

BOLT, FLANGE (3JPE)

95024-08045-00

Unavailable
