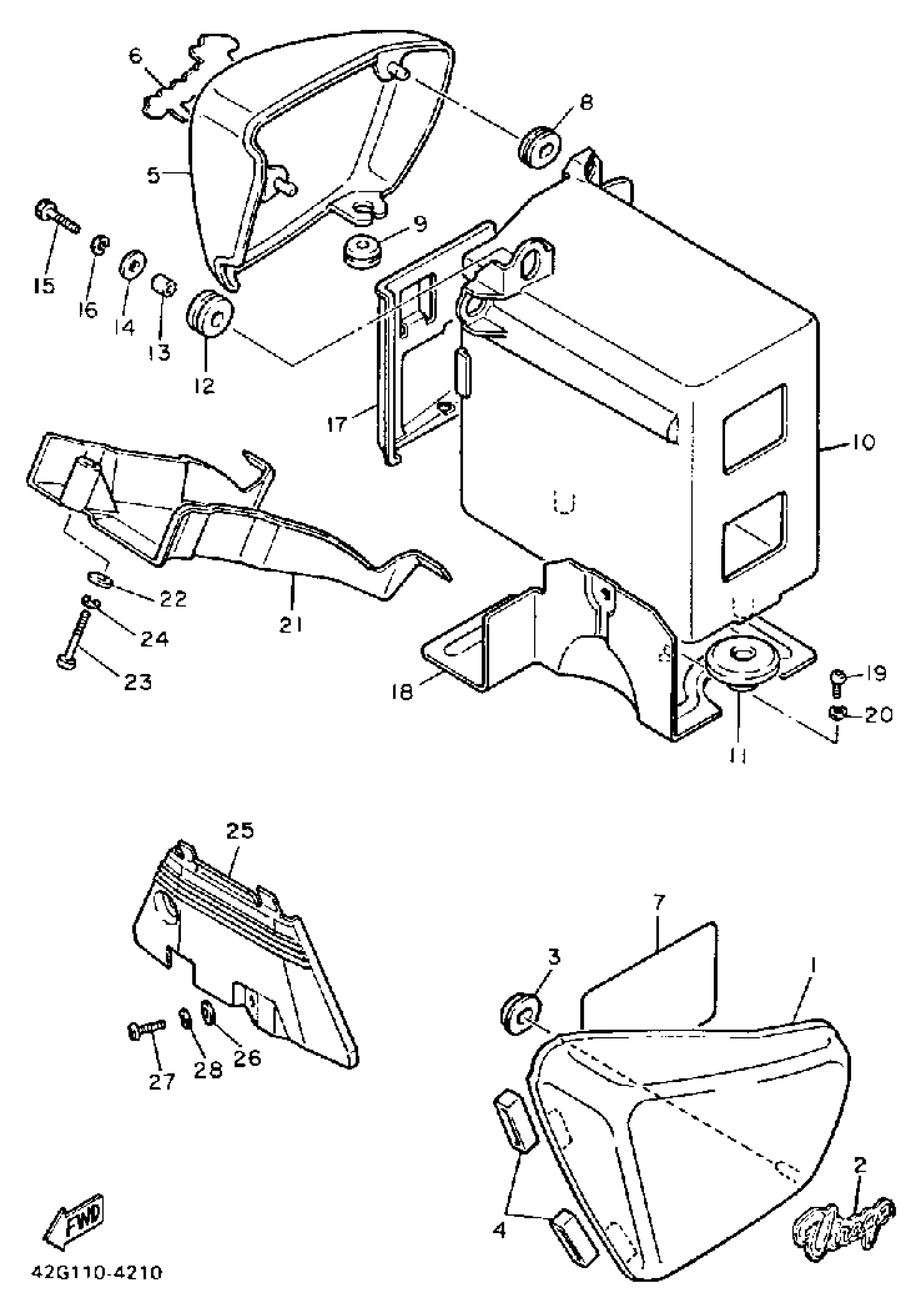

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 SIDE COVER XV1000L LC Diagram

#

Description
Price

1

COVER, SIDE 1

42X-21711-00-1W

Unavailable

2

EMBLEM 2

42X-21782-00-00

Unavailable

3

GROMMET(41Y)

90480-01401-00

$5.29

4

DAMPER, SIDE COVER

466-21717-00-00

$7.68

5

COVER, SIDE 2

42X-21721-00-1W

Unavailable

6

EMBLEM 2

42X-21782-00-00

Unavailable

7

PLATE, SPEC (L)

42G-21683-70-00

Unavailable

7

PLATE, SPEC

(42H-21683-50-00)

Unavailable

8

GROMMET(41Y)

90480-01401-00

$5.29

9

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

10

BOX, TOOL

42X-21171-00-00

Unavailable

11

GROMMET(42X)

90480-20384-00

$4.14

12

GROMMET (2N3)

90480-16233-00

$6.35

13

COLLAR

90387-06113-00

$9.81

14

WASHER, PLATE (J10)

90201-06697-00

$5.75

15

BOLT, HEXAGON

97017-06020-00

Unavailable

16

WASHER, SPRING

92995-06100-00

$2.95

17

LID

42X-28185-00-00

Unavailable

18

COVER

42X-2172W-02-00

Unavailable

19

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

20

WASHER, SPRING

92995-06100-00

$2.95

21

PLATE

42X-2176E-00-00

Unavailable

22

WASHER, PLATE

90201-06049-00

$3.14

23

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

24

WASHER, SPRING

92995-06100-00

$2.95

25

COVER

42X-2117F-00-00

Unavailable

26

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

27

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

28

WASHER, SPRING

92907-06100-00

Unavailable
