1984 Yamaha Virago 1000 CA (XV1000LC) Shift Shaft Diagram

← All diagrams

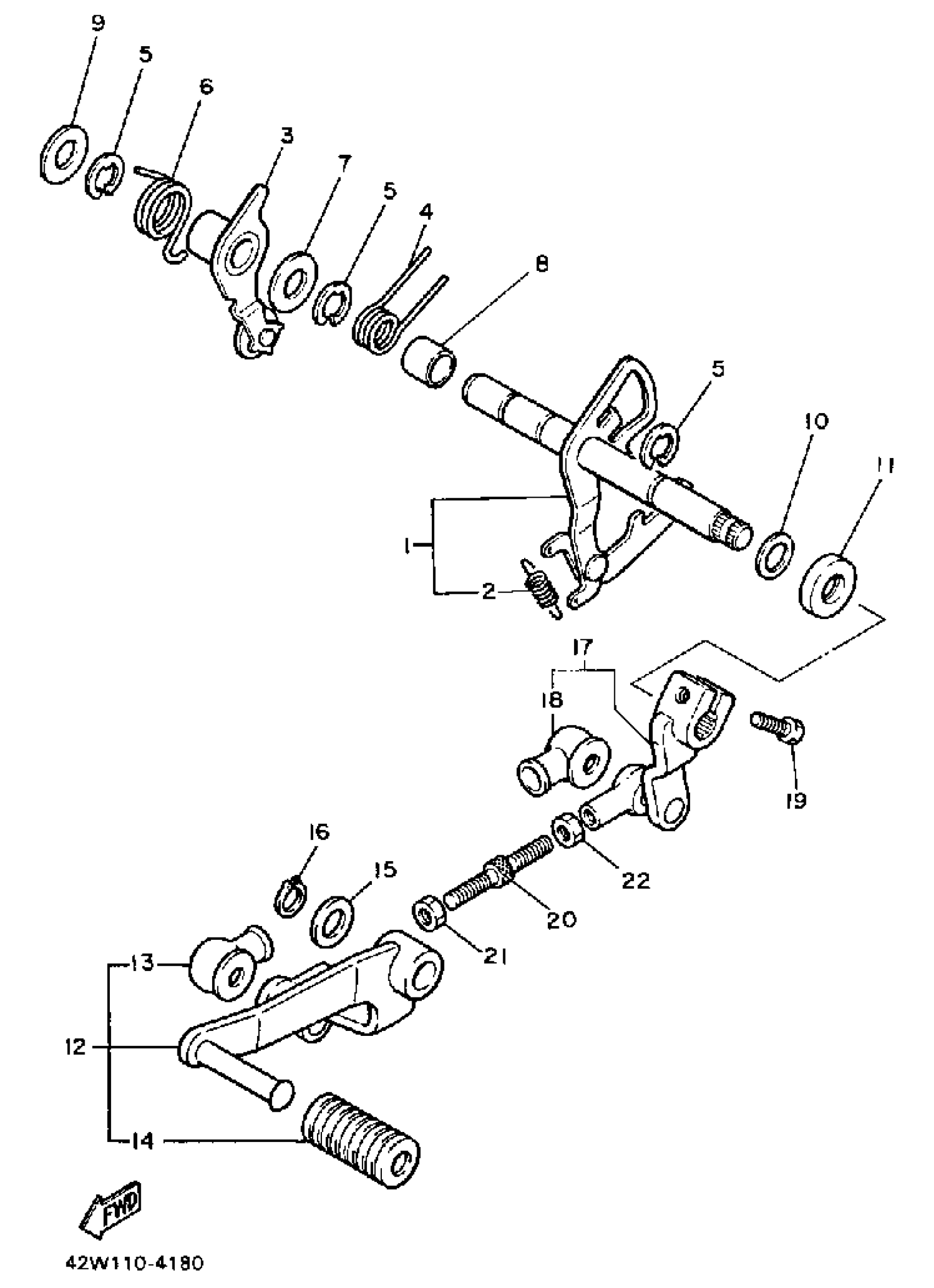

Find the part on the Shift Shaft diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha Virago 1000 CA (XV1000LC) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSEMBLY

4X7-18120-01-00

1
Out of stock

2

SPRING, TENSION (4H7)

90506-08227-00

1

$2.85

In stock

3

STOPPER LEVER ASSY

5EL-18140-00-00

—

$42.09

In stock

4

SPRING, TORSION (4H7)

90508-32535-00

1

$8.43

In stock

5

CIRCLIP

99006-10600-00

1

$6.91

In stock

6

SPRING, TORSION (4X7)

90508-29531-00

1
Out of stock

7

WASHER

90201-12588-00

1

$6.37

In stock

8

COLLAR

90387-12033-00

1

$6.51

In stock

9

WASHER

90201-12588-00

1

$6.37

In stock

10

WASHER PLATE 164185720000

90201-12166-00

1

$6.29

In stock

11

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

12

SHIFT PEDAL ASSY

42X-18110-01-00

—
Out of stock

13

COVER, DUST

2H9-18154-00-00

1
Out of stock

14

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

15

WASHER, PLATE (5K7)

90201-124E4-00

1

$6.43

In stock

16

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

17

ARM, SHIFT

42X-18112-01-00

1
Out of stock

18

COVER, DUST

2H9-18154-00-00

1
Out of stock

19

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

20

ROD, SHIFT

42X-18115-00-00

—
Out of stock

21

NUT (2H9)

90170-06228-00

—

$5.20

In stock

22

NUT(650)

95380-06700-00

—

$6.17

In stock
