1984 Yamaha Virago 1000 CA (XV1000LC) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

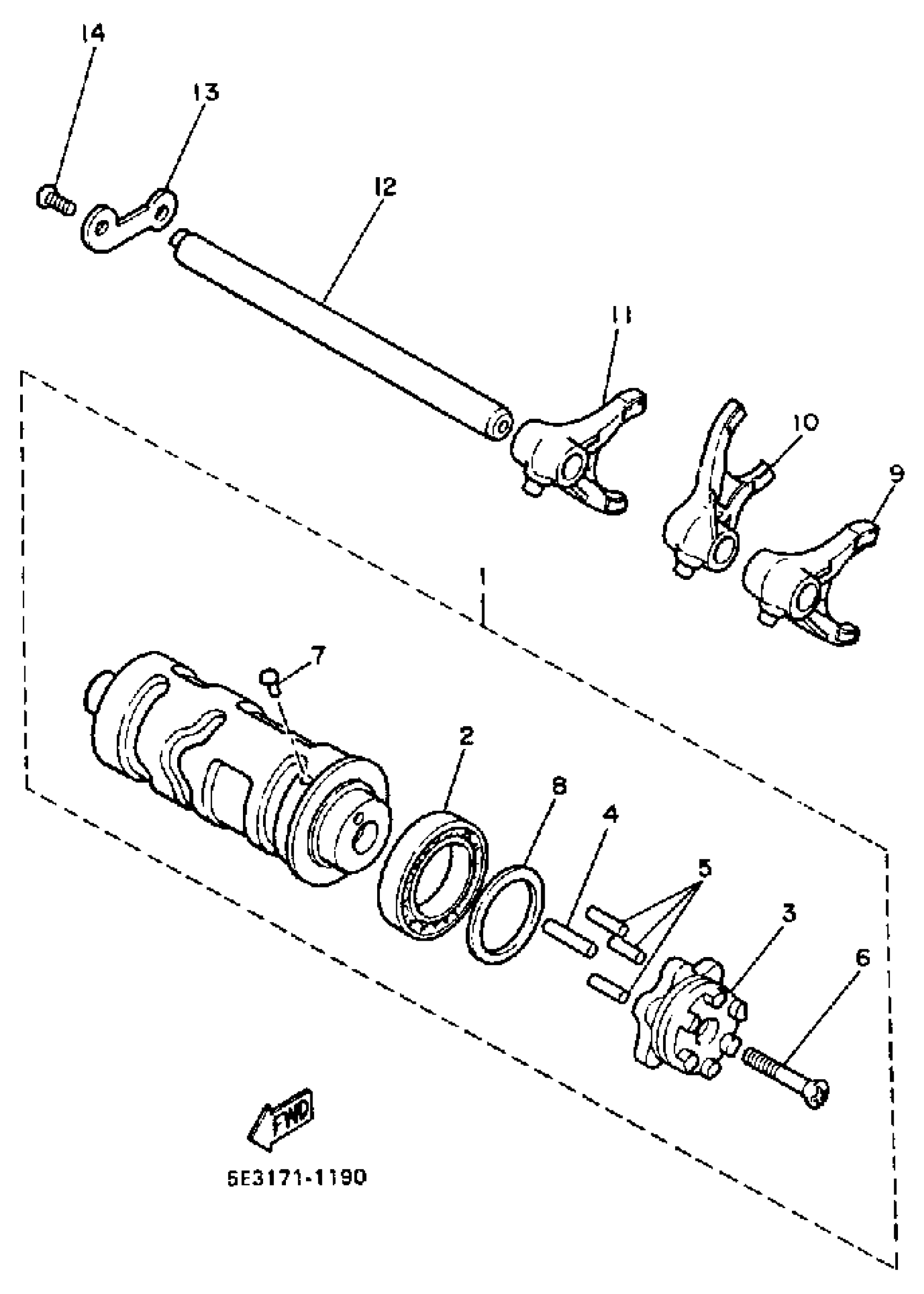

1984 Yamaha Virago 1000 CA (XV1000LC) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

4X7-18540-01-00

1
Out of stock

2

BRG,R-B (4X7)

93306-90602-00

1

$40.58

In stock

3

. SEGMENT

4G0-18185-01-00

1
Out of stock

4

PIN, DOWEL (4H7)

93604-20156-00

1

$2.22

In stock

5

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

6

SCREW, FLAT

98707-05035-00

1

$6.69

In stock

7

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock

8

WASHER,PLATE

90201-30297-00

1
Out of stock

9

FORK, SHIFT 1

5EL-18511-00-00

—

$46.94

In stock

10

FORK, SHIFT 2

5EL-18512-00-00

—

$46.66

In stock

11

FORK, SHIFT 3

5EL-18513-00-00

—

$46.83

In stock

12

BAR, SHIFT FORK GUIDE 1

4X7-18531-00-00

1
Out of stock

13

STOPPER, SHIFT BAR

(4X7-18536-00-00)

1
Out of stock

14

SCREW, FLAT

98707-06014-00

1
Out of stock
