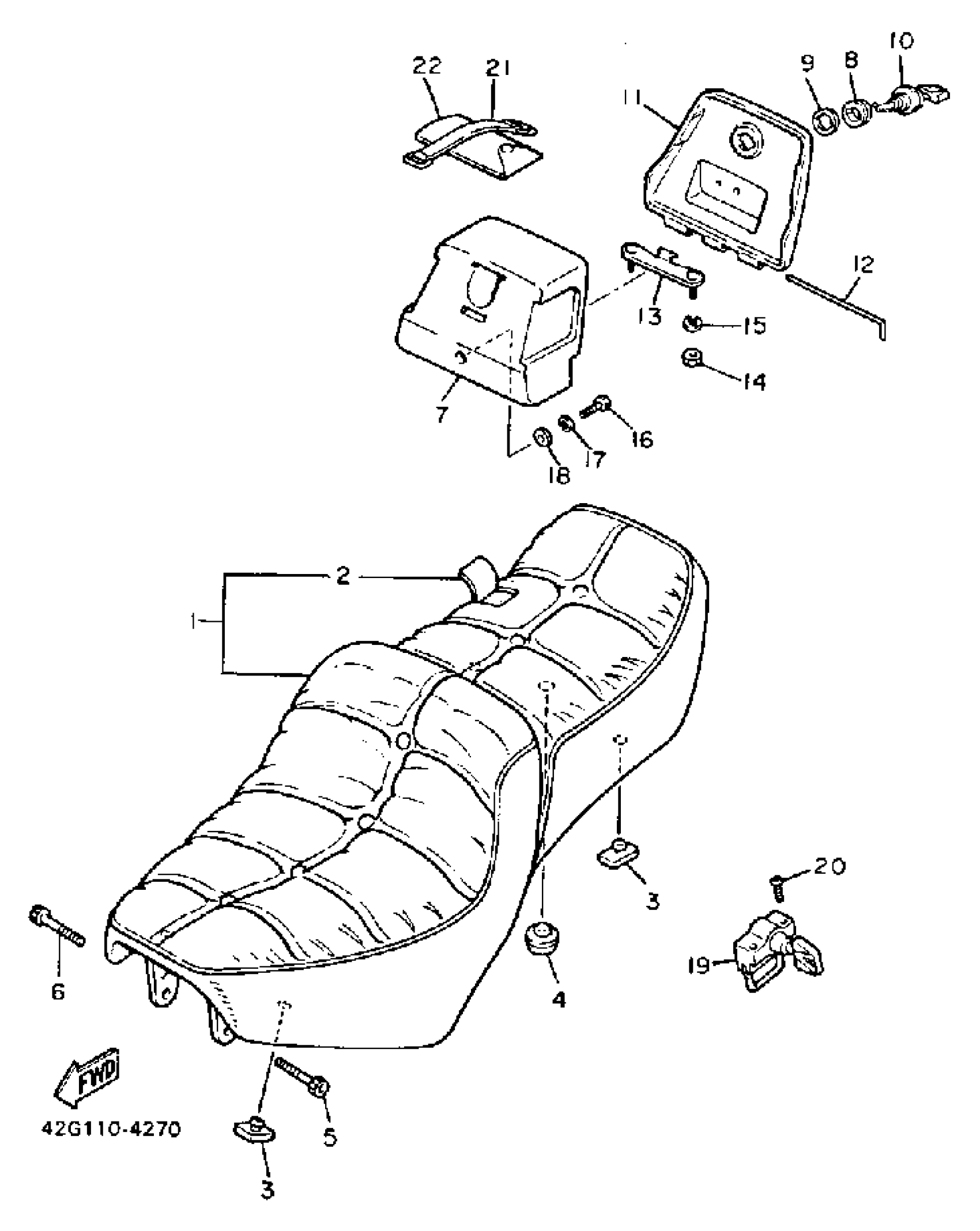

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

3CF-24730-10-00

Unavailable

2

. COVER, SEAT (42H-24731-00)

42H-24731-01-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$10.99

4

PAD, SEAT

1L9-24741-00-00

$9.99

5

BOLT,SOCKET

91317-06016-00

$1.25

6

BOLT,SOCKET

91317-06055-00

$4.19

7

BOX 1

42X-2473R-00-00

Unavailable

8

GROMMET (1E6)

90480-24186-00

$8.49

9

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

10

SIDE COVER LOCK ASSY

5A8-21708-00-00

Unavailable

11

LID 1

42X-2473T-00-00

Unavailable

12

PIN, HINGE

42X-2177K-00-00

Unavailable

13

BOLT 1

42X-21631-00-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

19

HELMET HANGER ASSEMBLY

42X-21308-00-00

Unavailable

20

SCREW, FLAT

98707-05020-00

Unavailable

21

BAND, TOOL

5H9-21376-00-00

Unavailable

22

TOOL KIT

5A8-W2810-01-00

Unavailable
